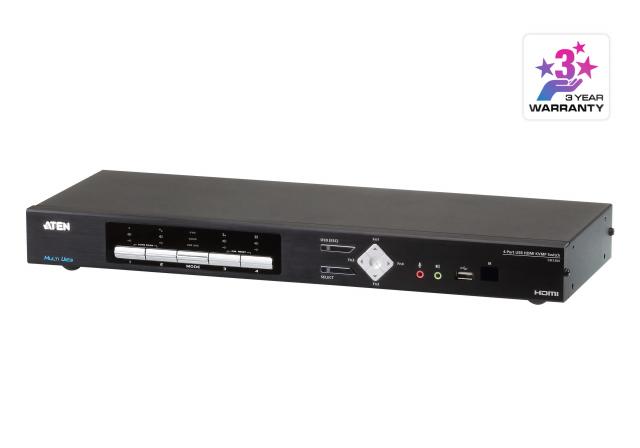

ATEN CM1284, 4-Port USB 4K HDMI Multi-View KVMP Switch

- 4-Port USB HDMI Multi-View KVMP switch with Dual Display. One display is with Quad and PiP/PbP/PoP modes, and the
  other is with full-screen mode
- Easily resize and / or reposition any PiP or PbP to suit users’ viewing needs; Supports superior video quality –
  up to 4K DCI @ 30Hz(4096 x 2160 @ 30Hz) ; YCbCr 4 :2 : 2
- DCC (Daisy Chain Control) – Controls up to 3 additional CM1284 units from a single console; Cascade up to 2 levels –
  Controls up to 16 computers (with up to 4 x 4 Multi-view mode)
- Boundless Switching – simply move the mouse cursor across windows to switch to other video sources even among the
  daisy chained installation

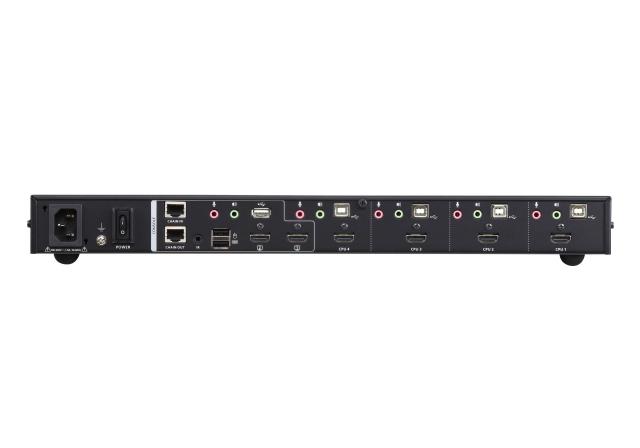

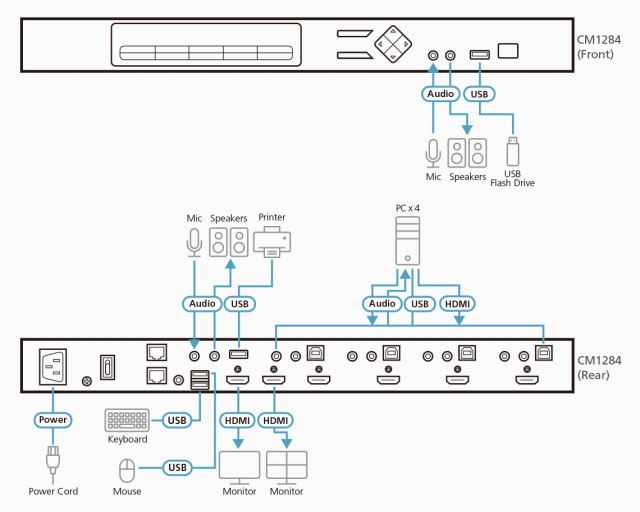

Connectors:
Console Ports: 2 x USB Type A Female
               2 x HDMI Female (Black)
               2 x 3.5mm Audio Jack Female (Green; 1 x front panel,1 x rear panel)
               2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
               2 x RJ-45
KVM (Computer) Ports:  4 x USB Type B Female (White)
                       4 x HDMI Female (Black)
                       4 x 3.5mm Audio Jack Female (Green)
                       4 x 3.5mm Audio Jack Female (Pink)
Power:  1 x IEC320 Jack
USB Hub:   2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)

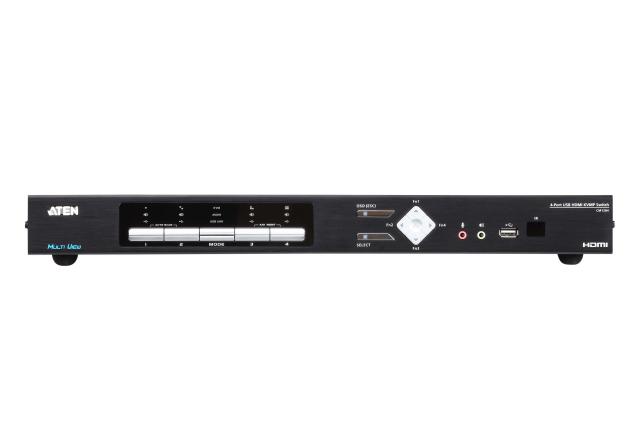

Switches:
Selected:   11 x Pushbuttons
Emulation:
Keyboard / Mouse:   USB
Video:   4096 x 2160 @ 30 Hz
LEDs:
  KVM:   4 (Orange)
  Audio:   4 (Green)
  USB:   4 (Green)
