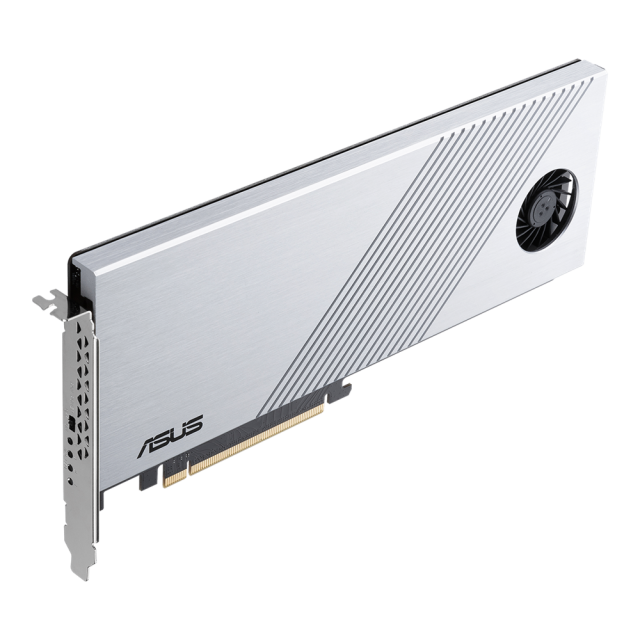

ASUS Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0)

ASUS Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0) supports four NVMe M.2 (2242/2260/2280/22110) devices up to 256 Gbps

RAID on CPU

The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel® X299, Z390, Z370 and future platforms' RAID-on-CPU function, and supports PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with up to four M.2 SSDs*.

*M.2 SSD support dependent on CPU and motherboard design. Please check the specifications and user manual of your motherboard. Update to the latest BIOS and set up PCIe bifurcation settings before using the NVMe RAID function.

• Two-phase power solution with up to 14-watt output supports the latest NVMe drives
• Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability

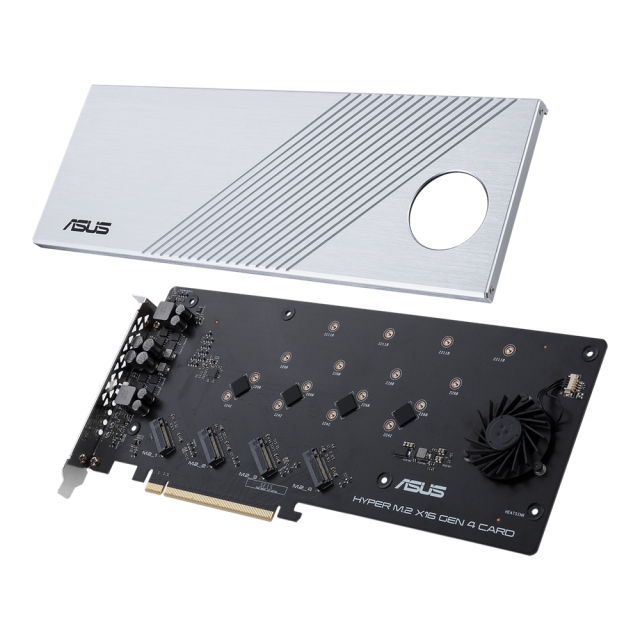

• Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2 drives, with up to 256 Gbps bandwidth for smooth data transfers
• Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and supports Intel® platform RAID-on-CPU functions
• Also support other vendors’ motherboards via PCIe bifurcation in BIOS setting

Maximum numbers of M.2 SSD support will vary, depending on different CPU specs and PCIe bifurcation settings in different ASUS motherboards.
Please see the FAQ link for full compatible lists and further information:
https://www.asus.com/support/FAQ/1037507
