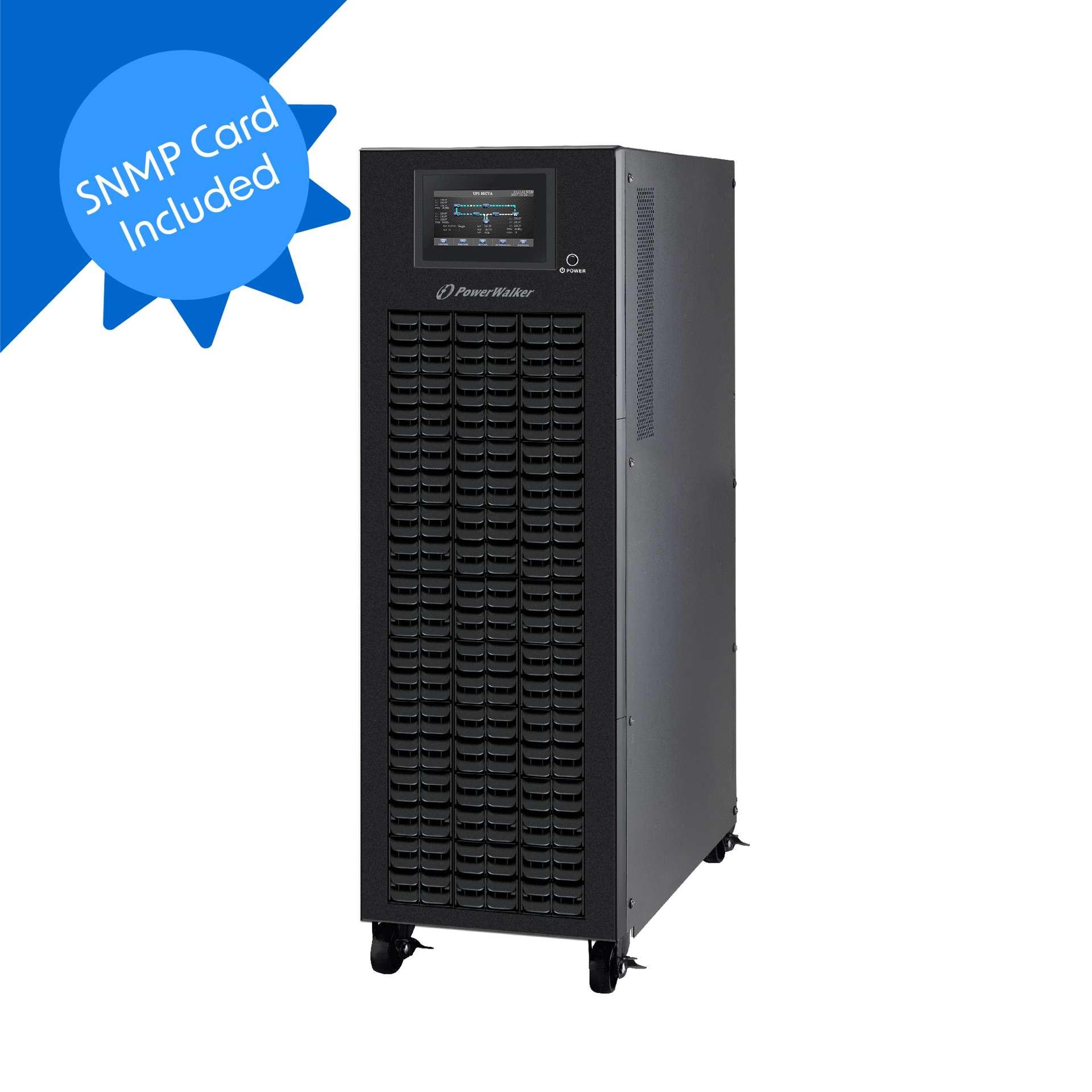

UPS POWERWALKER VFI 20K CPG PF1 3/3 BI (SNMP card included)
Ref. number: POWER-UPS-VFI20000CPG
Price: € 4140.00 / 8097.14 лв.
Specifications
| Manufacturer | POWERWALKER |
| Warranty | 24 months |
| Product code | 10122154 |
| Barcode | 4260074981346 |
| Type |
Online, Three Phase
|
| Input Voltage |
110-300 VAC @ 0-60% load
176-300 VAC @ 80-100% load
305-478 VAC (3-phase) @100% load 190-520 VAC (3-phase) @50% load
|
| Capacity |
20 000 VA/ 20 000 W
|
| Nominal Output Voltage |
3x 400V (3Ph+N); (208)/220/230/240VAC(Ph-N)
|
| Batteries |
12V/9Ah
|
| Sound Alarm |
Yes
|
| Overload Protection |
Yes
|
| Input Connections |
Terminal
|
| Output Connections |
Terminal Output
|
| Front Panel |
LCD
|
| Waveform |
Pure Sine Wave
|
| Number of batteries |
32
|
| Communication |
Dry contact, USB Type B – for Monitoring Software, RS-232, Management Card Slot
|
| Recharge Time |
9 hours to 90%
|
| Noise Level |
< 60dB
|
| Frequency Range(Output) |
±0,1Hz
|
| Alarm |
Yes
|
| Dimension |
627 x 250 x 827 mm, 139 kg
|
| Backup Time |
Full load - 1,5 min, Half load - 6,5 min
|
Description
- Unity Power Factor 1.0 (kVA = kW)
- Very Low Total Harmonic Distortion on Output Voltage
- Three-Phase or Single-Phase Input
- Parallel operation, up to 3 units
- Dual input and Adjustable Charging Current
- SNMP Manager included!
- A Touch-Panel was added to the Unit!
The PowerWalker VFI CPG 3/3 PF1 series is a professional commercial solution built in double conversion Online technology with power factor 1.0. Equipped with three-level inverter topology, it results in high efficiency, reaching 95.5% in Line Mode and even 98.5% in ECO Mode. The series ensures low harmonic distortions and precise voltage regulation (1%). All phases have Active Power Factor Correction.
Thanks to its modern design, the VFI CPG series reaches a very high power density (kVA output in relation to the size/volume of the unit). All models of this series offer generator support, dual input and allow parallel operation up to three units.
