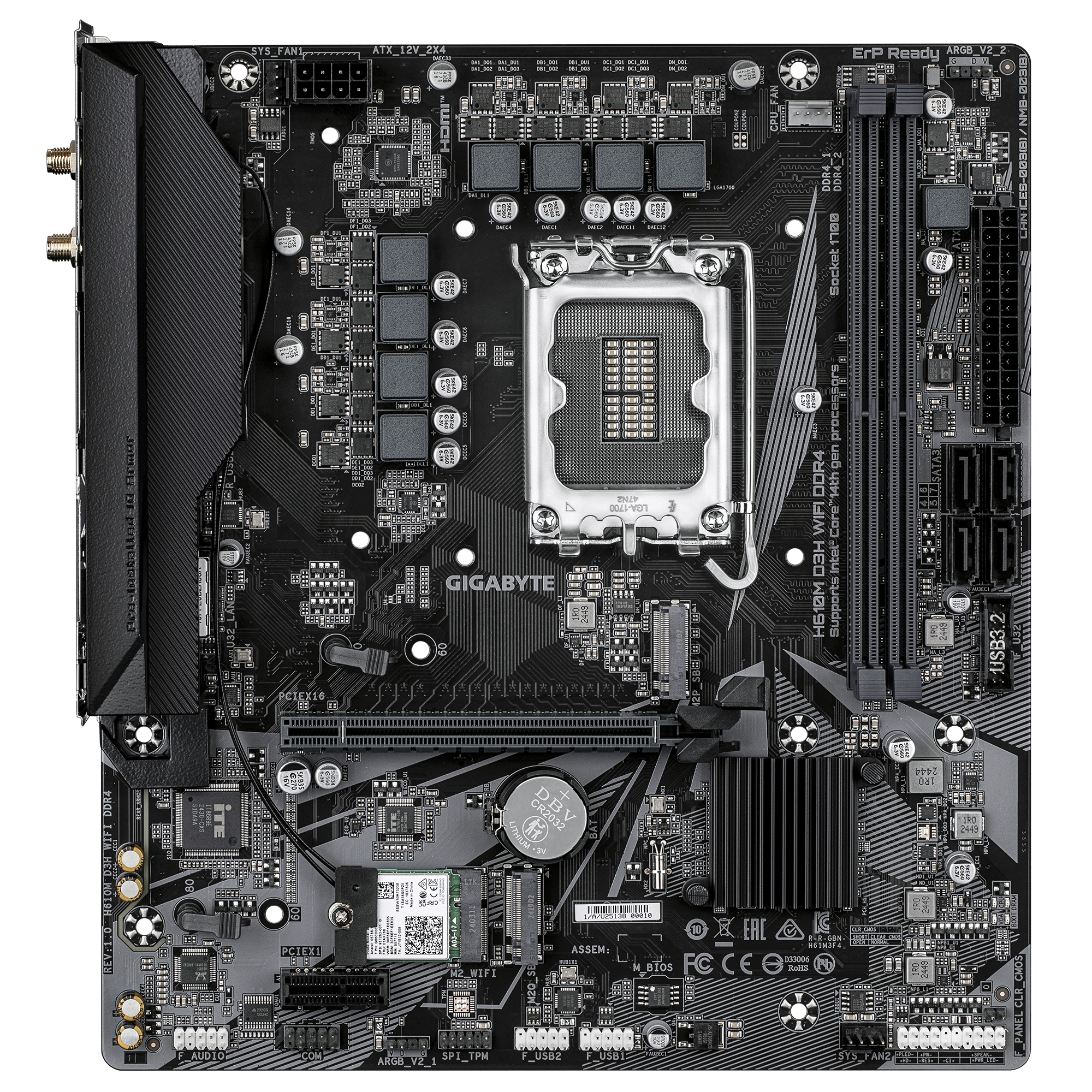

Motherboard GIGABYTE H610M D3H WIFI DDR4, socket 1700, Micro ATX
Ref. number: GA-MB-H610M-D3H-WF-D4
Price: € 89.58 / 175.20 лв.
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | H610M D3H WIFI DDR4 |
| Barcode | 4719331871116 |
| CPU Socket |
1700
|
| Chipset |
Intel H610
|
| CPU supports |
12th Generation Intel
13th Generation Intel
14th Generation Intel
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
64 GB
|
| Number of Memory Slots |
2
|
| Frequency Memory |
3200 MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek AUDIO CODEC
|
| Integrated LAN |
1 x Realtek 1Gb Ethernet port
|
| Integrated Wi-Fi |
Bluetooth 5.1
Wi-Fi 5 (802.11 a/b/g/n/ac)
|
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support)
|
| Raid support | |
| Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|
| Connectors |
1 x HDMI port
1 x RJ-45
1 x PS/2 Keyboard
1 x PS/2 Mouse
3 x Audio jacks
2 x SMA antenna connectors
|
| USB Ports |
2 x USB 3.2 Gen1
4 x USB 2.0
|
| Dimension |
Micro ATX - 24.4 x 22.1 cm
|
| Other |
Description
The GIGABYTE H610M D3H WIFI DDR4 is a reliable and feature‑rich micro‑ATX motherboard built for Intel 12th, 13th, and 14th Gen processors, offering stable power delivery, built‑in Wi‑Fi, DDR4 memory support, and essential expansion options for smooth everyday computing and gaming.
- CPU Support: Compatible with Intel® 14th/13th/12th Gen Core™ processors via the LGA1700 socket.
- Power Design: Uses a 6+1+1 hybrid digital VRM design for cleaner and more efficient power delivery under load.
- Memory: Supports dual‑channel DDR4 with a maximum capacity of 64 GB, with up to 32 GB per slot after Intel’s memory code update.
- Wireless Connectivity: Integrated Wi‑Fi 802.11ac for convenient wireless networking.
- Storage: Includes a PCIe Gen3 x4 M.2 slot for NVMe SSDs, ensuring fast storage performance.
- Expansion: Features PCIe 4.0* design for the main slot (actual support depends on CPU).
- Cooling: Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP for optimized cooling control.
- Durability: Anti‑sulfur resistors and high‑quality audio capacitors enhance longevity and audio clarity.
