Motherboard GIGABYTE B550M DS3H R2 Socket AM4

Ref. number: GA-MB-B550M-DS3H-R2
Price: € 93.41 / 182.69 лв.
Specifications
Manufacturer GIGABYTE
Warranty 36 months
Product code B550M DS3H R2
Barcode 4719331870454
CPU Socket
AM4
Chipset
AMD B550
CPU supports
3rd Generation AMD
4th Generation AMD
5000 Series AMD Ryzen
Memory Standard
DDR4
Maximum Memory Supported
128 GB
Number of Memory Slots
4
Frequency Memory
4733(OC) MHz
Support Dualchannel
Yes
Integrated Audio
Realtek ALC1220
Integrated LAN
Realtek GbE LAN (10/100/1000 Mbit)
Integrated Wi-Fi
No
PCI-E x16
1
PCI Express x4
PCI-E x1
1
PCI-E slots
Interface Serial ATA
4 x SATA3 6.0 Gb/s
M2 socket
2 x 2280 M.2 PCIe
Raid support
0,1,10
Power Connector
1 x 24 pin ATX Power Connector
1 x 8-pin ATX 12V Power connector
Connectors
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
2 x SMA antenna connectors
USB Ports
4 x USB 3.2 Gen 1
2 x USB 2.0
Dimension
Micro ATX - 24.4 x 24.4 cm
Other

Description

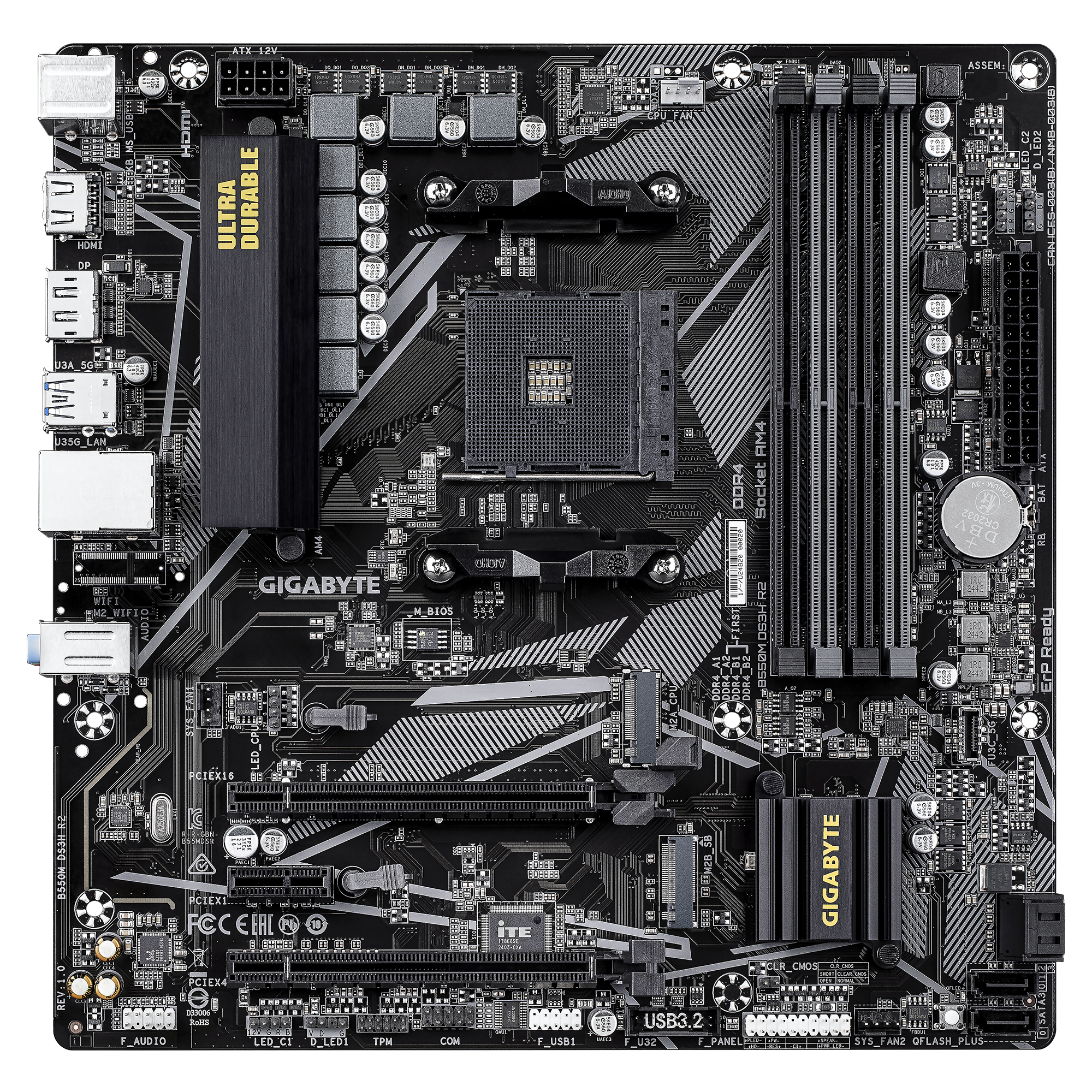

The GIGABYTE B550M DS3H R2 is a reliable and feature‑rich Micro‑ATX motherboard designed for AMD Ryzen processors, offering strong performance, fast storage options, and solid connectivity—making it an excellent foundation for a modern, budget‑friendly gaming or productivity PC.

  • AMD AM4 support: Compatible with Ryzen 3000, 4000, and 5000 series processors for wide upgrade flexibility.
  • Fast storage options: Includes two M.2 slots, one supporting PCIe 4.0 for high‑speed NVMe SSDs.
  • PCIe 4.0 graphics support: Features a reinforced PCIe 4.0 x16 slot for modern GPUs with improved durability.
  • Memory capacity: Supports up to 128 GB DDR4 across four DIMM slots, ideal for multitasking and future expansion.
  • Efficient thermal design: VRM thermal armor helps maintain stable performance under load.
  • Connectivity options: Offers HDMI and DisplayPort outputs, USB 3.1 ports, and Gigabit LAN for versatile setups.
