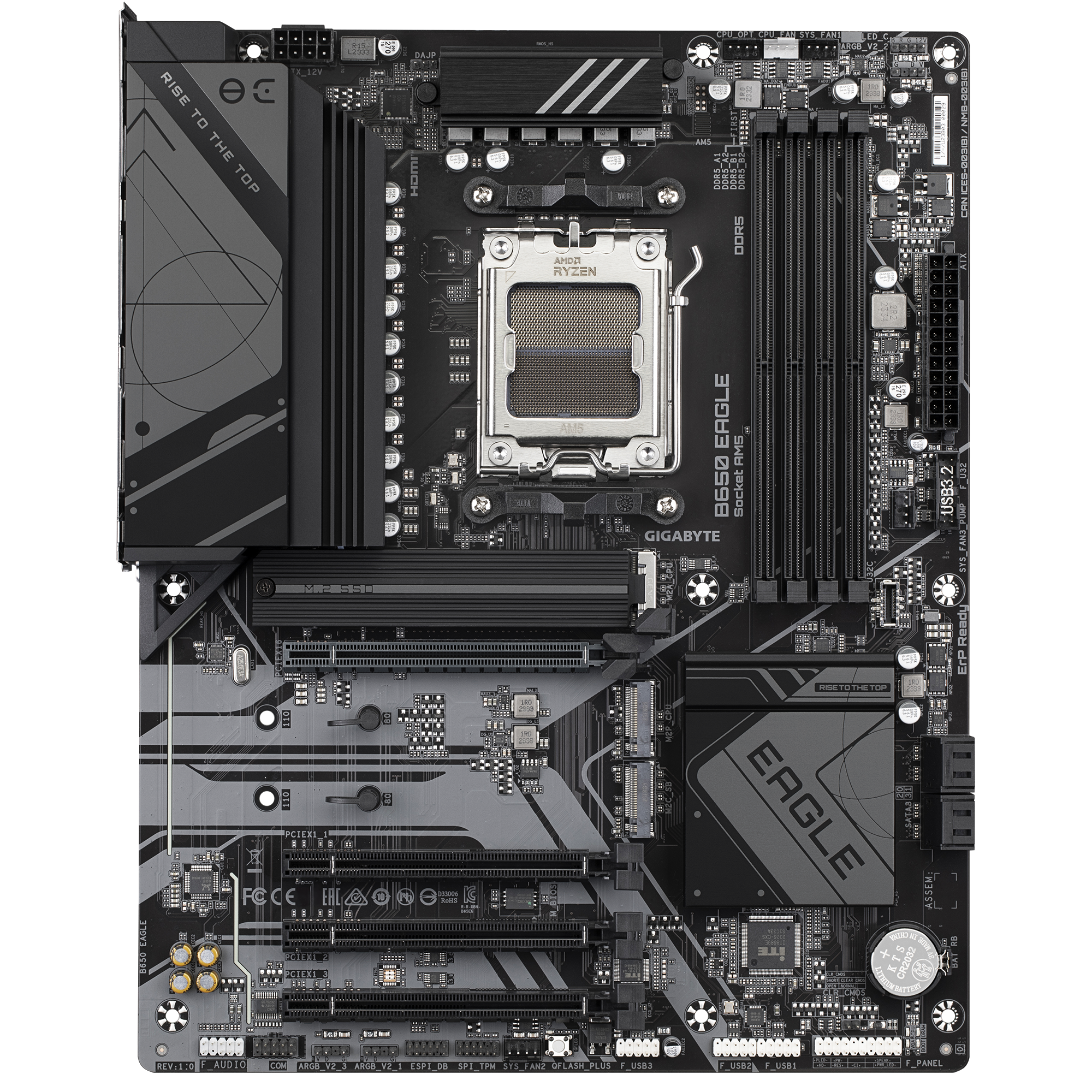

Motherboard GIGABYTE B650 EAGLE

Ref. number: GA-MB-B650-EAGLE
Price: 279.19 BGN / €142.75
Specifications
Manufacturer GIGABYTE
Warranty 36 months
Product code B650 EAGLE
Barcode 4719331863081
CPU Socket
AM5
Chipset
AMD B650
CPU supports
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
Memory Standard
DDR5
Maximum Memory Supported
192 GB
Number of Memory Slots
4
Frequency Memory
7600(OC) MHz
Support Dualchannel
Yes
Integrated Audio
Realtek AUDIO CODEC
Integrated LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Integrated Wi-Fi
No
PCI-E x16
1 x PCIe 4.0 x16
PCI Express x4
PCI-E x1
3
PCI-E slots
Interface Serial ATA
4 x SATA3 6.0 Gb/s
M2 socket
2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support
1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support)
Raid support
RAID 0/1/10 for M.2 NVMe
Power Connector
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Connectors
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
1 x Q-Flash Plus button
2 x SMA antenna connectors
USB Ports
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen2
6 x USB 2.0
Dimension
ATX - 30.5 x 24.4 cm
Other
256 Mb Flash ROM, UEFI AMI BIOS

Description

GIGABYTE B650 EAGLE

Key Technical Specifications

  • Form Factor: ATX – standard size, compatible with most PC cases
  • Socket: AM5 – supports AMD Ryzen 7000, 8000, and 9000 series CPUs
  • Chipset: AMD B650 – enables PCIe 4.0 and modern technologies
  • RAM: 4 DDR5 slots, up to 256 GB, with speeds up to 7600 MHz (OC)
  • Storage:
    • 4 x SATA III ports
    • 1 x M.2 slot for NVMe SSD (types 25110/22110/2580/2280)
  • Networking: Realtek 2.5Gb LAN – fast and reliable wired connection
  • Audio: Realtek High Definition Audio – supports 2/4/5.1/7.1 channels
  • Expansion Slots: PCIe 4.0 for graphics cards and other devices
  • USB Ports: USB 3.2 Gen 2 and other standard interfaces
