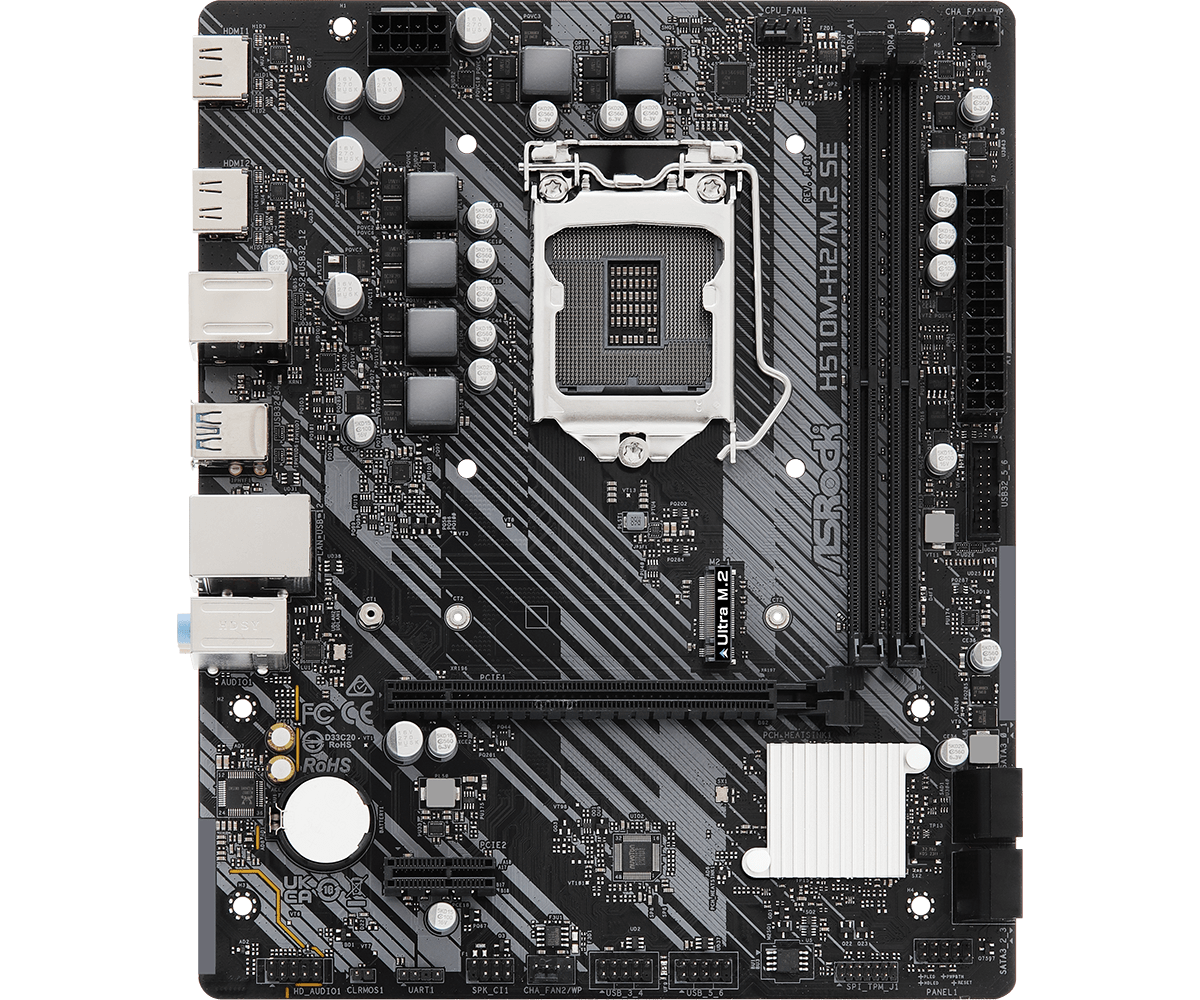

Motherboard ASRock H510M-H2/M.2 SE, LGA1200, DDR4, mATX
Ref. number: ASR-MB-H510M-H2-M2-SE
Price: 115.13 BGN / €58.86
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | H510M-H2/M.2 SE |
| Barcode | 4710483944192 |
| CPU Socket |
1200
|
| Chipset |
Intel H510
|
| CPU supports |
10th Generation Intel
11th Generation Intel
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
64 GB
|
| Number of Memory Slots |
2
|
| Frequency Memory |
3200 MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio (Realtek ALC887/ 897 Audio Codec)
|
| Integrated LAN |
Realtek RTL8111H chip (10/100/1000 Mbit)
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module
|
| Raid support | |
| Power Connector |
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
|
| Connectors |
2 x HDMI
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
|
| USB Ports |
4 x USB 3.2 Gen 1
2 x USB 2.0
|
| Dimension |
Micro ATX - 23.1 x 18.7 cm
|
| Other |
