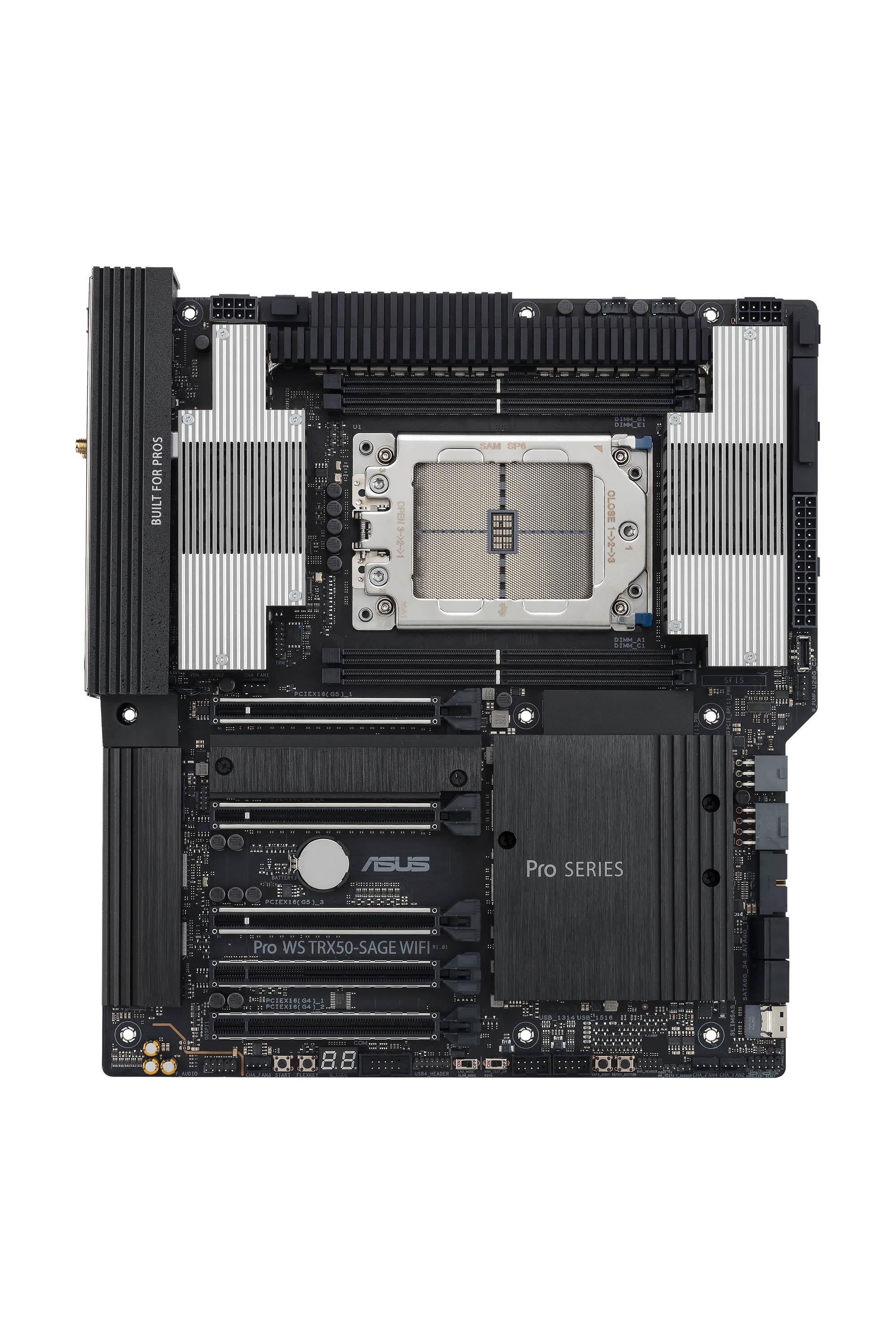

Motherboard ASUS Pro WS TRX50-SAGE WIFI sTR5 DDR5
Ref. number: ASUS-MB-PRO-WS-TRX50-SAGE
Price: 1985.48 BGN / €1015.16
Specifications
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1FZ0-M0EAY0 |
| Barcode | 4711387402726 |
| CPU Socket |
sTR5
|
| Chipset |
AMD TRX50
|
| CPU supports |
Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8000(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
1 x Intel® 2.5Gb Ethernet
1 x Marvell® AQtion 10Gb Ethernet
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
1 x PCIe 4.0 x16 (x16 mode)
2 x PCIe 5.0 x16
1 x PCIe 5.0 x16 (x8 mode)
|
| PCI Express x4 |
1
|
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
|
| Connectors |
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x BIOS Flashback Button
1 x Marvell AQtion 10Gb Ethernet port
1 x Intel 2.5Gb Ethernet port
1 x Clear CMOS button
1 x Wi-Fi Module
|
| USB Ports |
2 x USB 2.0
6 x USB 10Gbps ports Type-A
1 x USB 20Gbps port Type-C
|
| Dimension |
CEB - 30.5 x 28.3 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
Description
ASUS Pro WS TRX50-SAGE WIFI is a top-tier motherboard designed for professionals working in AI, 3D rendering, media production, and other resource-intensive tasks.
Key Features:
- Socket: AMD sTR5 — compatible with Ryzen Threadripper PRO 7000 and 9000 WX processors (up to 96 cores!)
- Memory: Supports up to 1TB ECC R-DIMM DDR5 — stability and capacity for the heaviest workloads
- Power Delivery: 36 power stages + dual 8-pin connectors — guaranteed stability even under overclocking
- Cooling: Massive heatsinks, active fans, and thermal pads for M.2 — server-grade thermal management
Connectivity & Expansion:
- PCIe 5.0: Three x16 slots — ideal for multi-GPU setups and future graphics cards
- Networking: Built-in 10Gb + 2.5Gb Ethernet, plus WiFi 7 — lightning-fast connectivity
- Storage: Three M.2 slots, SlimSAS NVMe support — for ultra-fast data access
- USB Ports: Front and rear USB 20Gbps Type-C — for high-speed peripherals
Management & Reliability:
- IPMI Support: Server-level remote management and monitoring via ASUS Control Center Express
- 24/7 Stability: Tested for continuous operation and compatibility with leading technologies
