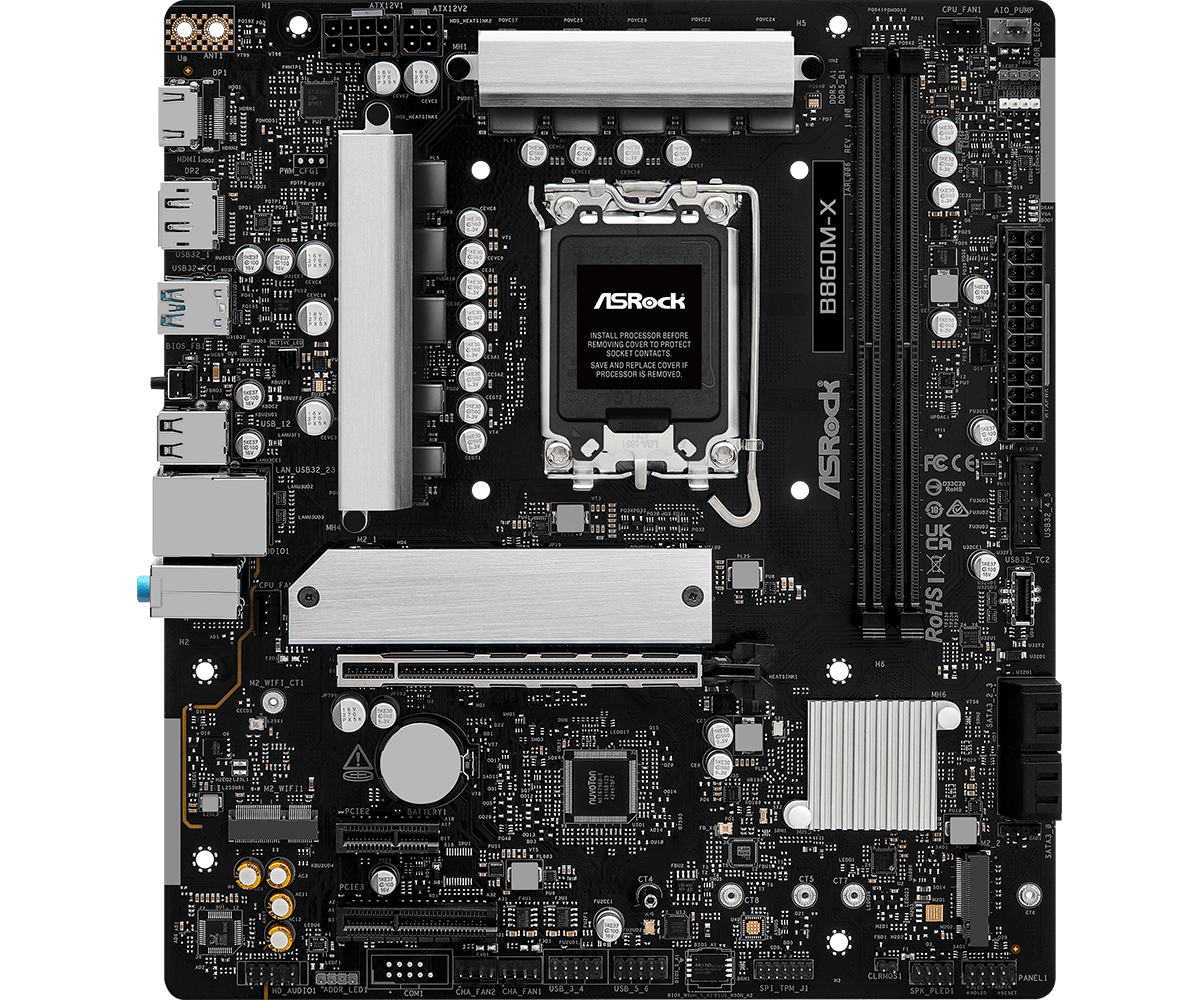

Motherboard ASRock B860M-X, LGA 1851
Ref. number: ASR-MB-B860M-X
Price: 244.26 BGN
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B860M-X |
| Barcode | 4711581490406 |
| CPU Socket |
1851
|
| Chipset |
Intel B860
|
| CPU supports |
Intel® Core™ Ultra Processors (Series 2)
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
9066(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
| Integrated LAN |
1 x Realtek® Dragon RTL8125BG 2.5G LAN
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 | |
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
3 x Audio jacks
1 x BIOS Flashback Button
2 x Antenna Mounting Points
|
| USB Ports |
3 x USB 3.2 Gen 1
2 x USB 2.0
USB 3.2 Gen 2 Type-C
|
| Dimension |
Micro ATX - 24.4 x 21.8 cm
|
| Other |
128 Mb Flash ROM, UEFI AMI BIOS
|
Description
The ASRock B860M-X is a compact Micro ATX motherboard designed for Intel Core Ultra Series 2 CPUs with the LGA1851 socket. It's built for mainstream users and gamers looking for solid performance at a budget-friendly price.
Key Features
- Performance: Supports DDR5 memory up to 9066+ MHz (OC) with dual-channel configuration and XMP/EXPO profiles
- Expansion Slots:
- 1×PCIe 4.0 x16
- 1×PCIe 4.0 x4
- 1×PCIe 4.0 x1
- 2×M.2 slots (PCIe Gen5 and Gen4)
- 4×SATA3 connectors
- Connectivity:
- Realtek 2.5Gb LAN
- USB 3.2 Gen2x2 Type-C (20Gb/s)
- HDMI 2.1 and DisplayPort 1.4 for high-resolution displays
- Cooling and Stability:
- Aluminum heatsinks
- Smart fan controls to ensure efficient temperature management
- DIY-Friendly Functions:
- BIOS Flashback button
- Auto Driver Installer
- Post Status Checker for quick diagnostics
