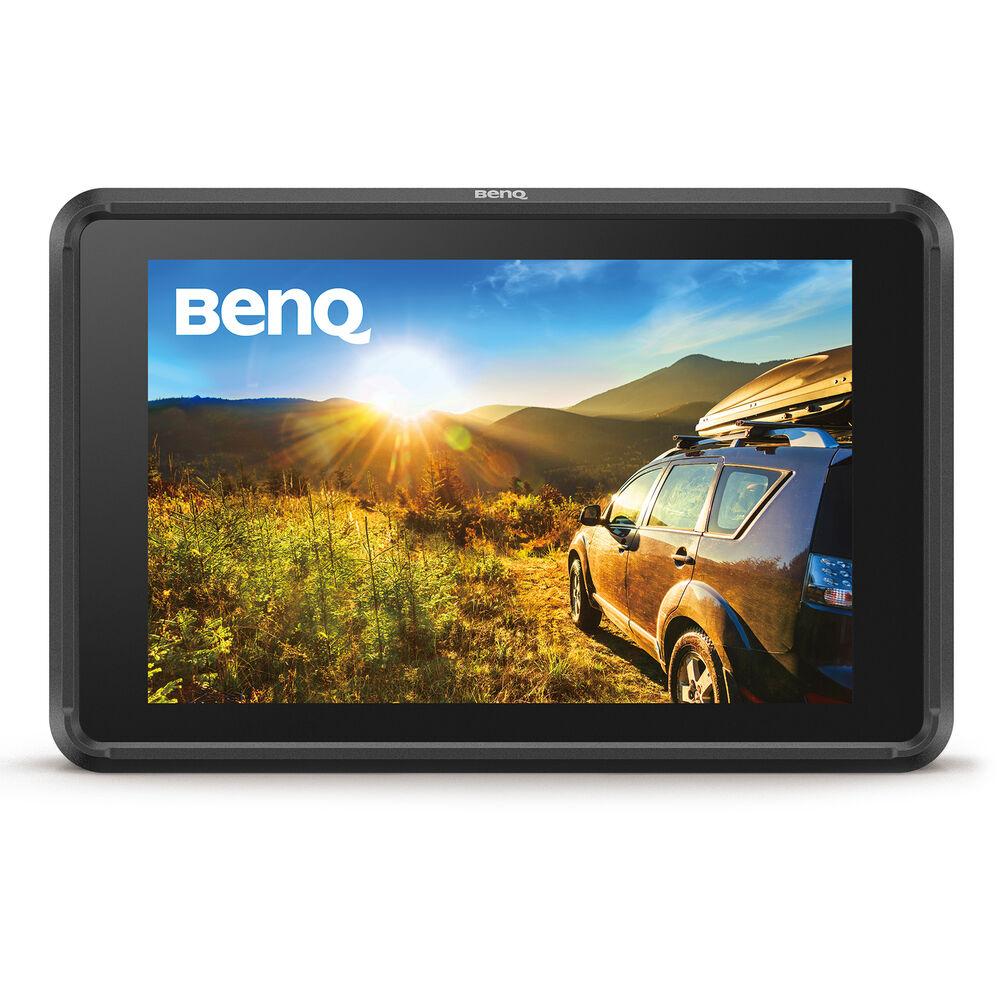

Monitor on Camera BENQ PVS7 - 7 inch IPS FHD(1920x1200), 60Hz, HDMI, MicroSD, SDI
Ref. number: BENQ-MON-PVS7
Price: 2199.00 BGN / €1124.33
Specifications
| Manufacturer | BenQ |
| Warranty | 36 months |
| Product code | 9H.LMDLD.DBA |
| Barcode | 4718755093975 |
| For |
Professional
|
| Screen size |
7 inch
|
| Panel Type |
IPS
|
| Technology |
LED/LCD
|
| Resolution |
1920 x 1200
|
| Aspect Ratio |
16:9
16:10
|
| Pixel Pitch |
0.323 mm
|
| View Angles |
160°/160°
|
| Response Time |
30 ms (GTG)
|
| Signal Frequency |
60 Hz
|
| Brightness |
2000 nits
|
| Contrast(Typical) |
1200:1
|
| Active Contrast | |
| Display Colors |
16.7M
|
| Special functions | |
| Video Ports |
2 x HDMI
|
| USB Ports |
No
|
| Aditional ports |
Audio Jack
SDI (3G) in/out
MicroSD
|
| Built-in Speakers |
No
|
| Pivot |
No
|
| Tilt |
No
|
| Swivel |
No
|
| Height adjust range |
No
|
| VESA Mounting |
No
|
| Touch sensor | |
| Number of touch points | |
| Interface for connection | |
| Response Time (Touch System) | |
| Size |
613.8 x 445.1~560.1 x 220.2 mm
|
| Consumption |
10 W
|
| Energy efficiency |
Class G
|
| Color |
Black
|
Description
The BenQ PVS7 is a 7-inch high-brightness on-camera monitor designed for professional videographers who need reliable performance in outdoor and studio environments. Here's a deeper dive into its standout features:
Visibility & Display
- 2000 nits brightness ensures clear viewing even under direct sunlight
- Anti-reflective touchscreen with only 5% reflectance and 6H hardness for scratch resistance
- Full HD 1920 × 1200 IPS LCD with 323 ppi and 1200:1 contrast ratio
Color Accuracy & LUT Support
- Supports Rec.709 color gamut with BenQ’s AQCOLOR technology for precise color reproduction
- Upload up to 10 custom 3D LUTs via microSD card (formats: .cube, 17x17x17 to 64x64x64)
Connectivity & Compatibility
- HDMI and 3G-SDI input/output for universal camera support (Sony, Canon, Fujifilm, etc.)
- Loop-through capability for signal passthrough to other devices
Build & Durability
- Drop-resistant up to 1.5 meters with reinforced edges
- Comes with a protective cage and two-way sun hood for glare reduction
Power & Efficiency
- Compatible with Sony NP-F and Canon LP-E6 batteries
- A 5200mAh NP-F battery offers up to 5 hours of runtime
- Fanless design for silent operation—perfect for ASMR or quiet sets
? Monitoring Tools
- Includes waveform, vectorscope, false color, focus peaking, anamorphic mode, and more
If you're shooting outdoors or need a monitor that delivers both ruggedness and precision, the PVS7 is a serious contender.
