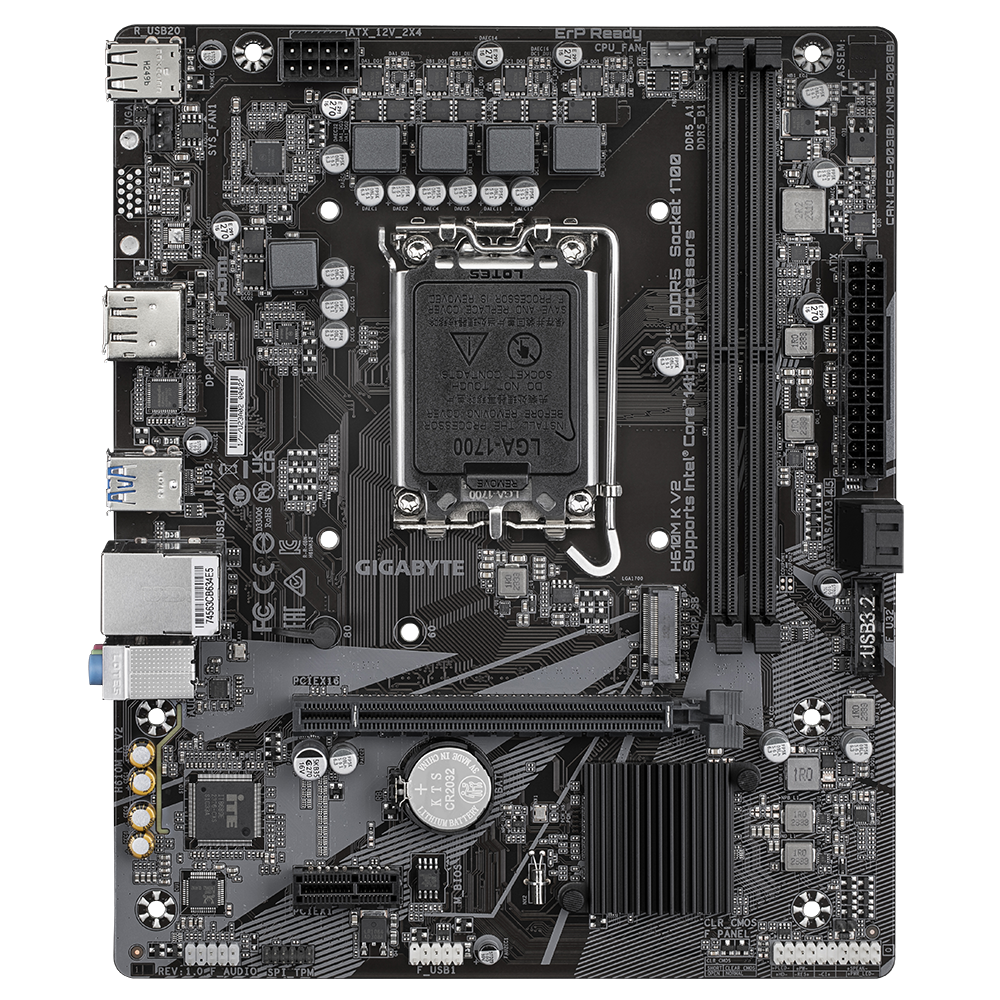

Motherboard GIGABYTE H610M K V2 DDR5, socket 1700, Micro ATX

Ref. number: GA-MB-H610M-K-V2
Price: 144.84 BGN / €74.06
Specifications
Manufacturer GIGABYTE
Warranty 36 months
Product code H610M K V2
Barcode 4719331860134
CPU Socket
1700
Chipset
Intel H610
CPU supports
13th Generation Intel
14th Generation Intel
Memory Standard
DDR5
Maximum Memory Supported
128 GB
Number of Memory Slots
2
Frequency Memory
5600(OC) MHz
Support Dualchannel
Yes
Integrated Audio
Realtek AUDIO CODEC
Integrated LAN
Realtek GbE LAN (10/100/1000 Mbit)
Integrated Wi-Fi
No
PCI-E x16
1 x PCIe 4.0 x16
PCI Express x4
PCI-E x1
1
PCI-E slots
Interface Serial ATA
2 x SATA 6.0 Gb/s
M2 socket
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Raid support
Power Connector
1 x 24 pin ATX Power Connector
1 x 8-pin ATX 12V Power connector
Connectors
1 x HDMI port
1 x Display Port
1 x RJ-45
3 x Audio jacks
USB Ports
2 x USB 3.2 Gen1
4 x USB 2.0
Dimension
Micro ATX - 24.4 x 24.4 cm
Other
128 Mb Flash ROM, UEFI AMI BIOS

Description

The GIGABYTE H610M K V2 is a microATX motherboard built for users who want solid performance on a budget, especially with Intel’s 12th, 13th, and 14th Gen processors. Here's a deeper dive into what makes it tick:

⚙️ Core Specs

  • Socket: LGA 1700 – supports Intel Core i3 to i9, Pentium Gold, and Celeron CPUs
  • Chipset: Intel H610 – entry-level but reliable
  • Memory: Dual-channel DDR5, up to 128 GB, speeds up to 5600 MHz
  • Storage:
    • 1 x M.2 PCIe 3.0 x4 slot for NVMe SSDs
    • 2 x SATA III ports for HDDs/SSDs
  • Expansion:
    • 1 x PCIe 4.0 x16 slot for GPUs
    • 1 x PCIe 3.0 x1 slot for other cards

? Graphics & Audio

  • Video Outputs: HDMI 2.1 and DisplayPort 1.2 – both support 4K resolution
  • Audio: Realtek ALC897 – 7.1-channel HD sound with noise guard and high-end capacitors

? Connectivity

  • LAN: Realtek GbE LAN with bandwidth management
  • USB Ports:
    • 2 x USB 3.2 Gen 1
    • 4 x USB 2.0
    • Internal headers for more
