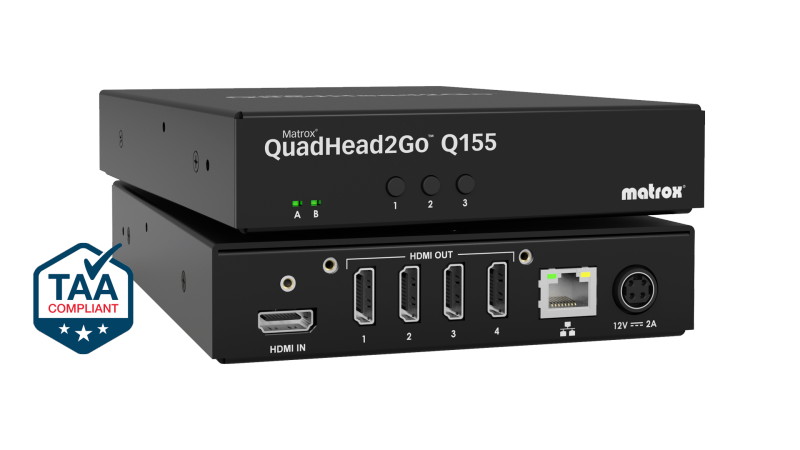

Description

Drive up to four Full HD displays from a single video signal—of up to 4Kp60 and 8Kx8K—at full RGB 8:8:8 and
YUV 4:4:4 color support. The system-independent Matrox QuadHead2Go Series appliance is designed to power
any video wall configuration of any possible dimension, from any video source—reliably delivering flawless
image quality across expansive video wall displays. QuadHead2Go’s on-device buttons and pre-set configurations
ensure an out-of-the-box, trouble-free installation experience. TAA compliant SKU available.

Video Input:   1 x HDMI
Video Output:   4 x HDMI
Network Connector:   1x RJ45
Memory:   1GB
Video Input Resolutions:   3840x2160 @60Hz
                           3840x2160 @30Hz
                           7680x1080 @60Hz
                           7680x1080 @30Hz
                           1920x4320 @60Hz
                           1920x4320 @30Hz
Video Output Resolutions:   1920x1080 @60Hz
                            1920x1080 @30Hz
                            1920x1200 @60Hz
                            1920x1200 @30Hz
Color Space and Chroma Sub-Sampling:   nput:  RGB: 8:8:8 (24 bits per pixel)
                                              YUV: 4:4:4, 4:2:2, 4:2:0 (8 bits per component)
                                       Output:   RGB: 8:8:8 (24 bits per pixel)
Supported Configurations:   2x2 (default), 4x1, 3x1, 2x1, 1x2, 1x3, 1x4 in both landscape and portrait
                            modes and other non-rectangular/artistic configurations
Video Cropping:   Yes
Stretched Desktop Support:   Yes
HDCP Support:   Yes
Audio Output Format:   AAC, PCM, Stereo, and Mono
Product Dimensions:   13.97 x 3.18 x 18.11 cm
Power Consumption:   15W
