Description

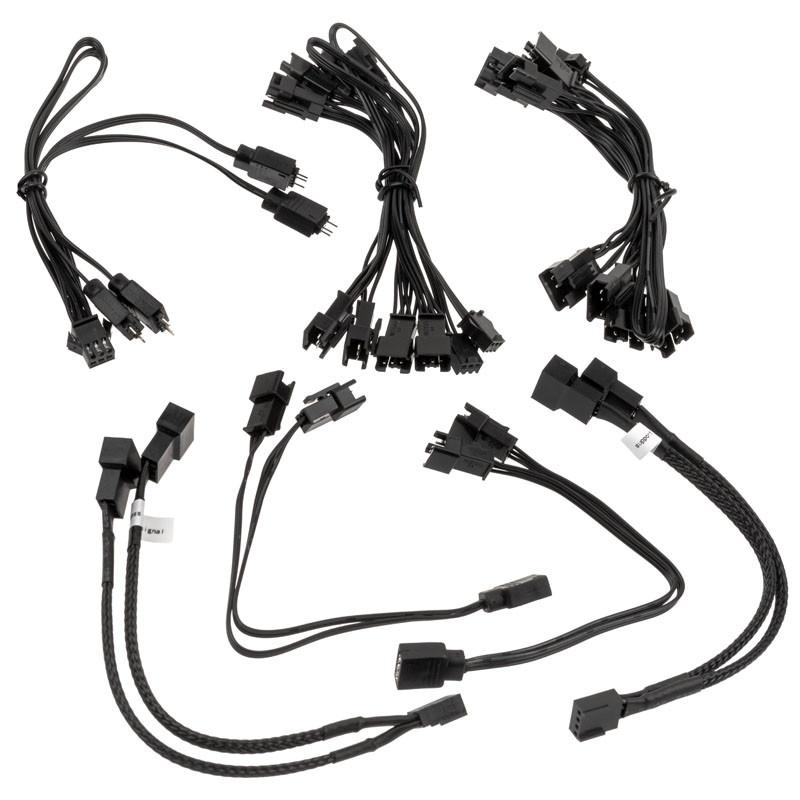

Lian Li UF-EX ARGB Cable Kit

Connecting More Lian lI ARGB Devices At Once Starts Now
The ARGB Device Cable Kit lets you take control of more LIAN LI ARGB products either via the Uni Hub or via synchronization with the motherboard. With 5 types of cables, 2 of each, the ARGB Device Cable Kit is the solution to connect all the devices required for an outstanding build.

Supports:
- Strimer
- Strimer Plus
- Galahad AIO
- ST120
- Bora Digital
- LANCOOL II Side Diffused LED Strip
- O11D XL light bar
- DK-04F&05F light bar

Included Cables
FAN Y CABLE:
- ONE PWM HEADER TO CONTROL MULTIPLE FAN SPEED
The Fan Y Cable supports two PWM fans to be controlled from one PWM header on the motherboard. Moreover, two cables can be daisy-chained to connect up to 3 ST120 or Bora Digital fans on a single motherboard FAN header.
Please make sure to set the motherboard header to PWM mode in the BIOS.

MOTHERBOARD ADAPTOR Y-TYPE CABLE
- ONE ARGB HEADER TO CONTROL MULTIPLE ARGB DEVICES
The Motherboard Adaptor Y-Type Cable is for users wanting to connect the UNI FANs directly to the motherboard, bypassing the UNI HUB.
The cable is compatible with ASUS, MSI, GIGABYTE, and ASROCK Addressable RGB motherboards.
*If you wish to connect 6 UNI FANs in a row, please make sure that the connected ARGB header outputs is 15W.

Y-TYPE 3P SIGNAL CABLE, LIGHT BAT EXTENSION CABLE (3P), FAN LED EXTENSION CABLE (4P)
- Those three cables are extension ARGB cables to connect to the UNI HUB. Each cable supports different products, depending on which connector fits.Cables could also connect to motherboard directly through Motherboard Adaptor Y-Type Cable.
