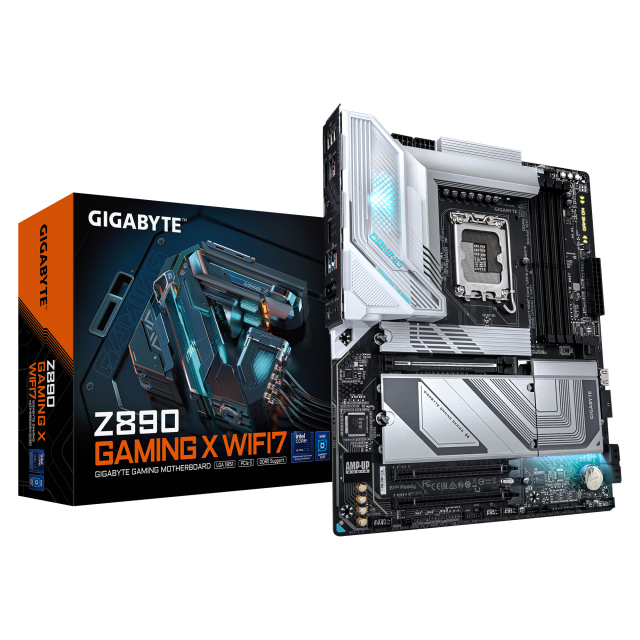

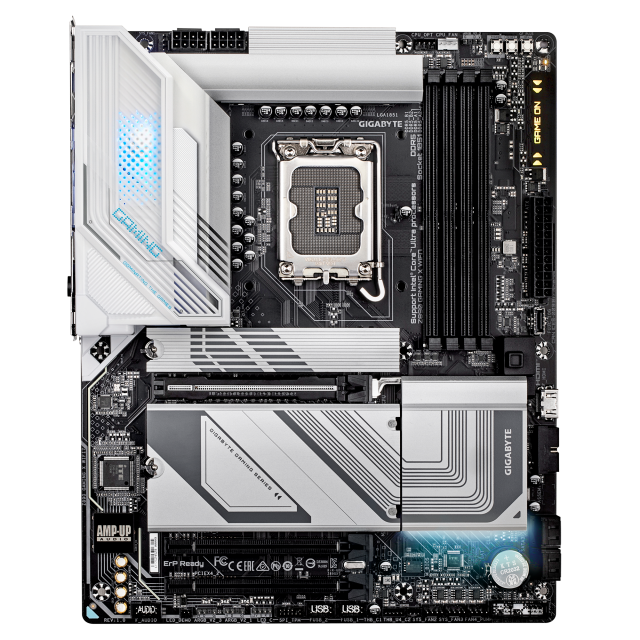

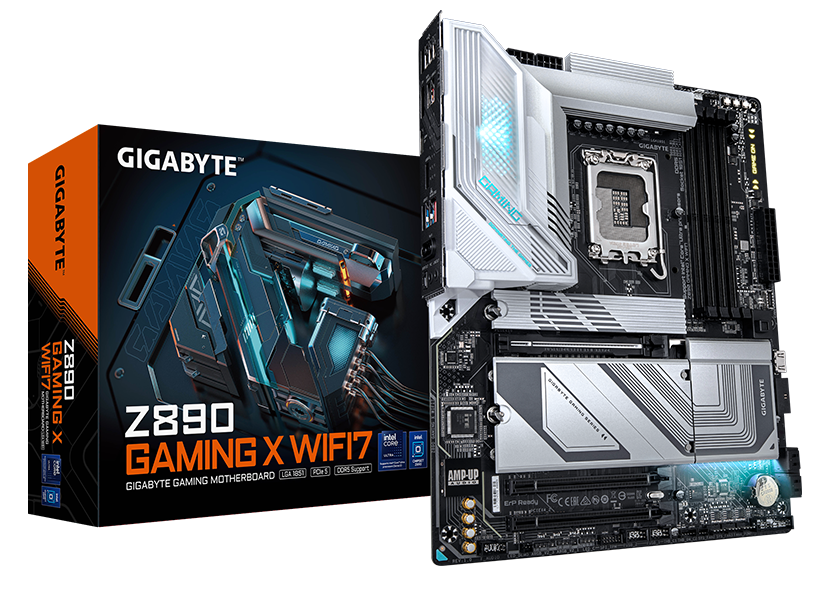

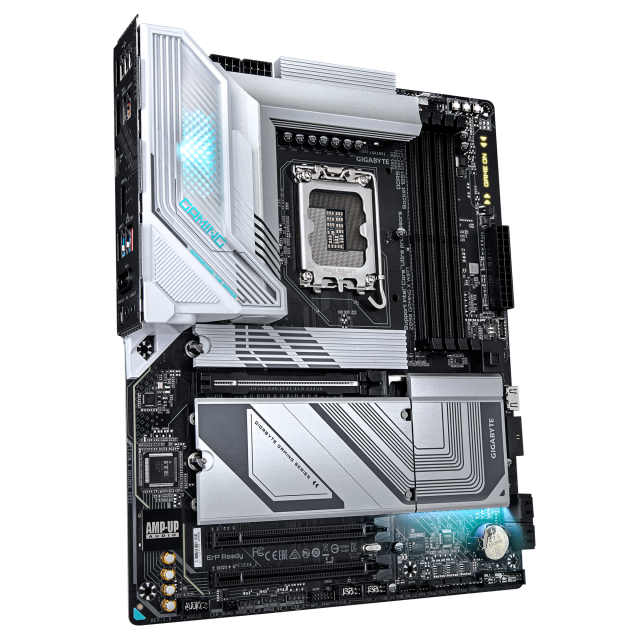

Дънна платка GIGABYTE Z890 GAMING X WIFI 7, LGA 1851
Дънна платка GIGABYTE Z890 GAMING X WIFI 7, LGA 1851
размер вноска | размер вноска | |
---|---|---|
3 вноски |
|
- |
6 вноски |
|
|
9 вноски |
|
|
12 вноски |
|
|
15 вноски |
|
|
24 вноски |
|
|
Key Features
Supports Intel® Core™ Ultra processors (Series 2)
Digital twin 16+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AORUS AI SNATCH : Auto-Overclocking Software by AI models
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
Premium Compatibility : 4*DDR5 with XMP Memory Module Support
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Производител | GIGABYTE |
Гаранция | 36 месеца |
Продуктов код | Z890 GAMING X WIFI7 |
Баркод | 4719331864941 |
Сокет |
1851
|
Чипсет |
Intel Z890
|
Поддържани процесори |
Intel® Core™ Ultra Процесори (Серия 2)
|
Поддържана памет |
DDR5
|
Максимален капацитет поддържана памет |
256 GB
|
Брой слотове памет |
4
|
Максимална честота памет |
8800(OC) MHz
|
Поддръжка на Dualchannel |
Да
|
Вградено аудио |
Realtek AUDIO CODEC
|
Вграден LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
Вграден Wi-Fi и Bluetooth |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
Слотoве PCI-E x16 |
1 x PCIe 5.0 x16 slot
|
Слотoве PCI-E x4 |
2
|
Слотoве PCI-E x1 |
1
|
Слотове PCI-E | |
Интерфейс Serial ATA |
4 x SATA 6Gb/s
|
М2 слот |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support)
|
Поддръжка на RAID |
0, 1, 5, 10
|
Конектор захранване |
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
|

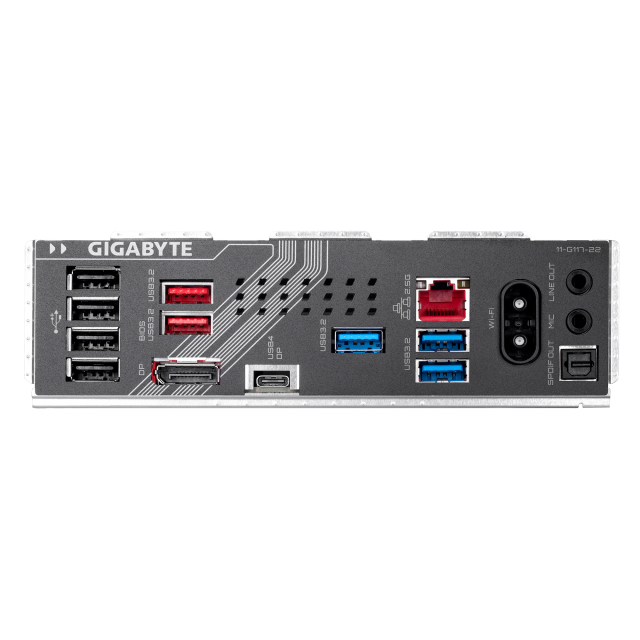

Свързаност |
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
2 x SMA antenna connectors
|
USB портове |
3 x USB 3.2 Gen 1
2 x USB 3.2 Gen2
4 x USB 2.0
1 x USB4 порт Type-C
|
Форм фактор. |
ATX - 30.5 x 24.4 cm
|
Други характеристики |
256 Mb Flash ROM, UEFI AMI BIOS
|
Тегло | 1.224 kg |
