Description

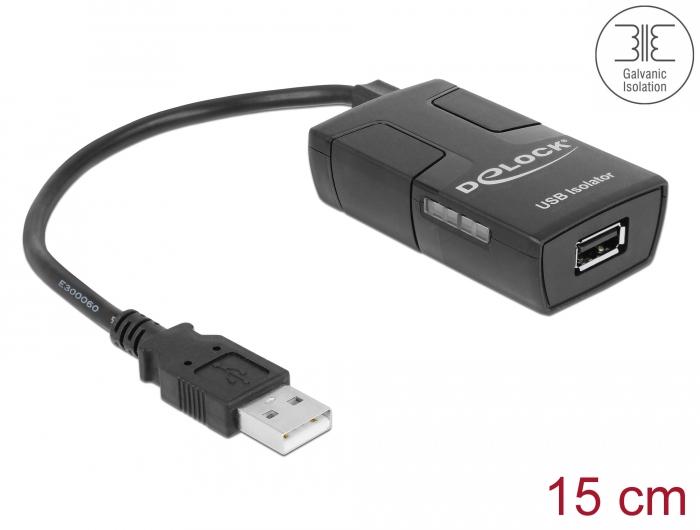

The Delock USB converter separates the electrical connection between the Host-PC and the USB device. The galvanic isolation avoids disturbing noises in the sound field and inaccurate measurement results in the laboratory field. The compact device supports the USB 1.1 specification with Low- and Full-Speed.

Technical details

Connector:
1 x USB 1.1 Type A male (host)
1 x USB 1.1 Type A female (device)
1 x DC jack
Data transfer rate up to Full-Speed ​​​​12 Mb/s
LED power indicator
5 kV optical isolation for data
3 kV optical isolation for power
Power supply: Bus-powered or self-powered, Bus-powered up to 320 mA
Operating temperature: -20 °C ~ 50 °C
Housing material: plastic
Dimensions (LxWxH): approx. 66 x 39 x 20 mm
Cable length: approx. 15 cm
Regardless of OS, no driver installation required

Power connector specification

5 V, ground outside, plus inside
Dimensions:
inside: ø approx. 1.35 mm
outside: ø approx. 3.5 mm
length: approx. 9.5 mm
