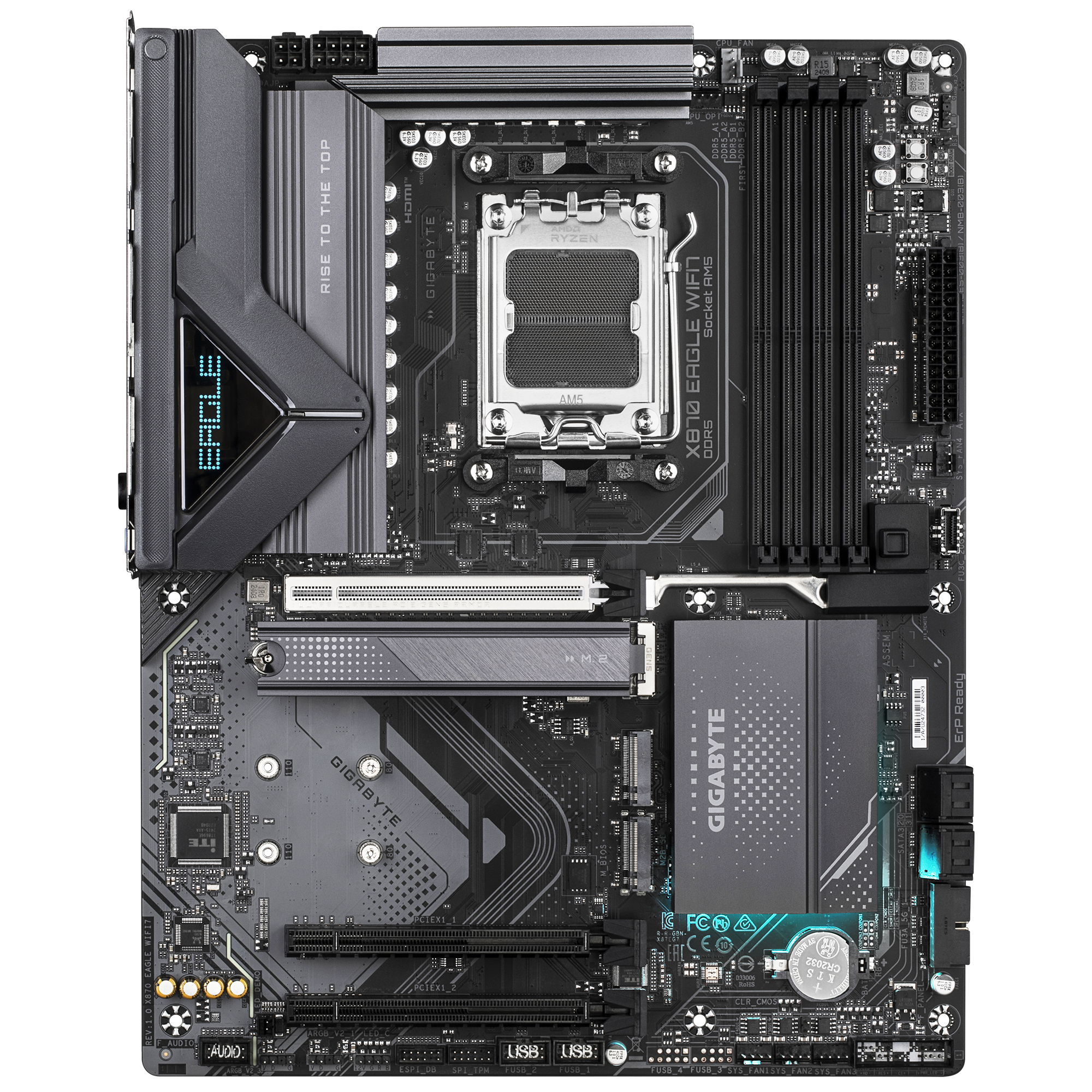

Motherboard GIGABYTE X870 EAGLE WIFI 7, Socket AM5
Manufacturer | GIGABYTE |
Warranty | 36 months |
Product code | 870 EAGLE WIFI7 |
Barcode | 4719331864996 |
CPU Socket |
AM5
|
Chipset |
AMD X870
|
CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
Memory Standard |
DDR5
|
Maximum Memory Supported |
256 GB
|
Number of Memory Slots |
4
|
Frequency Memory |
8200(OC) MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
|
Integrated LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
Integrated Wi-Fi |
2x2 Wi-Fi 7 (802.11be)
Bluetooth v5.4
|
PCI-E x16 |
1 x PCIe 5.0 x16 slot (supports x16 mode)
|
PCI Express x4 | |
PCI-E x1 |
2
|
PCI-E slots | |
Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
M2 socket |
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSDs
|
Raid support |
0,1,10
|
Power Connector |
1 x 24 pin ATX Power Connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
|
Connectors |
1 x HDMI port
1 x RJ-45
3 x Audio jacks
1 x Q-Flash Plus button
2 x SMA antenna connectors
|
USB Ports |
1 x USB 3.2 Gen 2 Type-A
3 x USB 3.2 Gen 1
4 x USB 2.0
2 x Thunderbolt 4.0 USB Type-C
|
Dimension |
ATX - 30.5 x 24.4 cm
|
Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
