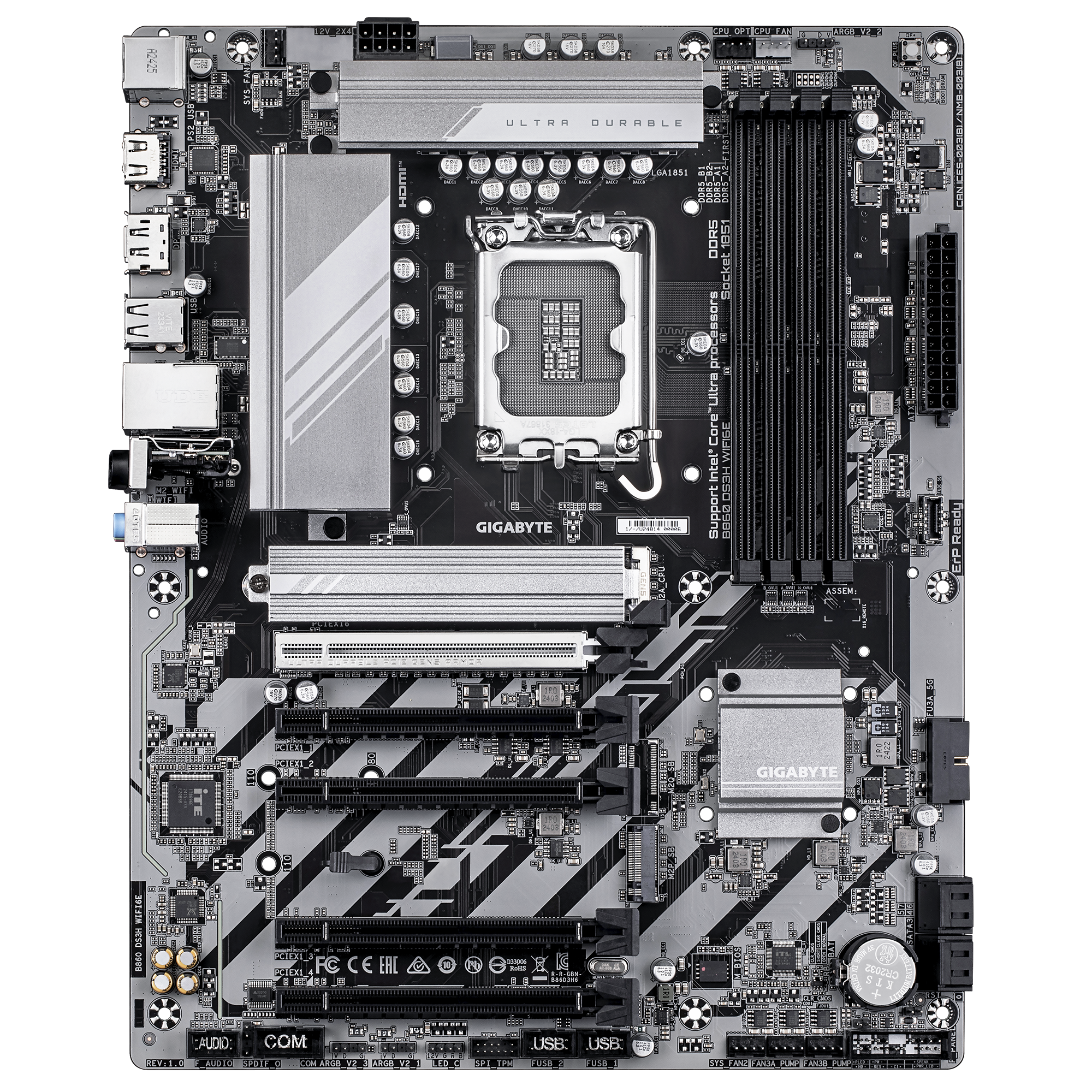

Motherboard GIGABYTE B860 DS3H WIFI 6E, LGA 1851
Ref. number: GA-MB-B860-DS3H-WF6E
Price: 405.77 BGN
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | B860 DS3H WIFI6E |
| Barcode | 4719331867515 |
| CPU Socket |
1851
|
| Chipset |
Intel B860
|
| CPU supports |
Intel® Core™ Ultra Processors (Series 2)
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
9066(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek AUDIO CODEC
|
| Integrated LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
| Integrated Wi-Fi |
802.11ax Wi-Fi 6E
Bluetooth 5.3
|
| PCI-E x16 |
1 x PCIe 5.0 x16 slot
|
| PCI Express x4 |
2
|
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
3 x Audio jacks
2 x SMA antenna connectors
|
| USB Ports |
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
