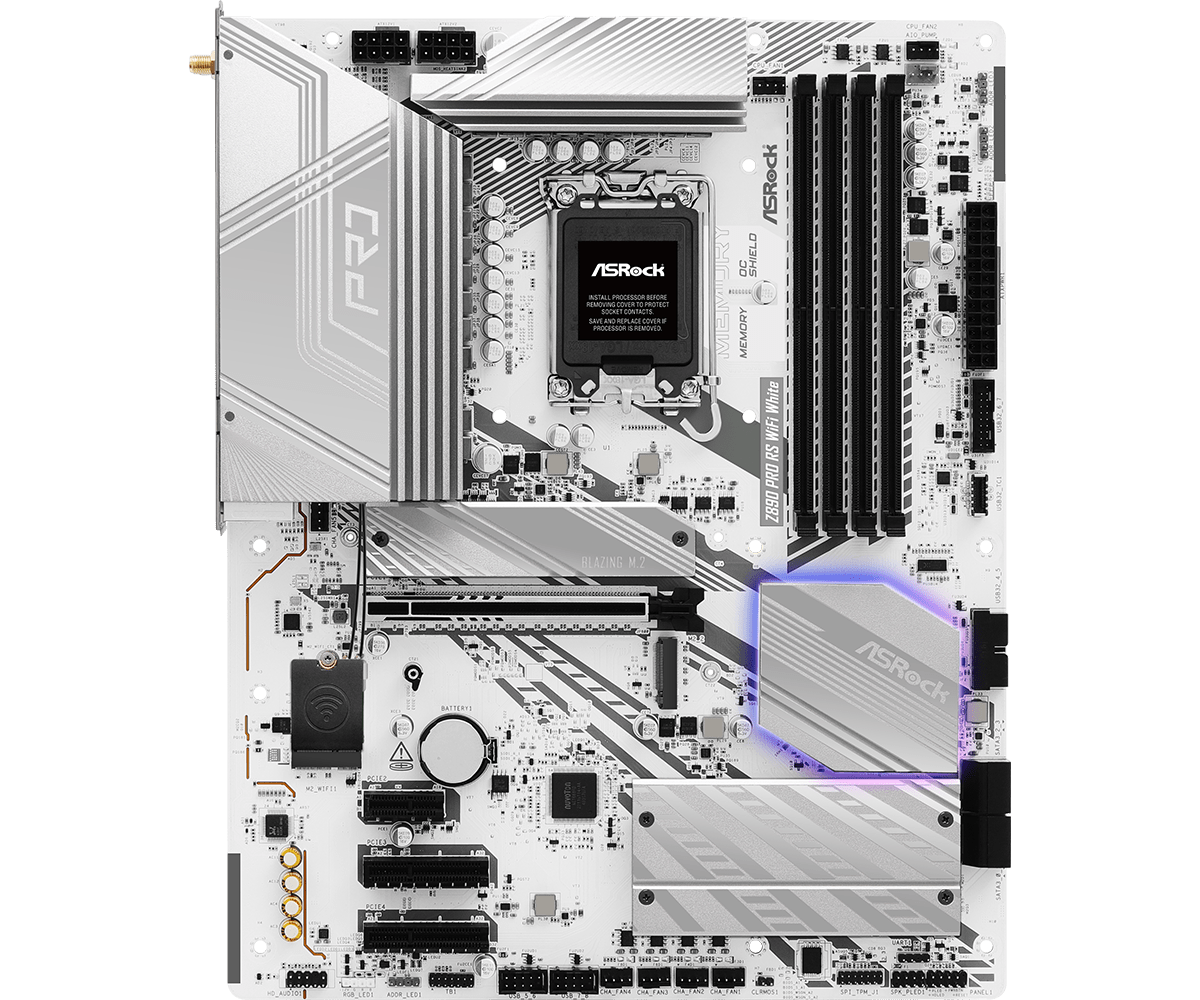

Motherboard ASRock Z890 Pro RS WIFI White, LGA 1851
Ref. number: ASR-MB-Z890-PRO-RS-WIFI
Price: 569.87 BGN
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | Z890 PRO RS WIFI WHITE |
| Barcode | 4710483947476 |
| CPU Socket |
1851
|
| Chipset |
Intel Z890
|
| CPU supports |
Intel® Core™ Ultra Processors (Series 2)
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
9066(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
| Integrated LAN |
2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
|
| Integrated Wi-Fi |
802.11ax Wi-Fi 6E
Bluetooth 5.3
|
| PCI-E x16 |
1 x PCIe 5.0 x16 slot
|
| PCI Express x4 |
2
|
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s)
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
2 x Аudio jacks
1 x BIOS Flashback Button
2 x SMA antenna connectors
|
| USB Ports |
2 x USB 3.2 Gen1
4 x USB 2.0
2 x Thunderbolt 4.0 USB Type-C
1 x USB 10Gbps port Type-A
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
