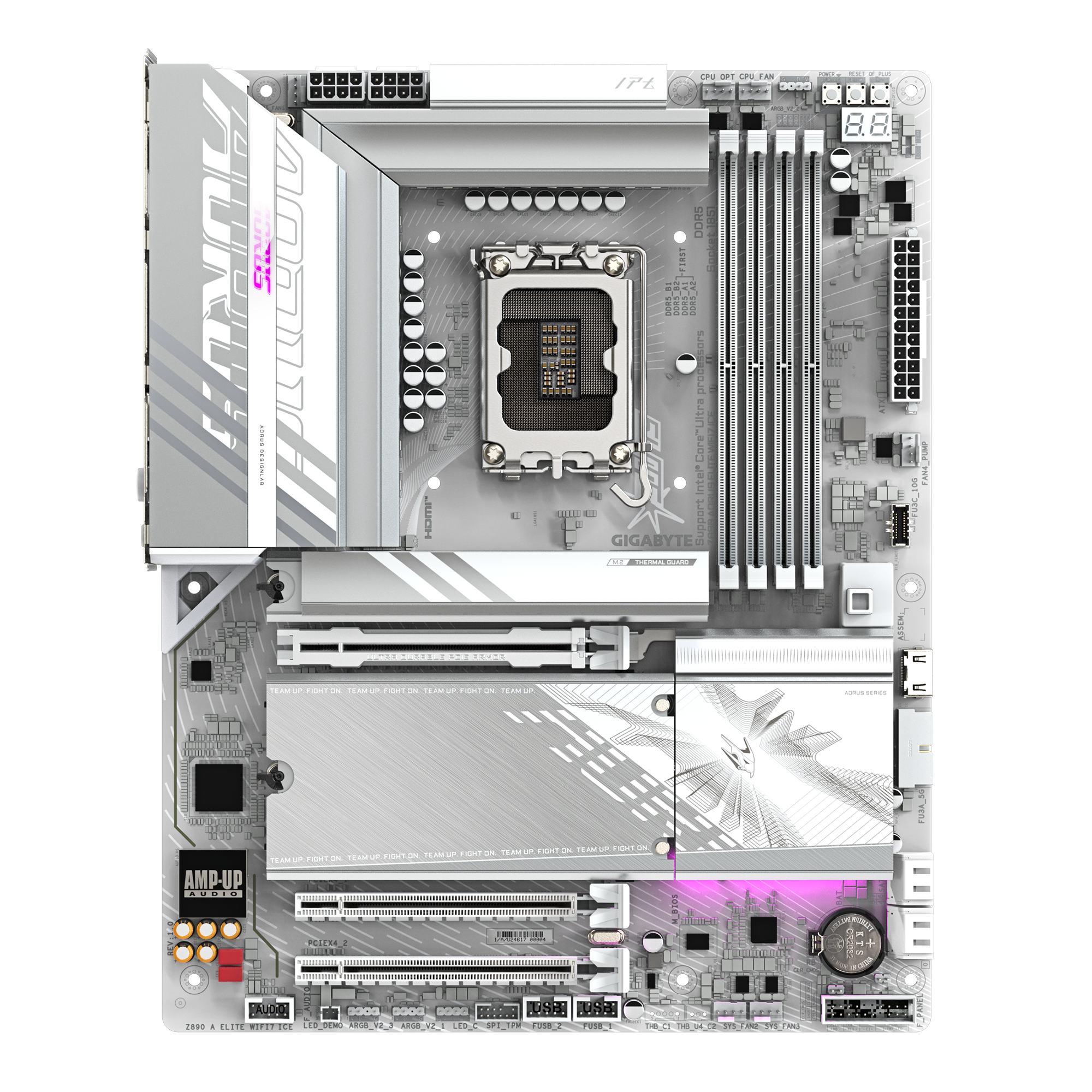

Motherboard GIGABYTE Z890 AORUS ELITE WIFI 7 ICE, LGA 1851
Ref. number: GA-MB-Z890-A-ELITE-WF7-I
Price: 692.03 BGN
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | Z890 A ELITE WF7 ICE |
| Barcode | 4719331865221 |
| CPU Socket |
1851
|
| Chipset |
Intel Z890
|
| CPU supports |
Intel® Core™ Ultra Processors (Series 2)
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
9200(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
|
| Integrated LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
1 x PCIe 5.0 x16 slot
|
| PCI Express x4 |
2
|
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
|
| Connectors |
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
2 x SMA antenna connectors
|
| USB Ports |
3 x USB 3.2 Gen 1
2 x USB 3.2 Gen2
4 x USB 2.0
1 x USB4 port Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
