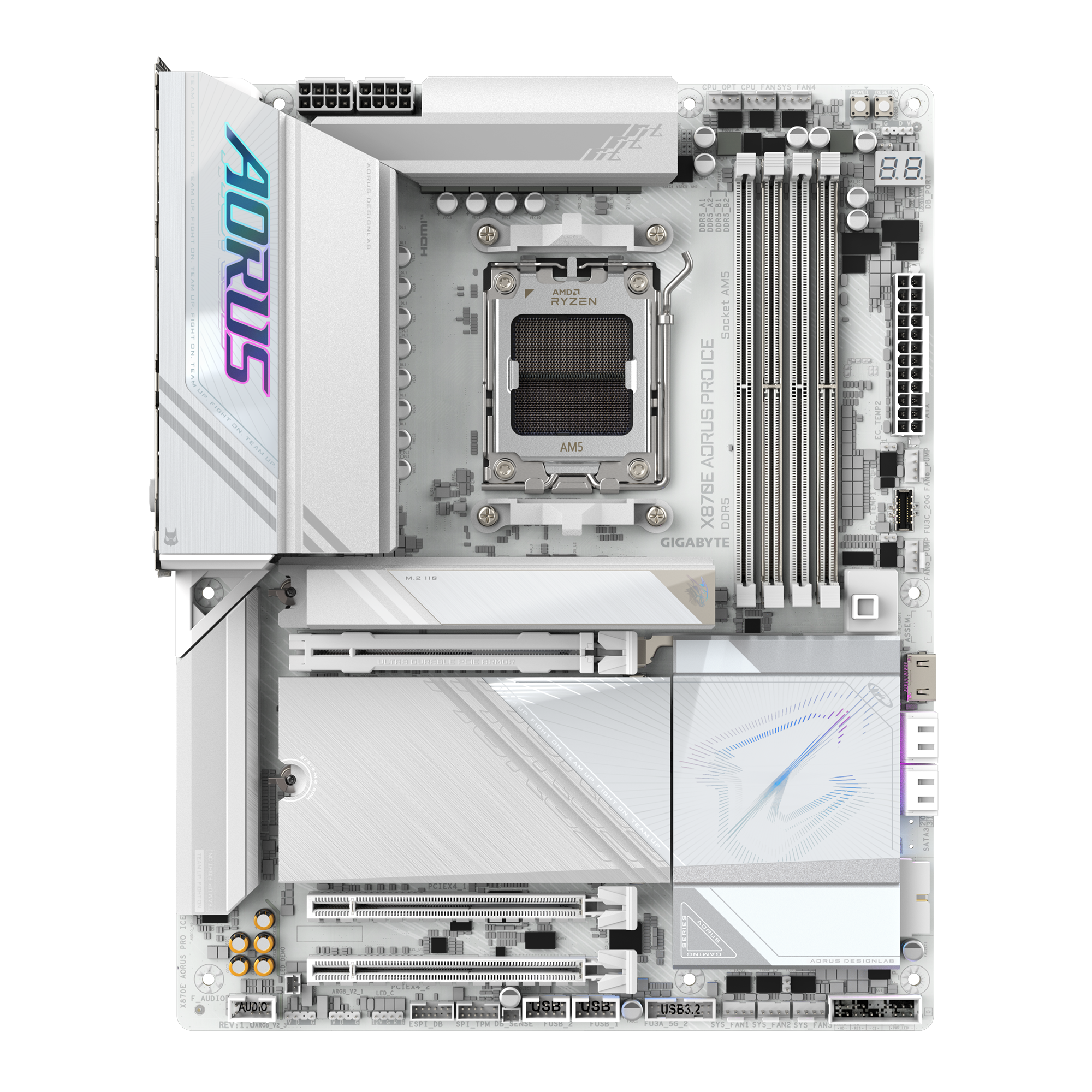

Motherboard GIGABYTE X870E AORUS PRO ICE, Socket AM5
Ref. number: GA-MB-X870E-A-PRO-ICE
Price: 822.71 BGN
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | X870E AORUS PRO ICE |
| Barcode | 4719331864798 |
| CPU Socket |
AM5
|
| Chipset |
AMD X870E
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8000(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC1220
|
| Integrated LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
| Integrated Wi-Fi |
Bluetooth 5.3
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
2 x PCIe 4.0/3.0 x16 (x16, x8/x8)
1 x PCIe 5.0 x16 slot (supports x16 mode)
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSDs
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSDs
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector
2 x 8-pin +12V Power connector
|
| Connectors |
1 x HDMI port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x Q-Flash Plus button
2 x SMA antenna connectors
|
| USB Ports |
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen2
2 x USB 2.0
2 x Thunderbolt 4.0 USB Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
