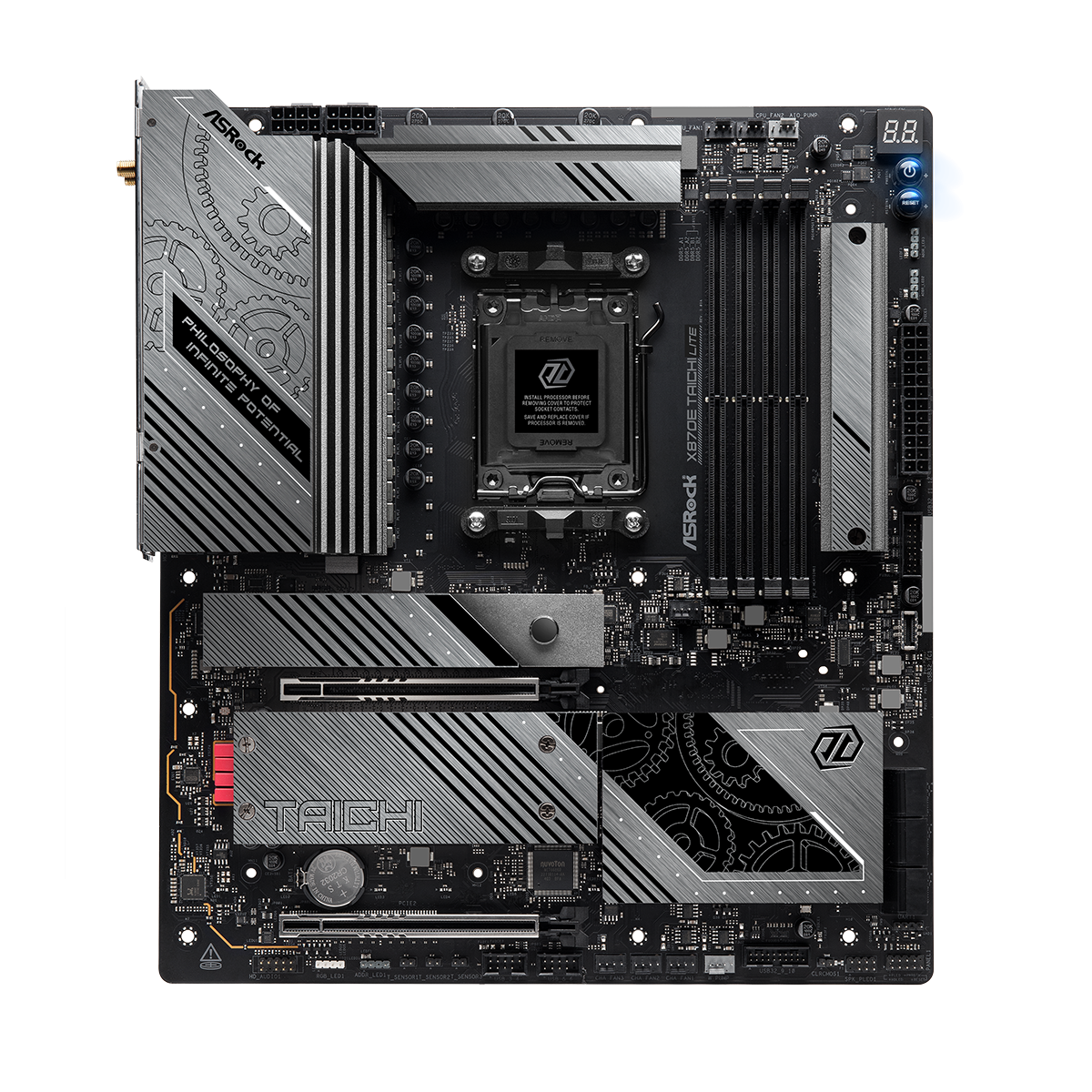

Motherboard ASROCK X870E TAICHI LITE, Socket AM5
Ref. number: ASR-MB-X870E-TAICHI-LITE
Price: 973.90 BGN
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | X870 TAICHI LITE |
| Barcode | 4710483947445 |
| CPU Socket |
AM5
|
| Chipset |
AMD X870E
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8200(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
5.1 Channel HD Audio (Realtek ALC4082 Audio Codec)
|
| Integrated LAN |
5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
|
| Integrated Wi-Fi |
2x2 Wi-Fi 7 (802.11be)
Bluetooth v5.4
|
| PCI-E x16 |
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
6 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
3 x Hyper M.2 Socket (M2_2,3,4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector
2 x 8-pin +12V Power connector
|
| Connectors |
1 x HDMI port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x BIOS Flashback Button
2 x SMA antenna connectors
1 x Clear CMOS button
|
| USB Ports |
2 x USB 2.0
2 x USB4 40Gbps ports Type-C
5 x USB 10Gbps ports Type-A
|
| Dimension |
Extended ATX - 30.5 x 26.7 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
