Description

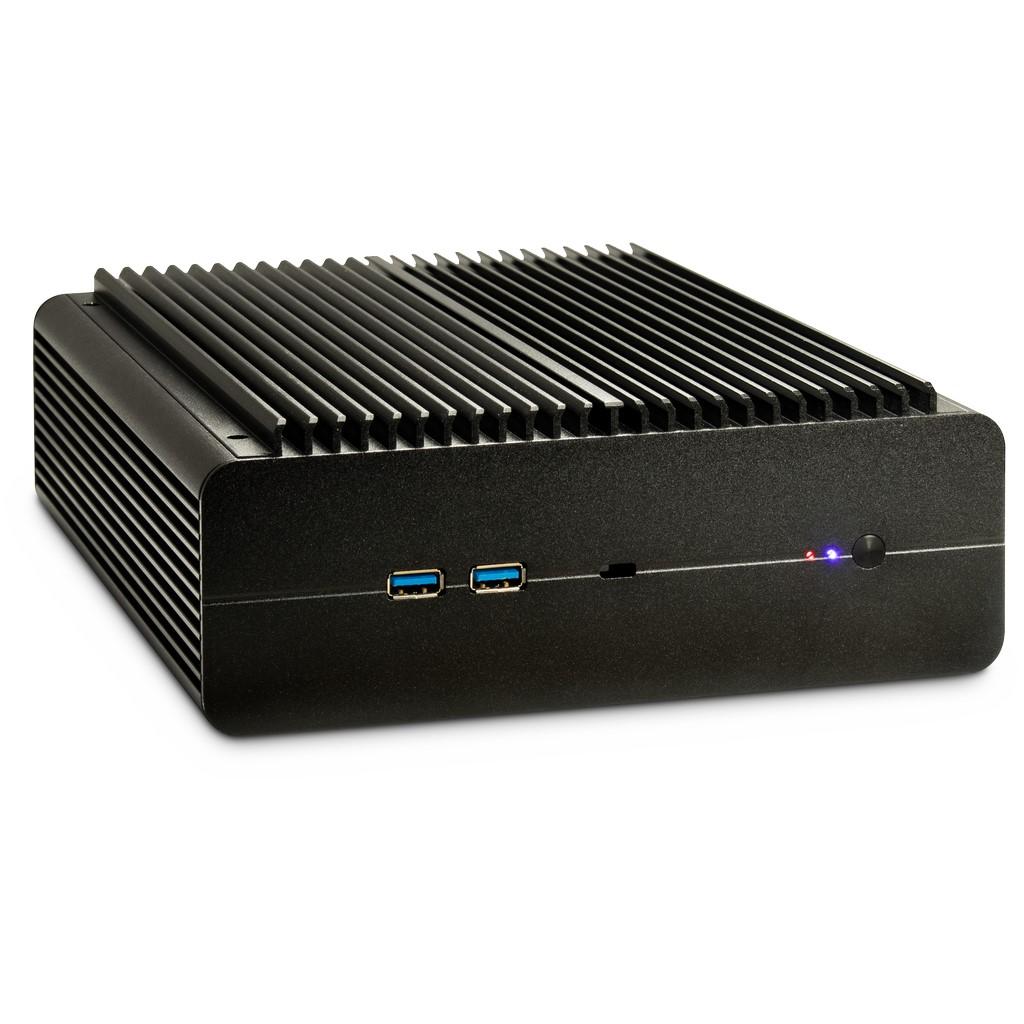

The IP-60 is a case for Mini-ITX mainboards with external power supply and I/O shields in normal height.

Thanks to the closed design and the integrated cooling fins, it is the ideal candidate for a system with
passive cooling. In conjunction with the optional IP-3 cooler, CPUs with a TDP of up to 70W can be installed
and operated entirely without active fan elements. Alternatively, other CPU coolers up to 43mm in height
can also be installed.

The case can be attached to almost any supporting surface (e.g. on the wall) using the standard mounting
brackets, optionally using the additionally available VESA mount behind the monitor or as a standing device
with four feet. Data can also be conveniently uploaded via the two integrated USB 3.0 front connections.

Motherboard:    Mini-ITX
                Maximum board dimensions WxD: 170mm x 170mm , 6.7" x 6.7"
Dimensions (h/w/d):    77 x 210 x 240mm
Max. CPU cooler height:    43mm
Control element:   Power button
Material:   Aluminum
