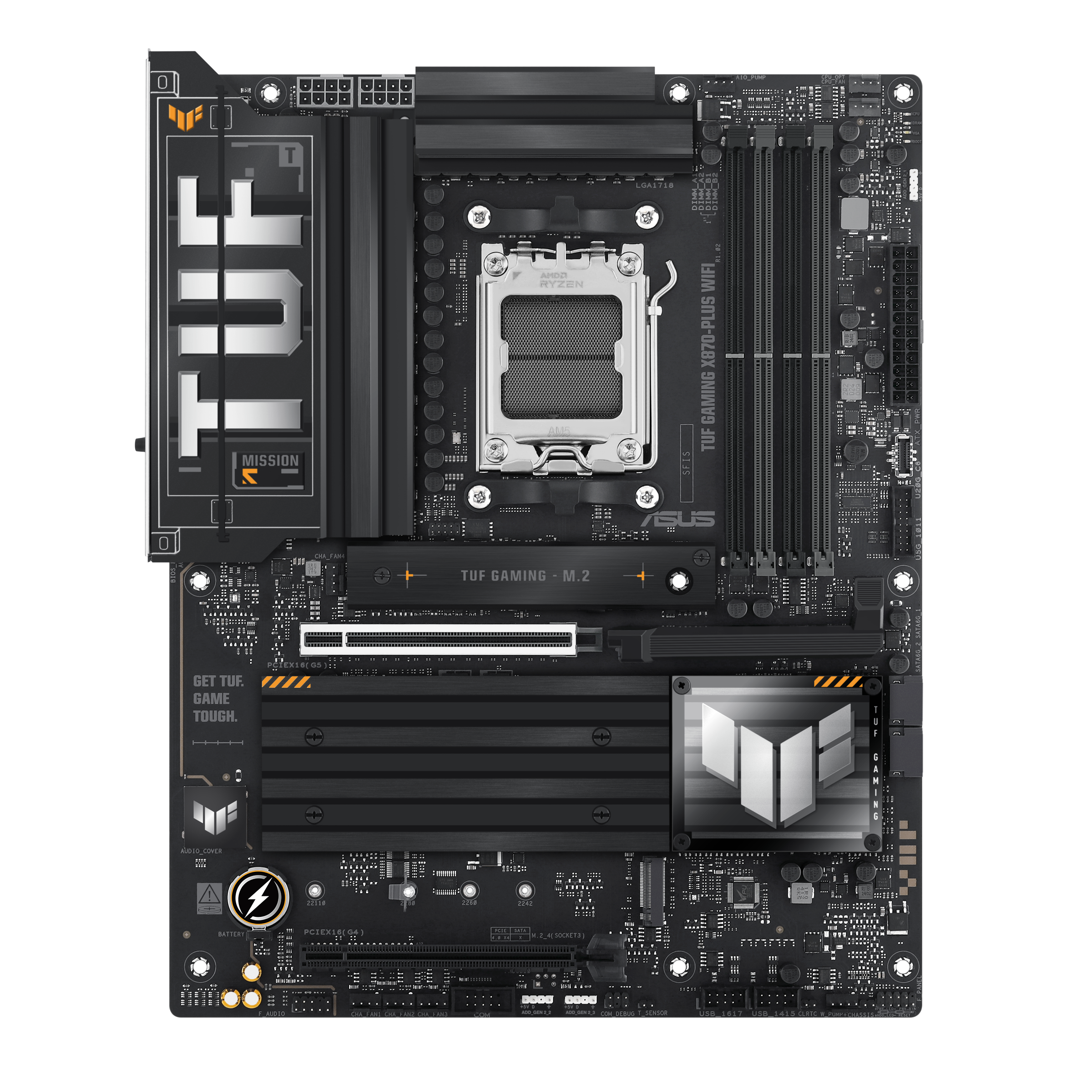

Motherboard ASUS TUF GAMING X870-PLUS WIFI AM5 DDR5
Ref. number: ASUS-MB-TUF-X870-P-WF
Price: 839.81 BGN
Specifications
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1IU0-M0EAY0 |
| Barcode | 4711387723609 |
| CPU Socket |
AM5
|
| Chipset |
AMD X870
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
192 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8000(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
1 x Realtek 2.5Gb Ethernet port
TUF LANGuard
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
1 x PCIe 5.0 x16 slot (supports x16 mode)
2 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
2 x SATA 6.0 Gb/s
|
| M2 socket |
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
|
| Connectors |
1 x HDMI port
1 x RJ-45
5 x Audio jacks
1 x BIOS Flashback Button
1 x Wi-Fi Module
|
| USB Ports |
1 x USB 2.0
3 x USB 10Gbps ports Type-A
2 x USB4 40Gbps ports Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
