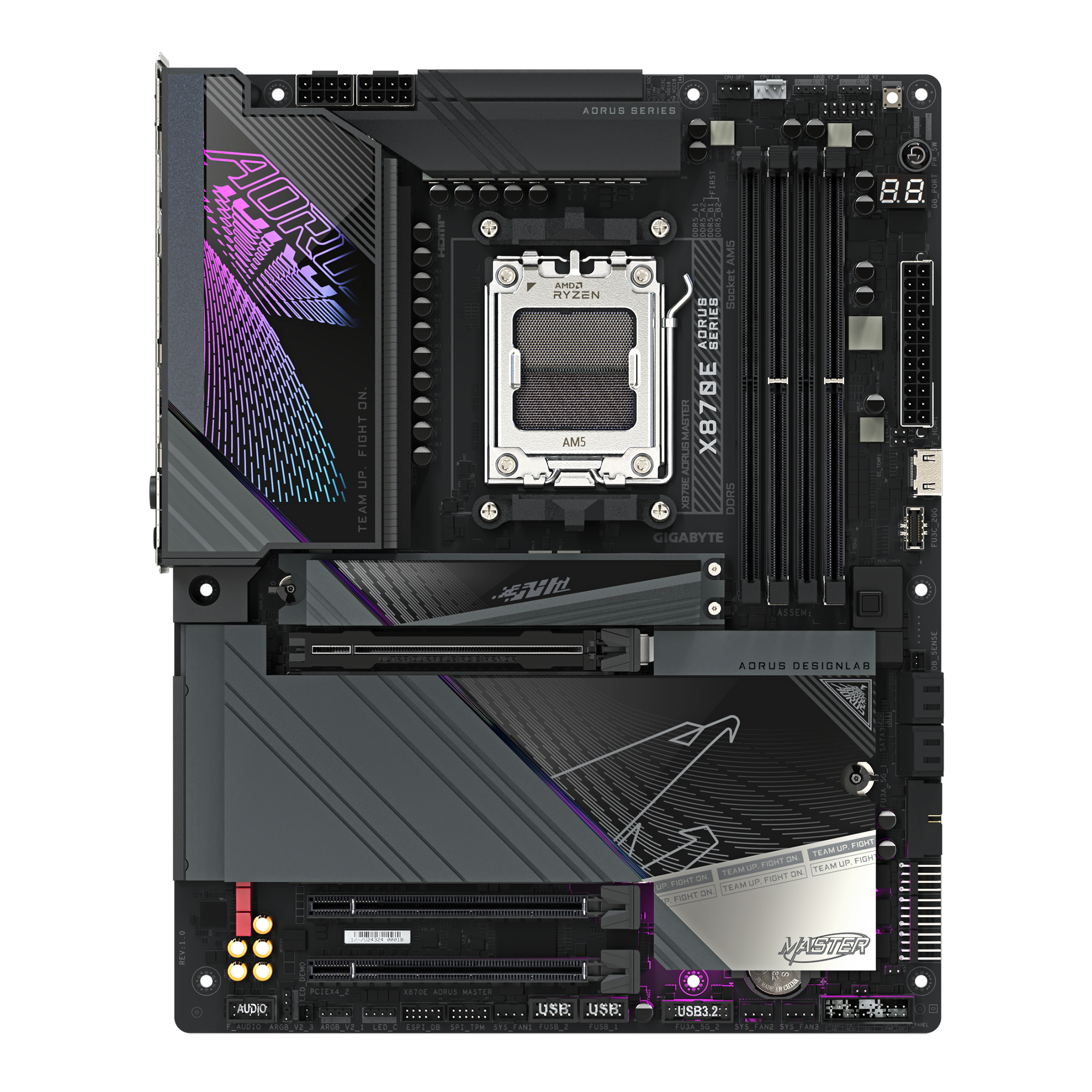

Motherboard GIGABYTE X870E AORUS MASTER, Socket AM5
Ref. number: GA-MB-X870E-AORUS-MASTER
Price: 1240.16 BGN
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | X870E AORUS MASTER |
| Barcode | 4719331864354 |
| CPU Socket |
AM5
|
| Chipset |
AMD X870E
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC1220
Support for DTS:X® Ultra
|
| Integrated LAN |
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
|
| Integrated Wi-Fi |
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
2 x PCIe 4.0/3.0 x16 (x16, x8/x8)
1 x PCIe 5.0 x16 slot (supports x16 mode)
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
6 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector
2 x 8-pin +12V Power connector
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x Q-Flash Plus button
2 x SMA antenna connectors
1 x Clear CMOS button
|
| USB Ports |
4 x USB 3.2 Gen 1
4 x USB 3.2 Gen 2
2 x USB 2.0
2 x USB 3.2 Gen 2 Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
