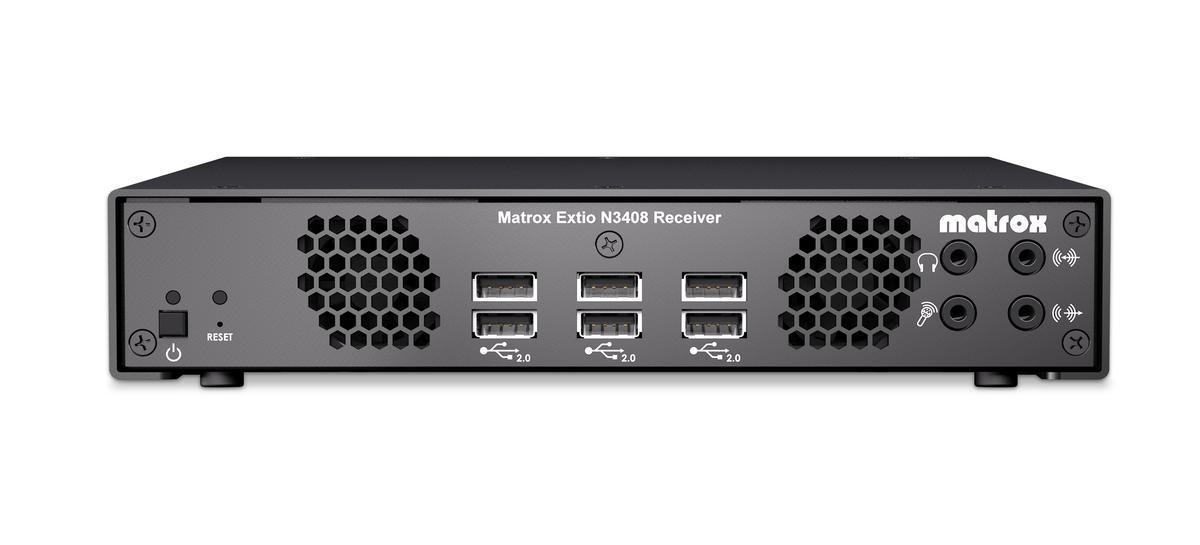

Description

Matrox Extio N3408 IP KVM extenders deliver 4K/UHD performance or quad-monitor capabilities over
standard Gigabit Ethernet at ultra-low bitrates. Easy to set up, Extio N3408 can be configured as
a point-to-point or networked KVM extender to deliver multiple video, keyboard, mouse, USB 2.0,
and audio signals using a single fiber optic or copper cable. Aggregated and seamless control of
multiple systems from a remote display station with a single keyboard and mouse set leads to efficient
operations and increased productivity. TAA compliant SKU available.

Video Output:   3x DisplayPort 1.1
                1x DisplayPort 1.2
Link Connector:   1x RJ45 network port
                  1x SFP cage (optional RJ45 or Fiber-optic transceiver)
USB Ports:   6x USB 2.0 (Type A)
Audio Input:   Line in 3.5 mm
Audio Output:   Line out 3.5 mm
RS-232:   1x 9-pin D-type (male)
Product Dimensions:   18.9 x 4.26 x 21.66 cm

USB Support:    High Speed USB 2.0
Maximum Distance on Copper Cables (Point-to-Point):   Cat5e, Cat6—100 m (328 ft)
Maximum Distance on Fiber-Optic Cables (Point-to-Point):
           OM2, OM3, OM4 (50/125μm) multi-mode - 550 m (1804 ft.)
           OM1 (62.5/125μm) multi-mode - 275 m (902 ft.)
           OS1, OS2 (9/125μm) single-mode - 10 km (6.20 mi)
Network Standard:   1,000 base-T Ethernet
                    Auto-detect
                    Half/full duplex
IP Addressing:   IPv4 or IPv6
                 DHCP (default) and static IP
