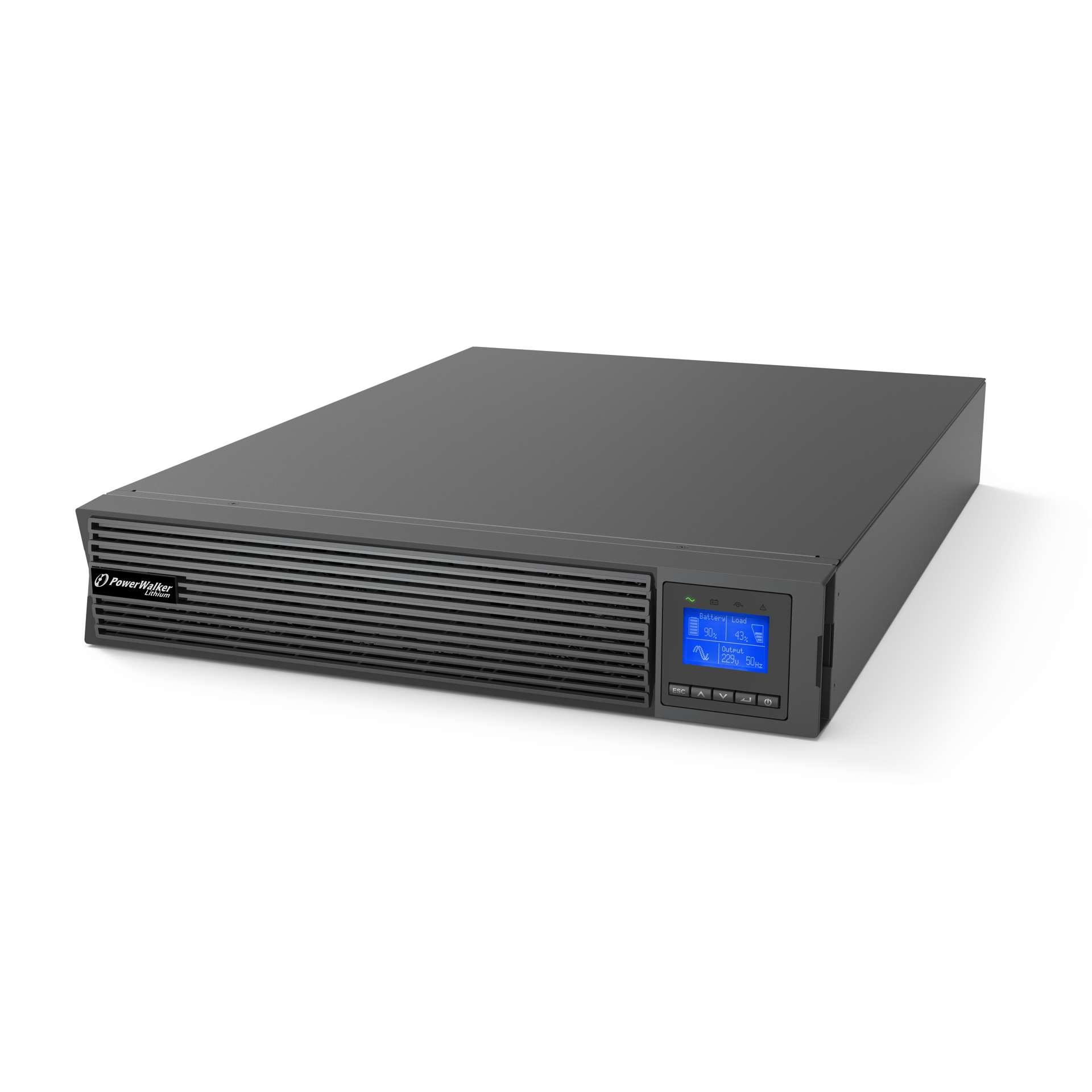

UPS POWERWALKER VFI 3000 LICR IoT PF1 PF1 3000 VA/ 3000 W On-Line - WITH LITHIUM BATTERY!
Ref. number: POWER-UPS-VFI3000LICR-IoT
Price: 4426.98 BGN
Specifications
| Manufacturer | POWERWALKER |
| Warranty | 24 months |
| Barcode | 4260074984910 |
| Type |
On-line
|
| Form Factor |
Rack, 2U
|
| Capacity |
3000 VA/ 3000 W PF 1.0
|
| Input Voltage |
110-300 VAC
|
| Nominal Output Voltage |
200/208/220/230/240 VAC
|
| Batteries |
1x 76.0V/9.0Ah
|
| DC Voltage |
1x 76.0V
|
| Compatible Battery Type |
Lithium Batteries
|
| Backup Time |
Full Load - 10 min, 50% Half Load - 20 min
|
| Input Connections |
C14
|
| Output Connections |
8x IEC C13
|
| Front Panel |
LCD
|
| Waveform |
Pure Sine Wave
|
| IEC 62040-3 Classification |
VFI-SS-111
|
| External Battery Connection |
Optional Battery Pack
|
| Communication |
Dry contact, RS-232, WLAN Port – for Internet Connection, Management Card Slot, RJ-45 – for Internet Connection
|
| Noise Level |
< 40dB
|
| Frequency Range(Output) |
±0,2Hz (battery mode)
|
| Alarm |
Yes
|
| Software |
Winpower
|
| Dimension |
608 x 438 x 86 mm
|
| Sound Alarm | |
| Number of batteries | |
| Recharge Time | |
| Overload Protection | |
| UPS capacity |
3000 W
|
| Type UPS |
With management
|
Description
The PowerWalkerVFI 1000-3000 LICR IoT series is the next generation of UPS and offers an intuitive app for remote monitoring via the cloud. The UPS features Level 3 LFP (lithium ferrophosphate or lithium iron phosphate – LiFePO 4) battery system with Industry-leading BMS reliability.
- Output power factor 1
- Industry-leading BMS reliability
- Built-in cloud connection
- Up to 4 hot-swappabe battery modules
- Lower TCO (Total Cost of Ownership) than lead-acid battery
- Compact 2U UPS + 1U EBM design
- LFP lithium battery system with advanced BMS
- Long backup time with up to 4 optional EBM cabinets
- The battery is certificated according to safety standards of UN 38.3, UL 1973, UL 1642, IEC 62619, and IEC 62133
- SOC and SOH management for keeping the battery life longer and the cost lower
- Advanced internal cell / pack / EBM balancing and protection ensures backup time and battery life
- Multi-level protection in cell and battery pack level to ensure safety and reliability;
- Generator compatible;
- A wide range of optional accessories such as external battery packs, communication cards, WLAN adapter, etc.
For more information: www.powerwalker.com
