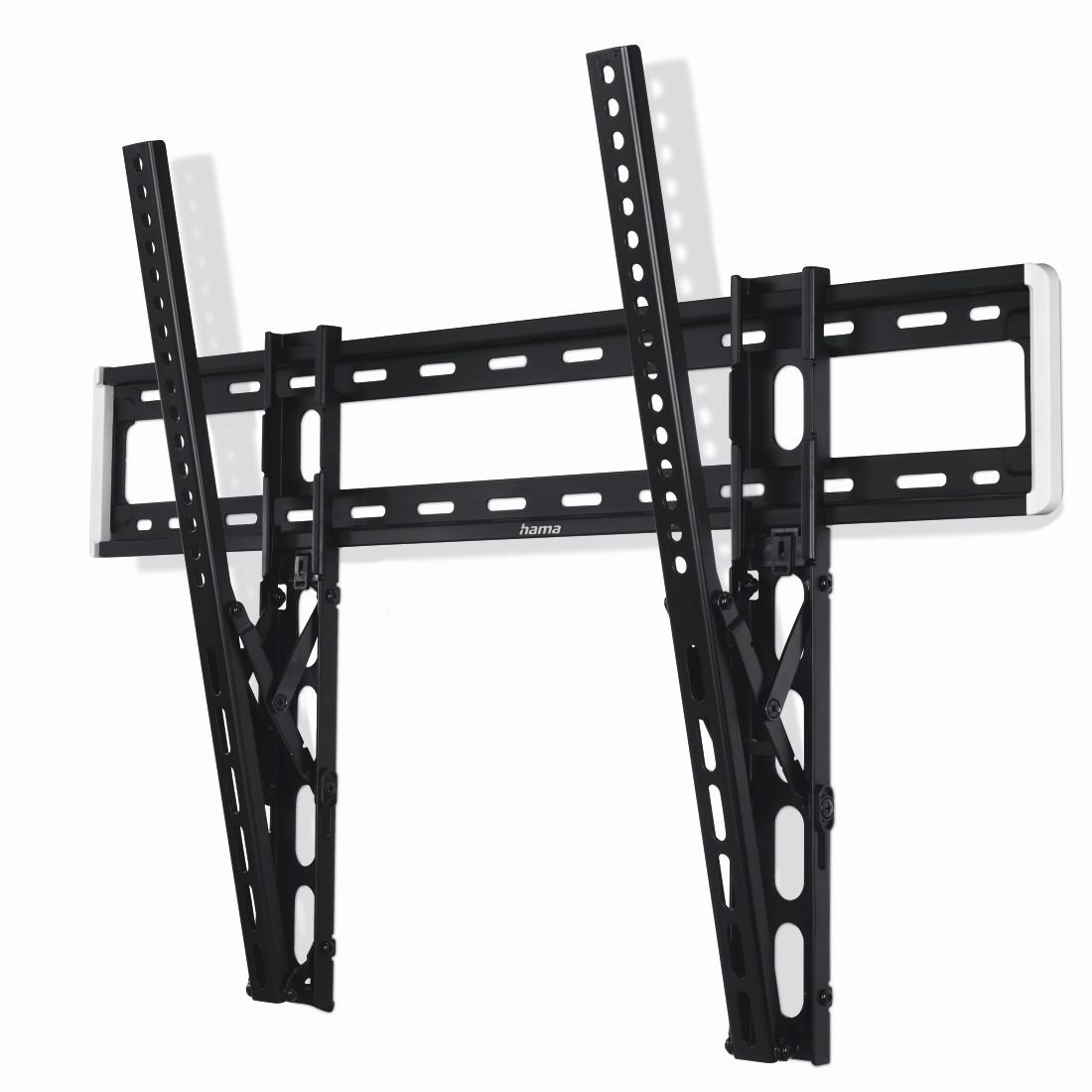

Hama TV Wall Bracket, Tilt, 254 cm (100") up to 75 kg, 220818
Specifications
| Manufacturer | HAMA |
| Warranty | 12 months |
| Product code | 220818 |
| Barcode | 4047443509444 |
| Type |
TV
|
| Version |
Motion
|
| Screen Size min. (inch) |
46 inch
|
| Screen Size max. (inch) |
100 inch
|
| VESA Standard |
100 x 100
200 x 100
200 x 200
200 x 300
300 x 300
300 x 400
400 x 200
400 x 300
400 x 400
500 x 400
600 x 200
600 x 300
600 x 400
600 x 500
600 x 600
700 x 400
800 x 200
800 x 400
800 x 500
800 x 600
|
| Weight Capacity (kg) |
75 Kg
|
| Swivel Range |
0°
|
| Tilt |
0 / 12°
|
| Outside Dimension Depth (mm) |
28
|
| Colour |
Black
|
| Mounting |
Wall
|
Description
Maximum Load Capacity 75 kg
Model TV
number of joints 0
Rotation 0 °
Tilt +/- 0 / 12 °
Size & Weight External Dimension (Height) 63 cm
External Dimension (Width) 91.3 cm
Mounting Plate (Length) 15.2 cm
Mounting Plate (Width) 91.3 cm
Screen Dimensions 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 147 cm (58"), 152 cm (60"), 163 cm (64"), 165 cm (65"), 178 cm (70"), 191 cm (75"), 198 cm (78"), 200 cm (79"), 203 cm (80"), 213 cm (84"), 216 cm (85"), 228,6 cm (90"), 247,65 cm (97,5"), 248,92 cm (98"), 254 cm (100")
VESA (from-to) 100x100 - 800x600
VESA Standard 100 x 100, 200 x 100, 200 x 200, 200 x 300, 300 x 100, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 400, 600 x 200, 600 x 300, 600 x 400, 600 x 500, 600 x 600, 800 x 200, 800 x 400, 800 x 500, 800 x 600
Wall Spacing 2.8 cm
Field of Application Field of Application Private
Recommended Maximum Screen Size 254 cm (100")
Recommended Minimum Screen Size 117 cm (46")
Recommended Screen Size 117 - 254 cm (46" - 100")
