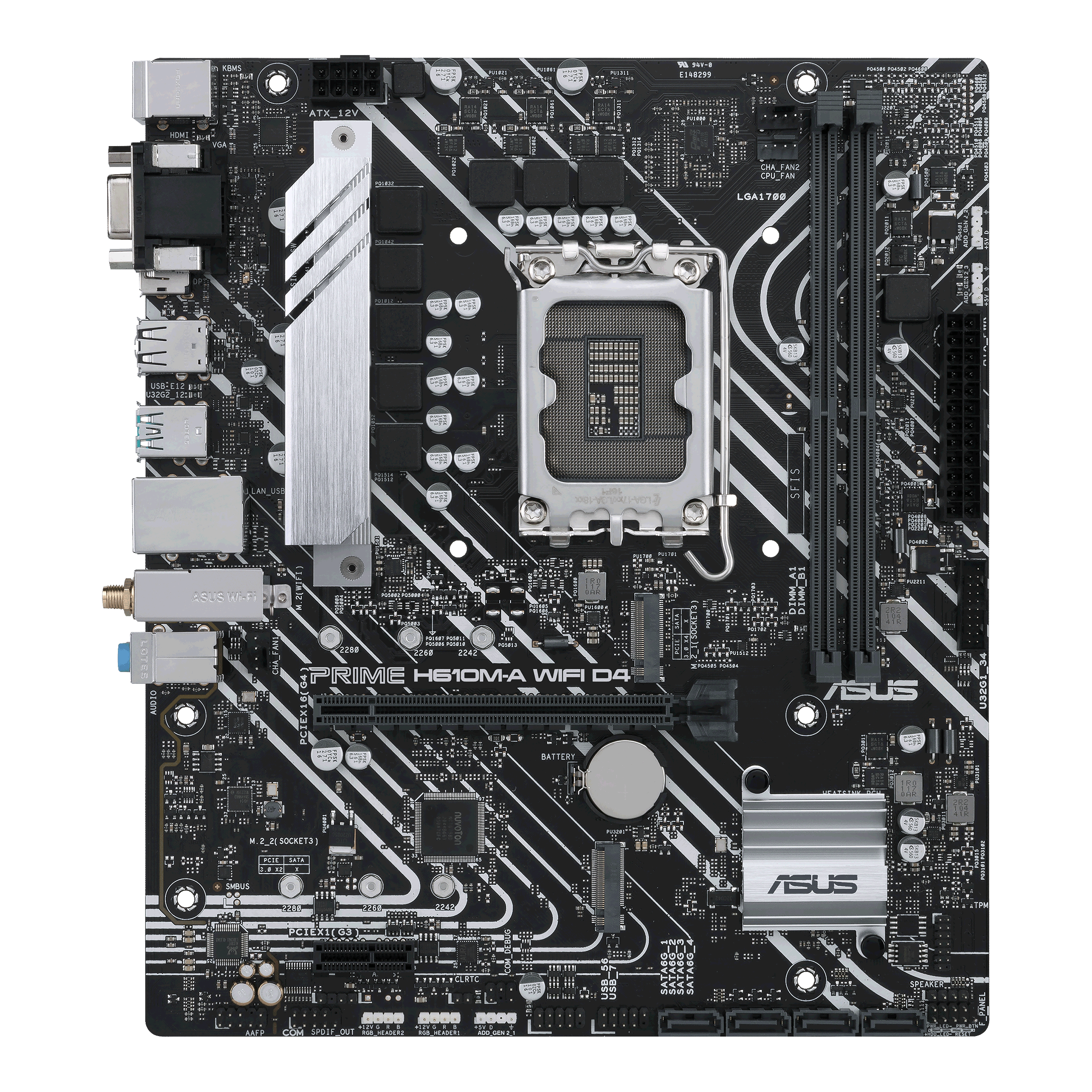

Motherboard ASUS PRIME H610M-A WIFI D4, LGA 1700 mATX
Manufacturer | ASUS |
Warranty | 36 months |
Product code | 90MB1C80-M0EAY0 |
Barcode | 4711081758211 |
CPU Socket |
1700
|
Chipset |
Intel H610
|
CPU supports |
12th Generation Intel
13th Generation Intel
14th Generation Intel
|
Memory Standard |
DDR4
|
Maximum Memory Supported |
64 GB
|
Number of Memory Slots |
2
|
Frequency Memory |
3200 MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
|
Integrated LAN |
10/100/1000 Mbps
|
Integrated Wi-Fi |
Wi-Fi 5 (802.11 a/b/g/n/ac)
Bluetooth v5.0
|
PCI-E x16 |
1
|
PCI Express x4 | |
PCI-E x1 |
1
|
PCI-E slots | |
Interface Serial ATA |
4 x SATA 6Gb/s
|
M2 socket |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
|
Raid support | |
Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|
Connectors |
1 x VGA
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x PS/2 Keyboard
1 x PS/2 Mouse
3 x Audio jacks
|
USB Ports |
2 x USB 3.2 Gen2
4 x USB 2.0
|
Dimension |
Micro ATX - 24.4 x 21.1 cm
|
Other |
128 Mb Flash ROM, UEFI AMI BIOS
|
Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel® 1 Gb Ethernet, WIFI 5, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Arua Sync
