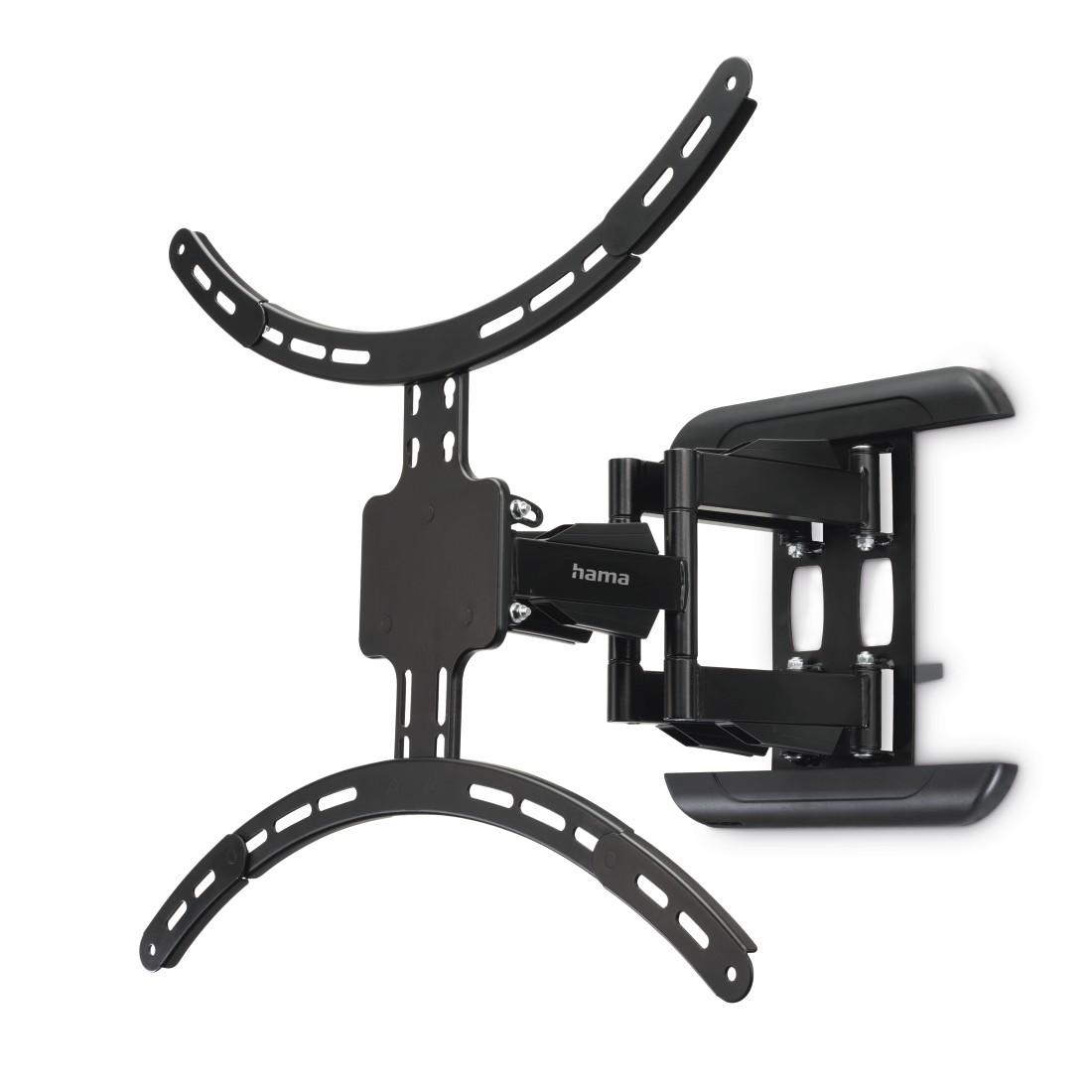

Hama TV Wall Bracket, Swivel, Tilt, Pull-out, 229 cm (90"), 220837
Ref. number: HAMA-220837
Price: 170.74 BGN
Specifications
| Manufacturer | HAMA |
| Warranty | 24 months |
| Product code | 220837 |
| Barcode | 4047443509543 |
| Type |
TV
|
| Version |
Motion
|
| Screen Size min. (inch) |
37 inch
|
| Screen Size max. (inch) |
90 inch
|
| VESA Standard |
200 x 200
200 x 300
200 x 400
300 x 100
300 x 200
300 x 300
400 x 200
400 x 300
400 x 400
600 x 400
600 x 500
|
| Weight |
9.455 kg
|
| Weight Capacity (kg) |
50 Kg
|
| Swivel Range |
3°
|
| Tilt |
2 / 12°
|
| Outside Dimension Depth (mm) |
6.6 - 43.8 cm
|
| Colour |
Black
|
| Mounting |
Wall
|
Description
Maximum load capacity 50 kg
number of joints 5
Max. Distance from the wall: 43.8 cm
Min. Distance from the wall: 6.6 cm
Rotation: 3 °
Rotation range: 120 °
Tilt: +/- 2 / 12 °
Outer dimension (height): 55.6 cm
Outer dimension (width): 63.7 cm
Mounting plate (length): 35 cm
Mounting plate (width): 43.7 cm
VESA (from-to) 200x200 - 600x500
VESA standard 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 400, 600 x 500
Recommended screen size 94 - 229 cm (37" - 90")
