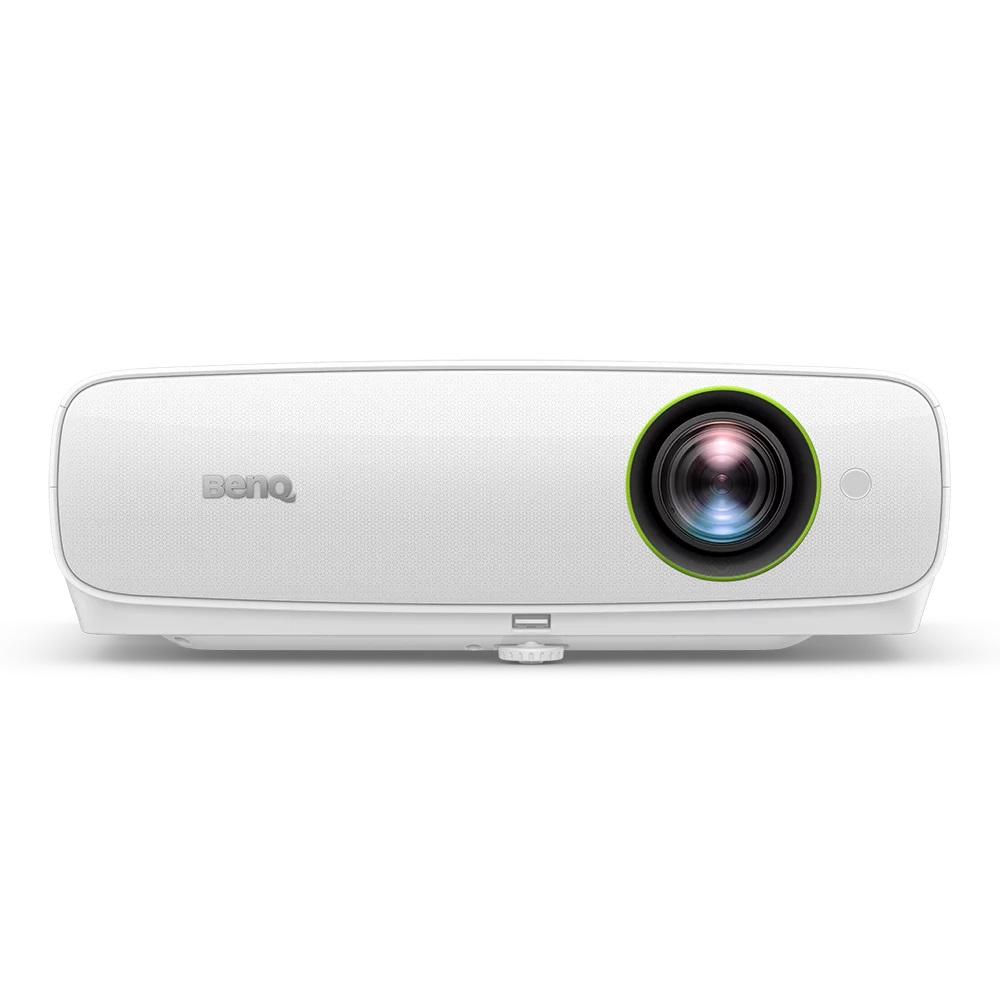

Projector BenQ EH620, DLP, Smart, 3000 ANSI, Built-in Windows 11 IoT Enterprise OS
Specifications
| Manufacturer | BenQ |
| Warranty | 36 months |
| Product code | 9H.JPT77.34E |
| Barcode | 4718755087998 |
| Technology |
DLP
|
| Light Source |
Lamp
|
| Type |
Home Movie Projector
|
| Brightness (ANSI lumens) |
3400 lm
|
| Aspect Ratio |
16:9
|
| Native Resolution |
1920 x 1080
|
| Resolution Support |
VGA (640 x 480) to FND(1920 x 1080)
|
| Contrast |
15000:1
|
| Short Throw |
No
|
| Projection Distance |
Normally
|
| Min. Diagonal (m) |
30"
|
| Max. Diagonal (m) |
300"
|
| Lamp Life (hours) |
3000 hours (normal mode), 4000 hours (eco mode)
|
| Features | |
| Horizontal Scan Rate (kHz) |
15 - 102
|
| Vertical Scan Rate |
23 - 120
|
| Interface |
HDMIx2, VGA, 3.5 mm jack, RS232, USB Mini-B
|
| Displayable Color |
1.07 Billion
|
| Speakers |
2 x 5W
|
| Remote Control |
Yes
|
| Power Consumption |
350 W
|
| Noise Level |
32 dB normal;30 dB eco
|
| Other | |
| 3D |
Yes
|
| LAN |
Yes
|
| 4K |
No
|
| Dimensions |
380 x 127 x 263 mm
|
| Accessories |
Description
Projection System: DLP
Brightness (ANSI lumens): 3400
Native Resolution: 1080P (1920x1080)
Native Aspect Ratio: 16:9
Contrast Ratio (FOFO): 15000:1
Display Color: 30-bit (1.07 billion colors)
Light Source: Lamp
Light Source Life: a. Normal 4000 hrs, b. ECO 10000 hrs, c. SmartEco 15000 hrs
Throw Ratio: 1.13~1.47
Zoom Ratio: 1.3x
Projection Offset (Full-Height): 105%
Keystone Adjustment: 1D, (Auto) Vertical ± 40 degrees
Resolution Support: VGA(640 x 480) to Full HD(1920 x 1080)
I/O Interface
PC in (D-sub 15pin): (x1)
Monitor out (D-sub 15pin): (x1)
HDMI in: (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
LAN (RJ45): (x1)
USB Type A: USB Type A-1 (3.0/Power Supply1.5A), USB Type A-2 (3.0/Power Supply1.0A),
USB Type A-3 (3.0/Power Supply1.0A), USB Type A-4(2.0),
USB Type A-5 (2.0/Power Supply 0.9A)
USB Type Mini B: (x1)
RS232 in (DB-9pin): (x1)
Audio
Speaker: (x2), 5W
Audio in (3.5mm Mini Jack): (x1)
Audio out (3.5mm Mini Jack): (x1)
Dimensions (WxHxD) (mm): 380 x 127 x 263
Net Weight (kg): 4.2
