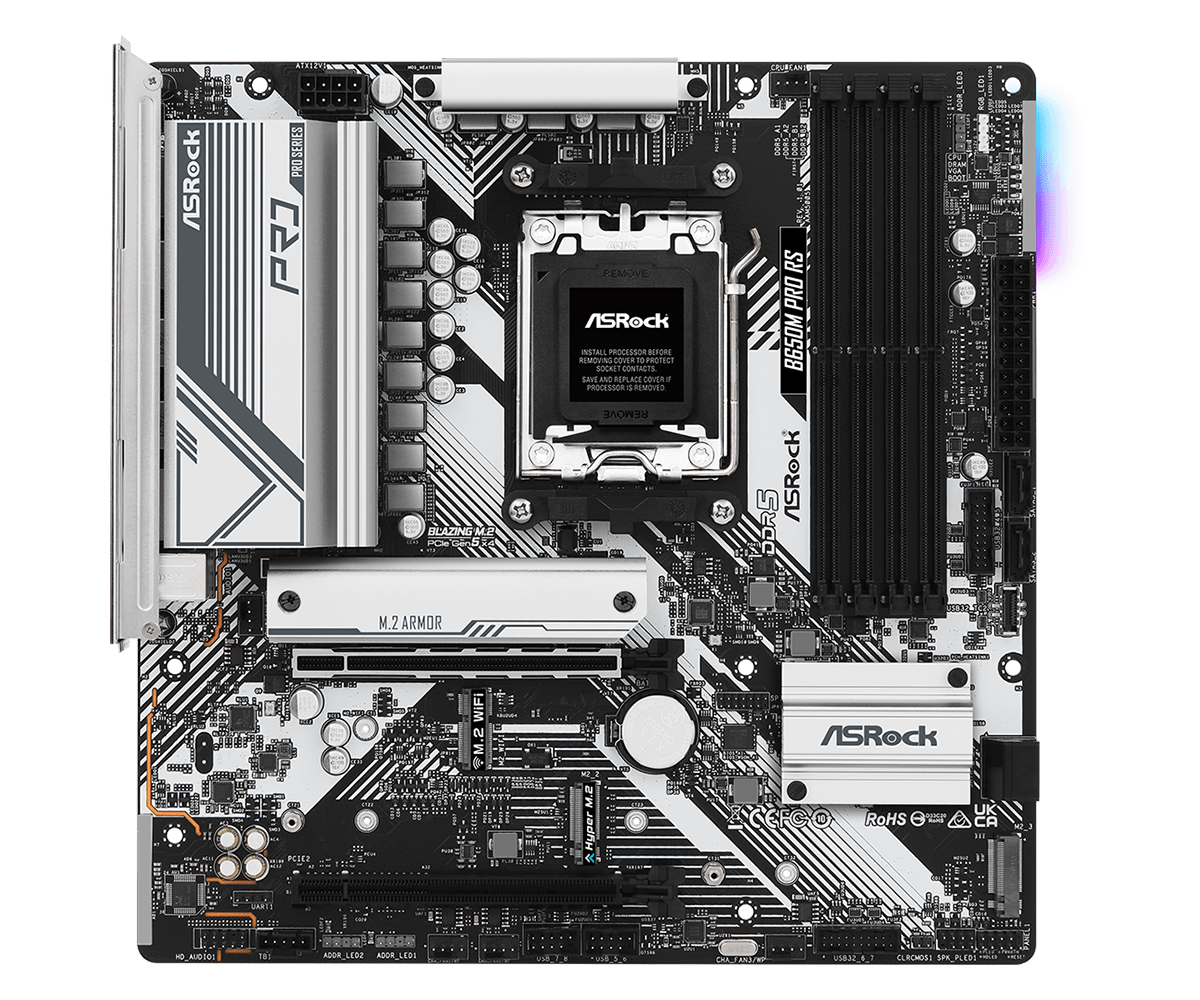

Motherboard ASRock B650M PRO RS
Ref. number: ASR-MB-B650M-PRO-RS
Price: 309.78 BGN
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B650M PRO RS |
| Barcode | 4710483943096 |
| CPU Socket |
AM5
|
| Chipset |
AMD B650
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
192 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
7200(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
1 x Realtek 2.5Gb Ethernet port
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 4.0 x16 (x16 mode)
|
| PCI Express x4 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s)
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s)
1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s)
|
| Raid support |
0,1,10
RAID 0/1/10 for M.2 NVMe
|
| Power Connector |
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
3 x Audio jacks
1 x BIOS Flashback Button
|
| USB Ports |
1 x USB 3.2 Gen2 Type-C
3 x USB 3.2 Gen 1
4 x USB 2.0
|
| Dimension |
Micro ATX - 24.4 x 24.4 cm
|
| Other |
Description
Motherboard ASRock B650M PRO RS socket AM5, 4xDDR5
- Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors
- 8+2+1 Power Phase, Dr.MOS
- Supports DDR5 7200+ MHz (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4)
1 Hyper M.2 (PCIe Gen4 x4)
1 M.2 (PCIe Gen4 x2) - 1 USB 3.2 Gen2 Type A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - Dragon 2.5G LAN
