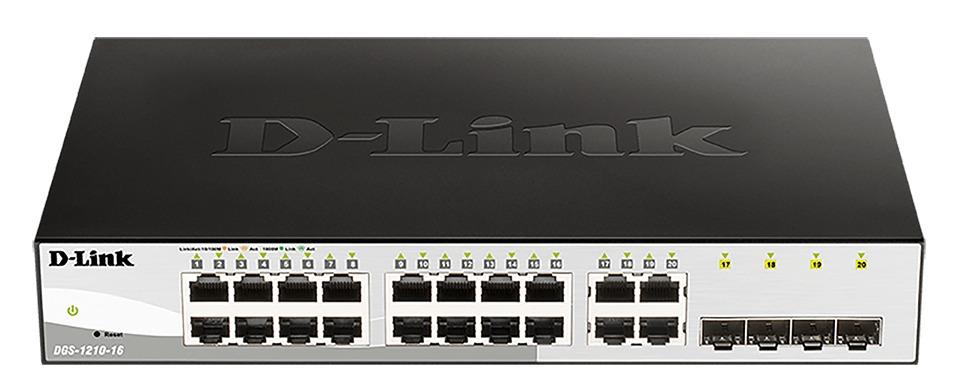

16-port 10/100/1000 Gigabit Smart Switch including 4 Combo 1000BaseT/SFP, DGS-1210-16/E
Specifications
| Manufacturer | D-Link |
| Warranty | Lifetime |
| Product code | DGS-1210-16/E |
| Barcode | 790069467738 |
| Ports |
16-port 10/100/1000 Gigabit Smart Switch including 4 Combo 1000BaseT/SFP
|
| Standard |
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
|
| Power supply |
100 to 240V/AC, 50 to 60Hz
|
| Security |
Port Security; Supports up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control; Static MAC; D-Link Safeguard Engine; DHCP Server Screening; Trusted Host; ARP Spoofing Prevention; Max. 64 entries; SSL; Supports v1/v2/v3; Supports IPv4/I
|
| Management |
Web-based GUI; Telnet Server; TFTP Client; IPv6 Neighbor Discovery; Configurable MDI/MDIX; SNMP; Supports v1, v2, v3; SNMP Trp; System Log; BootP/DHCP Client; D-Link Network Assistant support; SNTP; ICMPv6; IPv4/v6 Dual Stack; DHCP Auto Configuration; RM
|
| Rack-mount |
Yes
|
| Power consumption (W) |
13.02 W
|
| Dimension |
280 x 180 x 44 mm
|
| Other |
MAC address table: 8K
|
Description
- 16 x 10/100/1000Mbps Auto-Negotiating Ports
- 4 x Combo 1000BaseT/SFP port
- Jumbo frames up to 13000Bytes
- 16K MAC addresses
- 802.3az Energy Efficient Ethernet (EEE) by port power saving in idle mode
- dlink|green 3.0, advanced power saving by schedule
- Half-/Full-Duplex, auto-negotiation, Auto MDI/MDIX
- IEEE 802.3x Flow Control
- 802.3ad Link Aggregation
- Asymmetric VLAN, Auto Voice/Surveillance VLAN
- Traffic Segmentation
- 802.1p priority queues
- MAC/IP filtering
- MAC/IP-based ACL
- 802.1X port-base Access Control, Port Security
- D-Link Safequare Engine
- Static Routing and Default Route
- IPv6 Ready
- D-Link Network Assistant Utility (DNA) from firmware ver. 4.1, web based management, compact CLI
- D-View 6.0 support
- 0 - 50°C operating temperature
- Fanless design
- 19"" Rackmount Installation
- Firmware Release 7 not backwards compatible to Hardware Version D1/D2"
