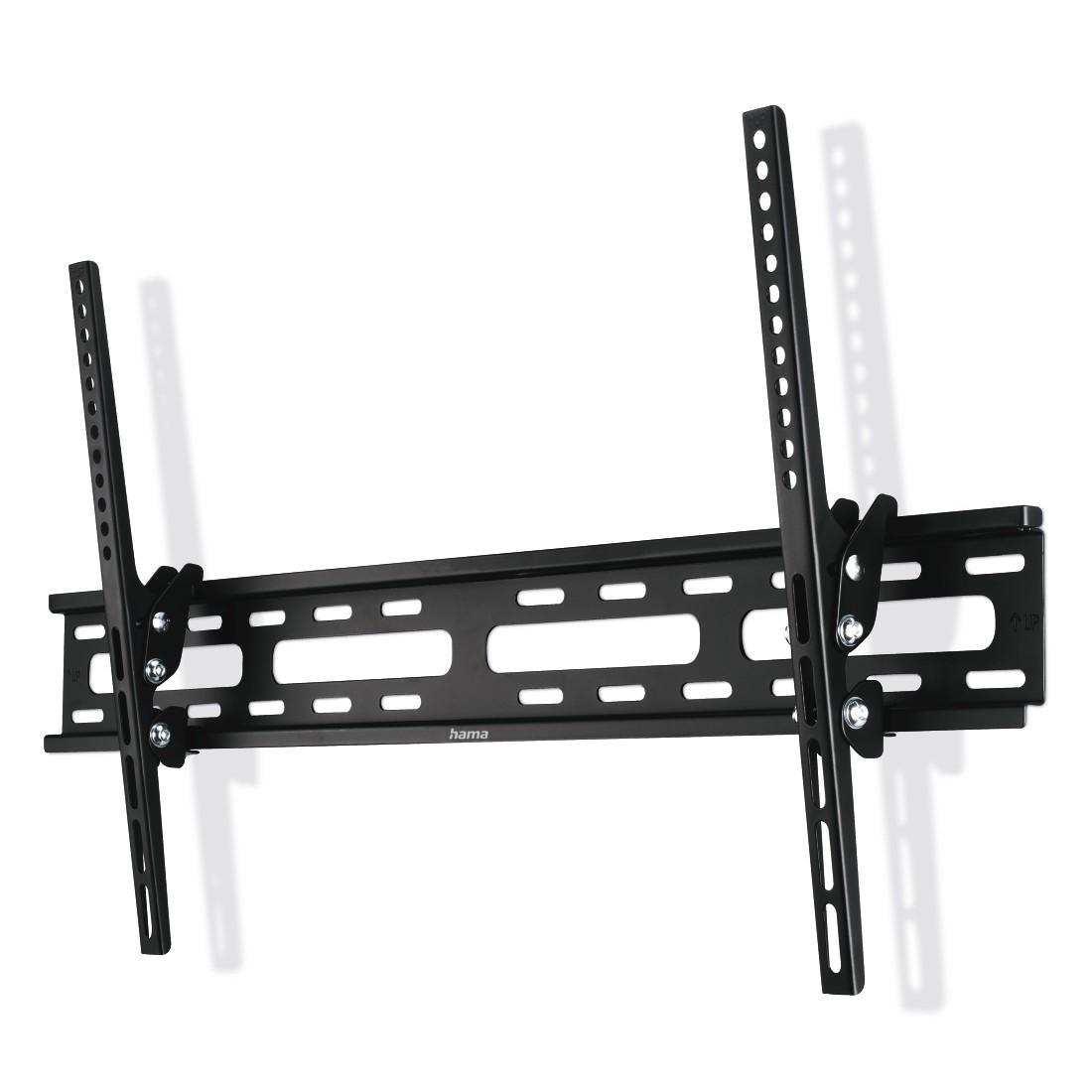

Hama TV Wall Bracket, Tilt, 191 cm (75"), 220816
Specifications
| Manufacturer | HAMA |
| Warranty | 12 months |
| Product code | 220816 |
| Barcode | 4047443509413 |
| Type |
TV
|
| Version |
Motion
|
| Screen Size min. (inch) |
37 inch
|
| Screen Size max. (inch) |
75 inch
|
| VESA Standard |
50 x 50
75 x 75
100 x 100
200 x 100
200 x 200
300 x 100
300 x 200
300 x 300
300 x 400
400 x 200
400 x 300
400 x 400
500 x 400
600 x 200
600 x 300
600 x 400
800 x 200
800 x 400
|
| Weight Capacity (kg) |
60 Kg
|
| Swivel Range |
0°
|
| Tilt |
5 / 15°
|
| Outside Dimension Depth (mm) |
52
|
| Colour |
Black
|
| Mounting |
Wall
|
Description
Material: Metal
Model: TV
Rotation: 0°
VESA (from-to): 50x50 - 800x400
Outside Dimension Depth (from): 5.2 cm
Outside Dimension Depth (to): 5.2 cm
External Dimension (Height): 43 cm
External Dimension (Width): 84.5 cm
Mounting Plate (Length): 84.5 cm
Mounting Plate (Width): 10.5 cm
Maximum Load Capacity: 60 kg
Recommended Screen Size: 94 - 190 cm (37" - 75")
Version: Motion
- For the installation of flat screen TVs with a screen size from 94 cm to 190 cm (37" to 75")
- Easy-Fix system for simple and fully adjustable orientation of your TV
- Allows optimal positioning of the flat screen in every room
- Supports all VESA standards up to 800 x 400
- +5/-15° continuous tilt
