Description

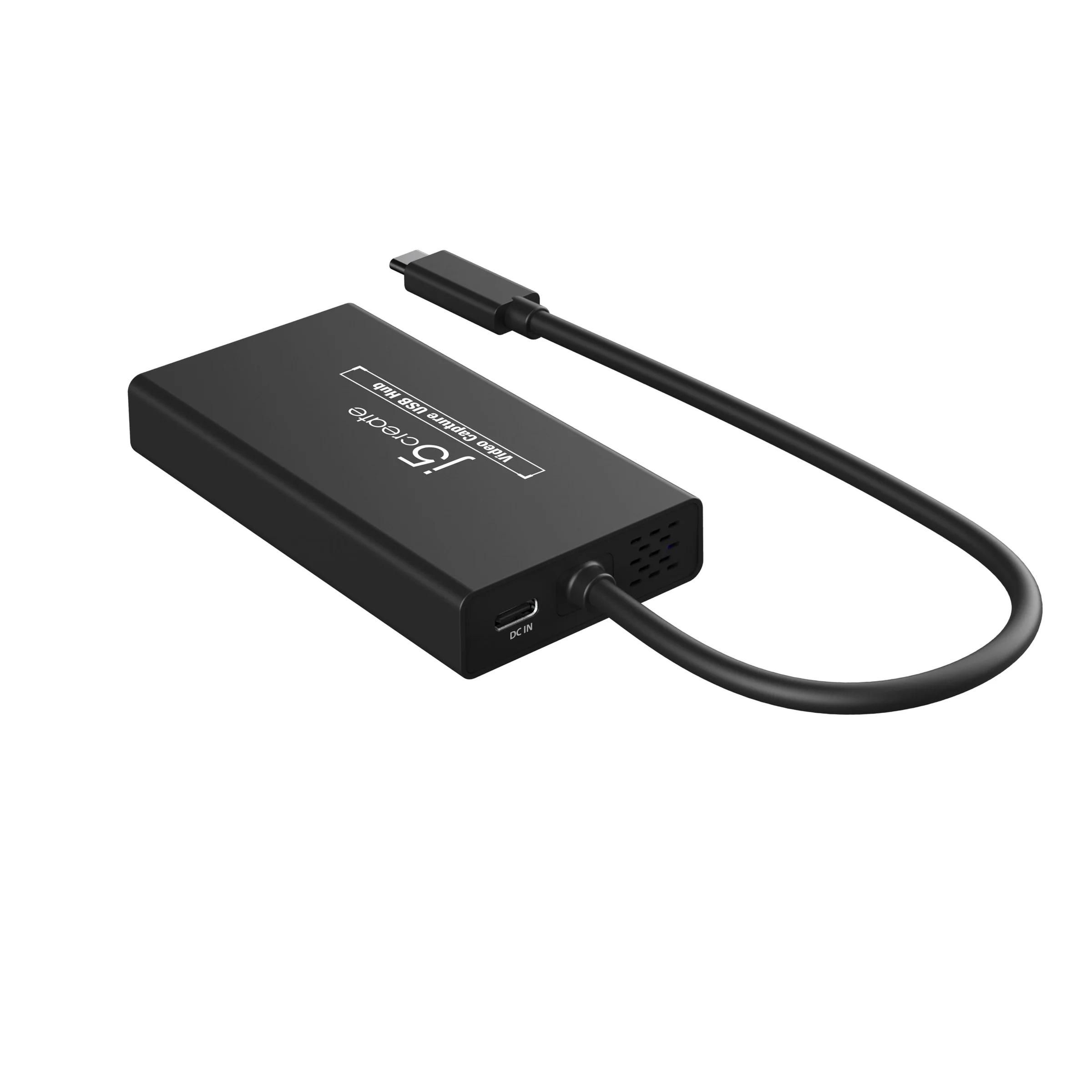

The Video Capture USB Hub is a dual-purpose device that combines an HDMI capture card with a USB-C hub.
With the 1080p video capture and 4K USB-C display, as well as Power Delivery 3.0, you can stream in UHD
without interruptions while charging your connected device. It also includes two SuperSpeed USB™ 5Gbps
ports for further peripheral connectivity. The compact and lightweight design makes this video capture
hub perfect for mobile streaming. When not used for streaming, it acts as a standard USB-C® hub, allowing
you to add two additional USB™ peripherals and a 4K HDMI™ display. It also supports upstream charging to
keep your laptop powered while in use.

UVC Capture:
        HDMI to USB-C with 60W Power Delivery
        Power Delivery 3.0 lets you stream live without interruption
        Ultra-low latency stream through USB-C 3.2 connection
        3.5 mm audio jack allows you to connect headphones or speakers
        2 x SuperSpeed USB™ 5Gbps ports to connect additional peripherals
        UVC standard - No driver installation required
        Field production made easy with its compact size
USB-C Hub with 4K HDMI:
        Easily add an HDMI video output with resolutions up to 4K @ 30 Hz
        USB-C Power Delivery provides up to 60W pass-through charging to the connected devices
        2 x USB Type-A ports provide up to 5Gbps transfer speed
        3.5 mm audio jack allows you to connect headphones or speakers
        No driver installation required for Windows or macOS


host connector:  1 - USB-C 3.2 Female
ports:  1 - USB-C PD 3.0
        1 - HDMI Input
        1 - 4K HDMI Output
        1 - 3.5 mm audio jack
        2 - USB Type-A (5Gbps)
video input:  1 - HDMI Female
video output:  1 - HDMI Female
audio channel:  2.1 via HDMI
compressions:  USB 2.0: MJPEG
max display refresh rate:  30 Hz
max display resolution:  HDMI In: 3840 x 2160
                         USB-C display: 3840 x 2160
                         Capture/Record: 1920 x 1080
input current:  3A
input voltage:  20V
output current:  3A
output voltage:  20V
power delivery:  Up to 60W via USB-C
