Description

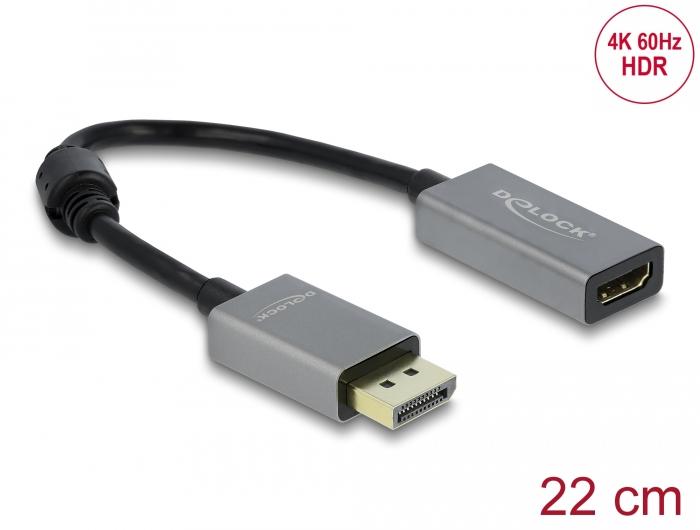

This adapter by Delock enables the connection of an HDMI monitor to the system via a free DisplayPort
interface. The adapter supports a resolution up to 4K Ultra HD at 60 Hz and is backward compatible to
Full-HD 1080p.

Connectors:
1 x DisplayPort male >
1 x HDMI-A female
Chipset: Parade PS186
DisplayPort 1.4 and High Speed HDMI specification
Active converter, for graphics cards with DP and DP++ output
Signal direction: DisplayPort input > HDMI output
Cable gauge:
32 AWG data line
28 AWG power line
Cable diameter: ca. 5 mm
Connectors: gold-plated
Metal housing
Transmission of audio and video signals
Data transfer rate up to 18 Gbps
Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
Supports HDR
Supports HDCP 1.4 and 2.3
1 x ferrite core
Cable length without connectors: ca. 20 cm
Colour: grey / black
