Description

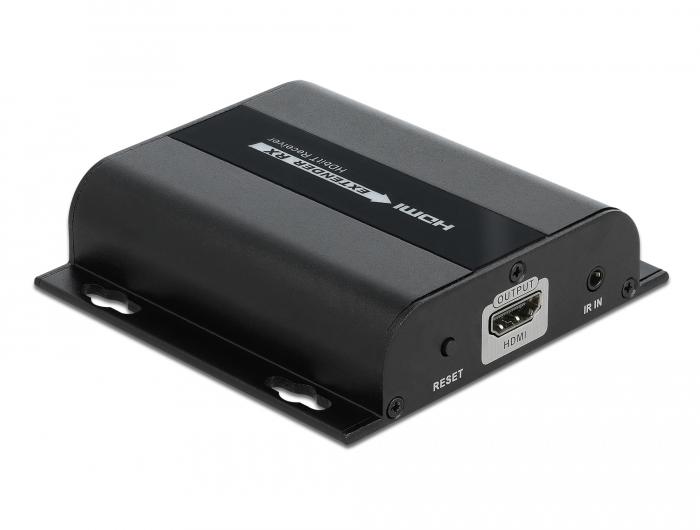

This video extender system by Delock allows video signals to be transmitted over an IP network.
The transmitter and receiver can be connected with a network cable of up to 100 m. Alternatively
both devices can be connected via a switch, the distance between the source and the display device
can then be 200 m.

Connectors:
1 x RJ45 jack
1 x HDMI-A 19 pin female
1 x 3.5 mm 3 pin stereo jack female (IR)
1 x DC 5.5 x 2.1 mm female
Transmission of audio and video signals
Transmission of IR signals 20 - 60 kHz
Supported resolution: 480i / 480p / 576i / 576p / 720p / 1080i / 1080p
Supports EDID und HDCP
Supports RTP Multicast
Supports One-to-one and One-to-many connections
Latency: ca. 400 ms
Power consumption: max. 3.5 W
Robust metal housing
Wallmount option
Dimensions (LxWxH): ca. 97 x 94 x 24 mm
