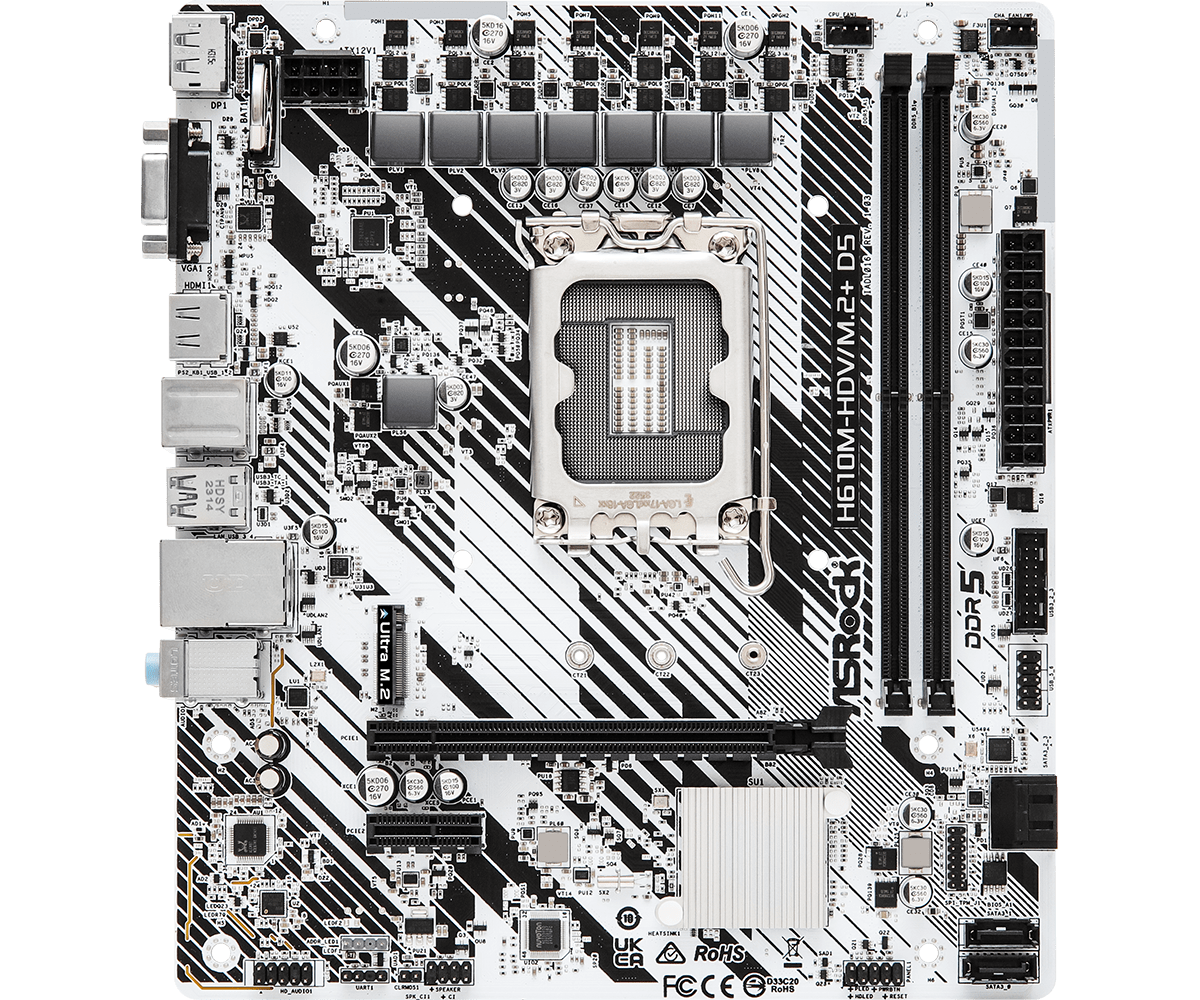

Motherboard ASRock H610M-HDV/M.2+ D5 LGA1700
Ref. number: ASR-MB-H610M-HDV-M2-D5
Price: 154.33 BGN
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | H610M-HDV/M.2+ D5 |
| Barcode | 4710483943478 |
| CPU Socket |
1700
|
| Chipset |
Intel H610
|
| CPU supports |
12th Generation Intel
13th Generation Intel
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
96 GB
|
| Number of Memory Slots |
2
|
| Frequency Memory |
5600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
|
| Integrated LAN |
Gigabit LAN 10/100/1000 Mb/s
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4
|
| Raid support | |
| Power Connector |
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
|
| Connectors |
1 x VGA
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
|
| USB Ports |
1 x USB 3.2 Gen 1
4 x USB 2.0
1 x USB 3.2 Gen1 Type-C
|
| Dimension |
Micro ATX - 22.0 x 19.3 cm
|
| Other |
Description
Motherboard ASRock H610M-HDV/M.2+ D5, LGA1700, DDR5, mATX
