Description

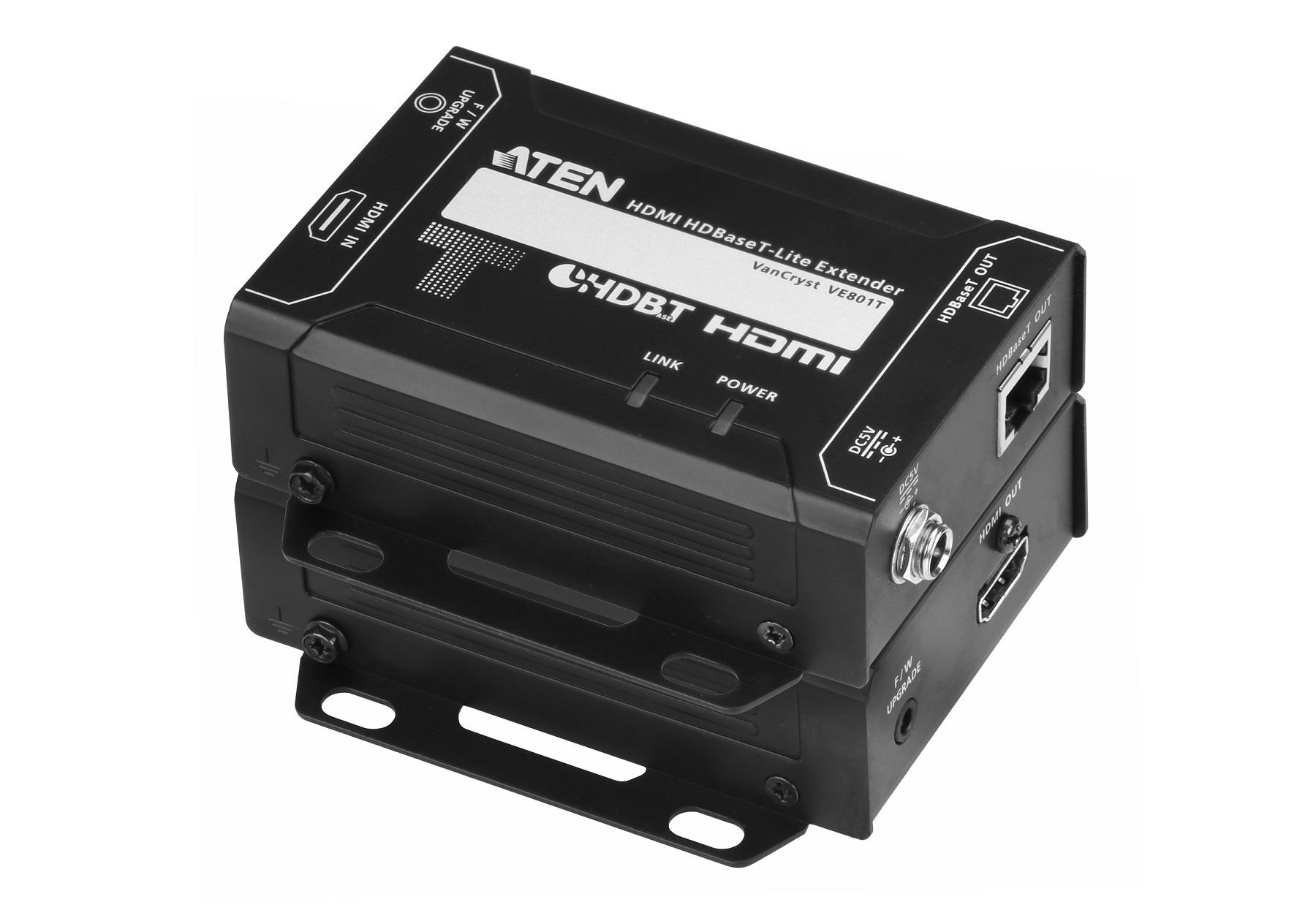

The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one
Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby
Digital 5.1, DTS HD audio and it is HDCP compatible.

Max. Data Rate:  10.2Gbps (3.4Gbps per lane)
Compliance:  HDMI (3D, Deep Color, 4K)
Max. Resolutions / Distance:  Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
                              1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
Audio:  1 x HDMI Type A Female (Black)
Power:  1 x DC Jack (Black) with locking
Unit To Unit:  1 x RJ-45 Female
