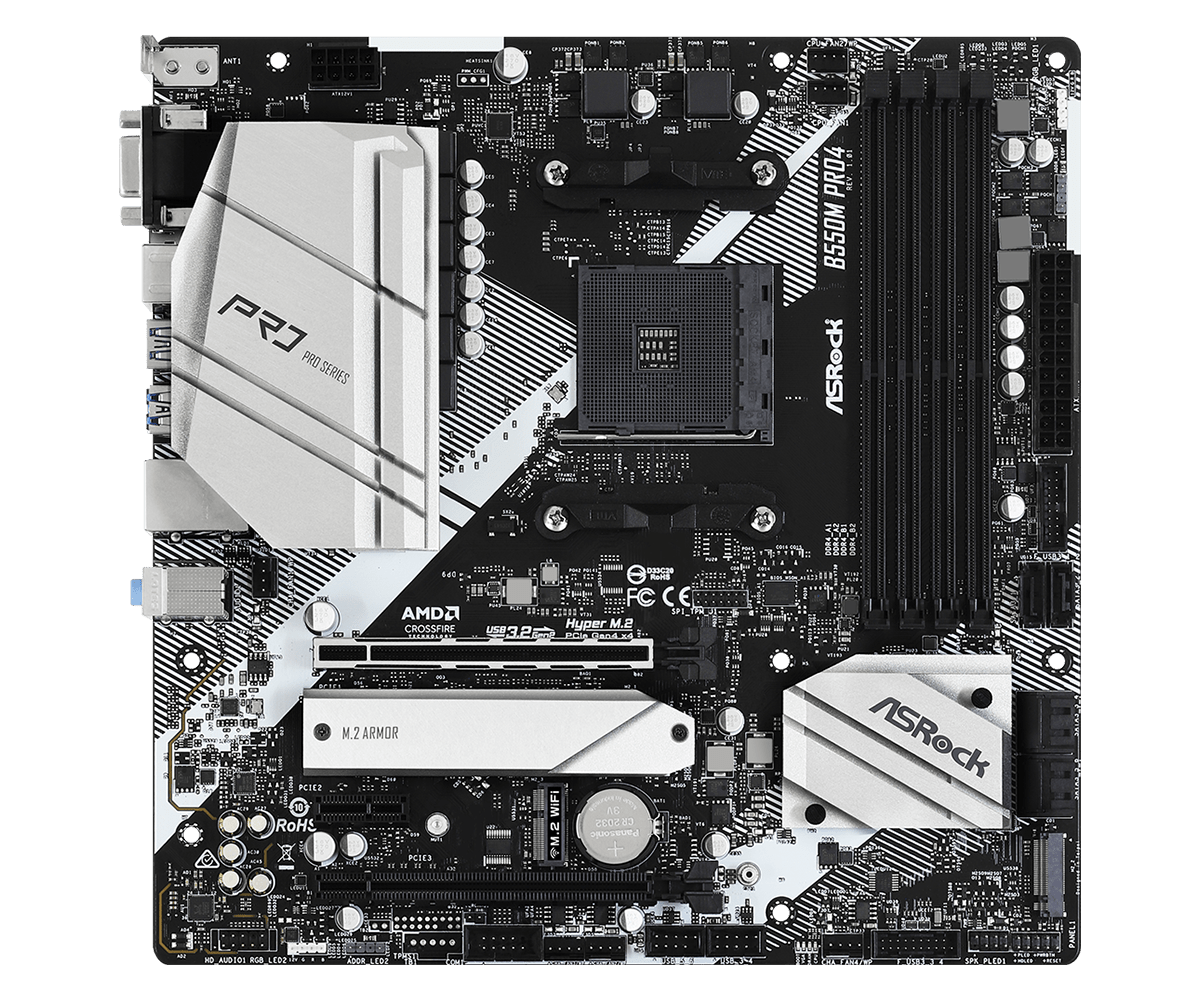

Motherboard ASRock B550M Pro4, AM4
Ref. number: ASR-MB-B550M-PRO4
Price: 218.51 BGN
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B550M-PRO4 |
| Barcode | 4710483931598 |
| CPU Socket |
AM4
|
| Chipset |
AMD B550
|
| CPU supports |
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
4533(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek® ALC1200
|
| Integrated LAN |
1 x Realtek® Dragon RTL8125BG 2.5G LAN
|
| Integrated Wi-Fi | |
| PCI-E x16 |
1 x PCIe 4.0/3.0 x16
1 x PCIe 3.0/2.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
6 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4 SSD Only)
1 x M.2 Socket 3, with M key, type 2280 storage devices support (both SATA & PCIE mode)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24-pin;1 x 8-pin;1 x 4-pin
|
| Connectors |
1 x VGA
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
|
| USB Ports |
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen2 Type-C
2 x USB 2.0
|
| Dimension | |
| Other |
Description
Motherboard ASRock B550M Pro4, AM4, 4xDDR4
- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
- 8 Power Phase Design, Digi Power
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- AMD CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
- Realtek Gigabit LAN
