Description

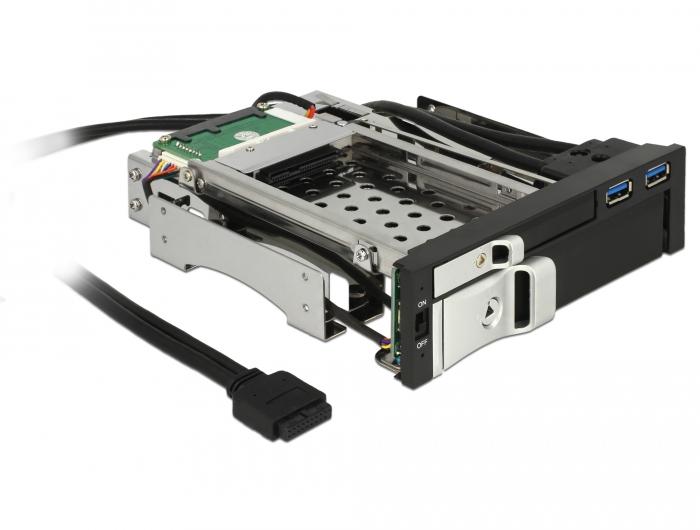

This mobile rack can be installed into a free 5.25″ bay of your desktop PC. The frame enables you to
insert a 2.5″ SATA HDD as well as a 3.5″ SATA HDD and to exchange it anytime. Furthermore the mobile
rack provides two USB 3.0 ports in order to connect additional USB devices.

• With vibration protection to protect the HDD against shock
• Stabilisation of HDD by mechanical spring
• Control board for automatic switch-off of each HDD when opening the flap

Fits into a 5.25″ bay
Connectors:
front side:
1 x 2.5″ SATA HDD bay
1 x 3.5″ SATA HDD bay
2 x USB 3.0 Type-A female
1 x On / Off switch
back side:
2 x SATA 22 pin plug
1 x 19 pin USB 3.0 pin header female
Suitable for all 2.5″ SATA HDD and 3.5″ SATA HDD with up to 6 Gb/s
Suitable for 2.5″ SATA HDD / SSD with HDD height up to 9.5 mm
Data transfer rate up to 6 Gb/s
Mobile rack with key lock
2 x Status LED
Hot Swap
OS independent, no driver installation necessary
