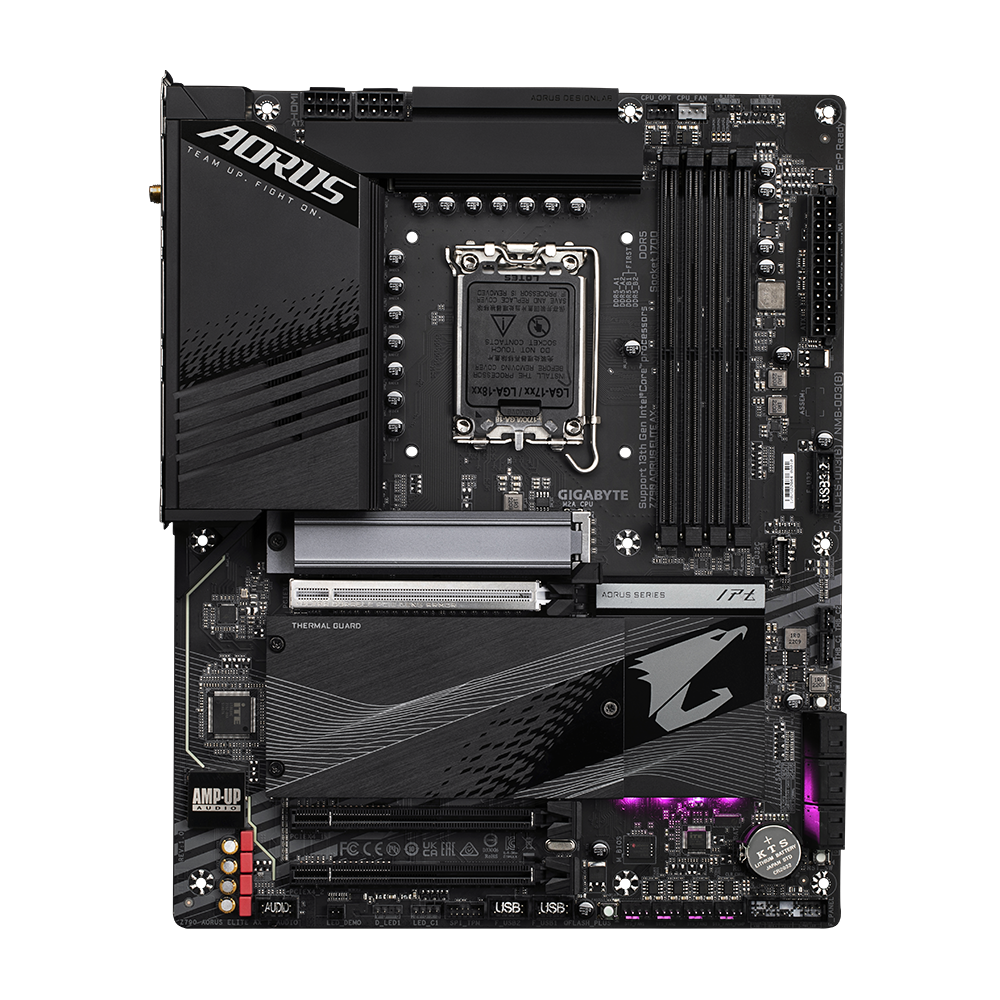

Motherboard GIGABYTE Z790 AORUS ELITE AX LGA 1700
Ref. number: GA-MB-Z790-AORUS-ELITE-AX
Price: 570.66 BGN
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | Z790 AORUS ELITE AX |
| Barcode | 4719331849467 |
| CPU Socket |
1700
|
| Chipset |
Intel Z790
|
| CPU supports |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
7600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek AUDIO CODEC
|
| Integrated LAN |
Realtek 2.5Gb Ethernet
|
| Integrated Wi-Fi |
Intel® Wi-Fi 6E AX211
|
| PCI-E x16 |
1 x PCIe 5.0 x16 slot
2 x PCIe 4.0 x16 slots (support x4 mode)
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
6 x SATA 6Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
2 x SMA antenna connectors
|
| USB Ports |
3 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2 Type-A
4 x USB 2.0
1 x USB Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
Description
- Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
- Unparalleled Performance：Twin 16*+2+１ Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：4*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
