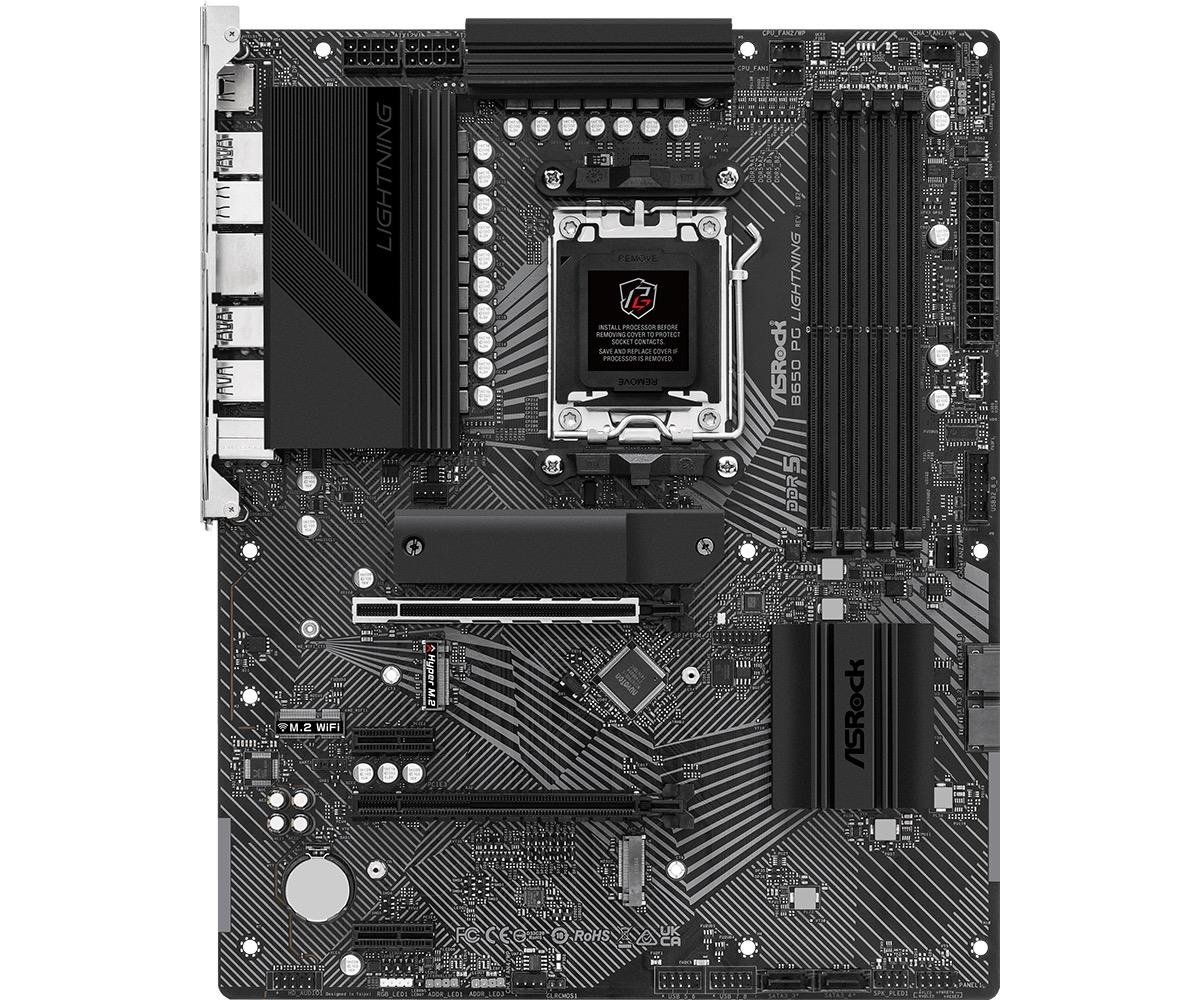

Motherboard ASROCK B650 PG Lightning, Socket AM5, ATX
Ref. number: ASR-MB-B650-PG-LIGHTNING
Price: 350.18 BGN
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B650 PG LIGHTNING |
| Barcode | 4710483940910 |
| CPU Socket |
AM5
|
| Chipset |
AMD B650
|
| CPU supports |
AM5 Supports AMD Ryzen™ 7000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
6400(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
1 x Realtek® Dragon RTL8125BG 2.5G LAN
|
| Integrated Wi-Fi | |
| PCI-E x16 |
2 x PCIe 4.0/3.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1x Blazing M.2 Socket, 1x Hyper M.2, 1x M.2, 1x M.2 for 2230 Wifi/BT Module
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24-pin;1 x 8-pin;1 x 4-pin
|
| Connectors |
1 x HDMI port
1 x RJ-45
1 x HD Audio Jacks
1 x BIOS Flashback Button
|
| USB Ports |
1 x USB 3.2 Gen2 Type-C
7 x USB 3.2 Gen 1
|
| Dimension | |
| Other |
Description
Supports AMD Ryzen™ 7000 Series Processors
14+2+1 Phase Power Design, SPS
4 x DDR5 DIMMs, supports up to 6200+(OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3), 4 SATA3
1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen2 Type-C (Front), 9 USB 3.2 Gen1 (7 Rear, 2 Front), 8 USB 2.0 (4 Rear, 4 Front)
Realtek 2.5G LAN
