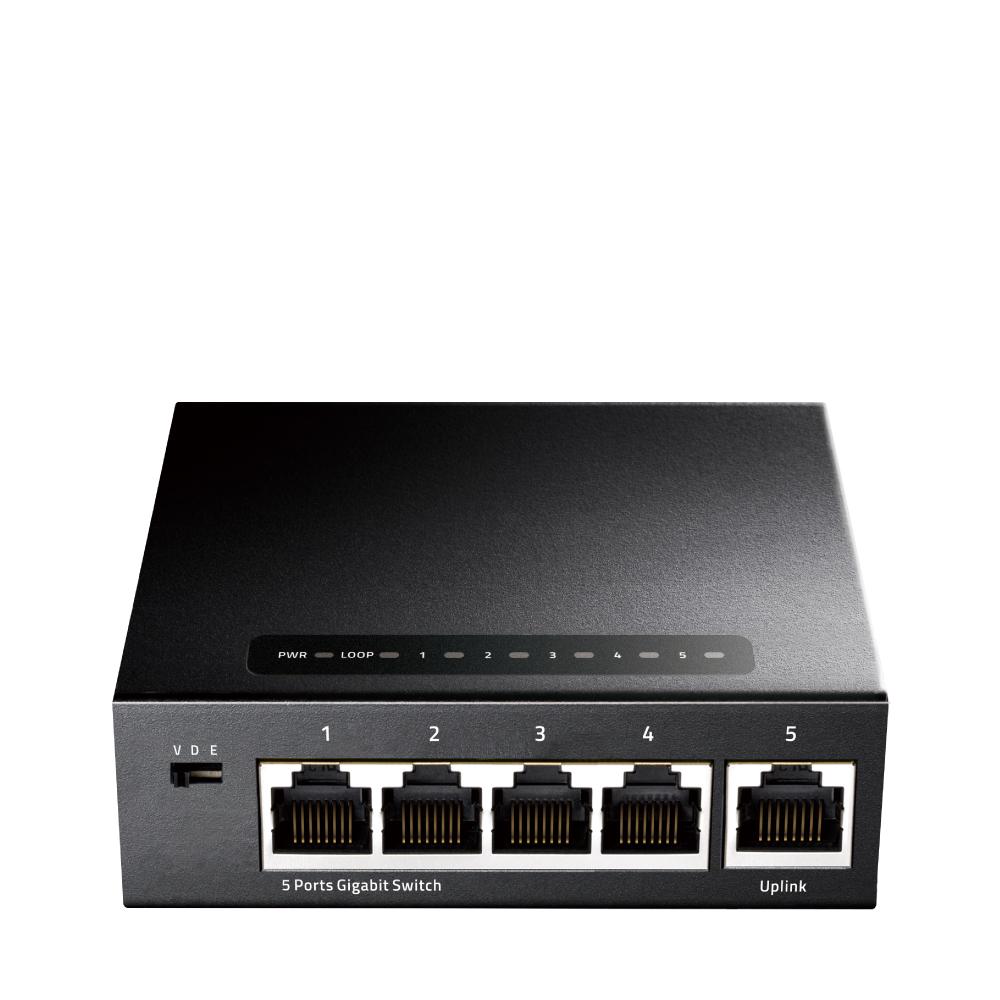

Switch Cudy 5-Port Gigabit Desktop Switch, Model: GS105

Ref. number: CUDY-SWITCH-GS105
Price: 32.39 BGN
Specifications
Manufacturer Cudy
Warranty 24 months
Product code GS105
Barcode 6971690790431
Ports
5 x RJ-45
Standard
IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x
MAC Address
Protocols
Operating temperature
0 to 50°C
Power Requirement
DC 5V
Buffer Memory
1M
LED Indicators
PWR(Power indicator); Link(Network Link); LOOP(Loop alarm)
Rack-mount
PoE
Dimension (mm)
100 x 70 x 26 mm

Description

● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
● 5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
● Store-and-Forward switching method
● Supports 16K MAC address auto-learning and auto-agin

Standard configurati:  5 10/100/1000M RJ-45 adaptive ports
Network protocol:  IEEE802.3 (10Base-T)
                   IEEE802.3u (100Base-TX)
                   IEEE802.3ab (1000Base-TX)
                   IEEE802.3x (Flow control)
Network Medium:  10Base-T : Cat3,4,5 or above UTP(≤100m)
                 100Base-TX : Cat5  or above UTP(≤100m)
                 1000Base-TX : Cat5 or aboveUTP(≤100m)
LED Indicators:  PWR（Power indicator）、Link（Network Link）、LOOP（Loop alarm
Switching Capacity:  10Gbps
Throughput:  7.44Mpps
Power Voltage:  Power Input Voltage ：AC 100-240 V
                Switch Input Voltage:：DC 5V
