Medical Monitor EIZO RadiForce MS236WT 2MP, Color, Touch
Specifications
| Manufacturer | EIZO |
| Warranty | 60 months |
| Product code | MS236WT |
| Barcode | 4995047050919 |
| For |
Professional
|
| Screen size |
23 inch
|
| Panel Type |
IPS
|
| Technology |
LED/IPS
|
| Resolution |
1600 x 1200
|
| Aspect Ratio |
16:9
|
| Pixel Pitch |
0.26 mm
|
| View Angles |
178°/178°
|
| Response Time |
11 ms
|
| Signal Frequency | |
| Brightness |
260cd/m2
|
| Contrast(Typical) |
1000:1
|
| Active Contrast |
No
|
| Display Colors |
1.07 billion
|
| Special functions |
No
|
| Video Ports |
D-Sub
DVI
DisplayPort
|
| USB Ports |
USB 2.0
|
| Built-in Speakers | |
| Pivot | |
| Tilt | |
| Dimension |
556.7 x 143.9-353.9 x 216.3 - 401.3 mm
|
| Swivel | |
| Height adjust range | |
| VESA Mounting |
100 x 100 mm
|
| Touch sensor | |
| Number of touch points | |
| Interface for connection | |
| Response Time (Touch System) | |
| Consumption |
19 W
|
| Energy efficiency |
Class B
|
| Color |
Black
|
Description

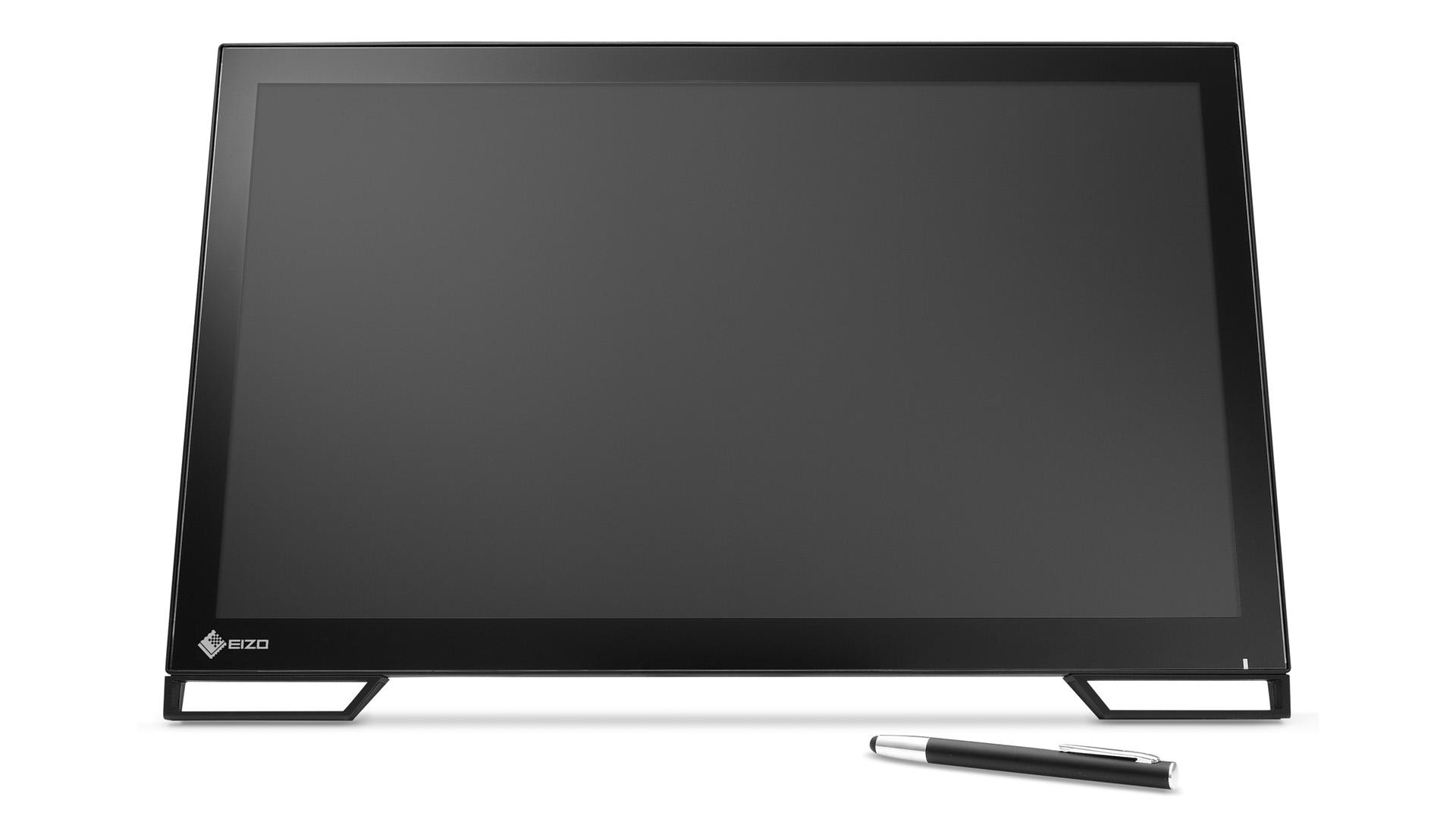

The EIZO MS236WT offers first-class image quality with a 16:9 aspect ratio, as well as modern multi-touch operation for di- gital image distribution. The device ships with a preset DICOM tone curve. Hence it displays the graytones of radiological im- ages correctly. The advantage of this is that the screen display is much better suited to clinical review than images shown on conventional computer monitors. Thanks to IPS-LCD it also of- fers wide viewing angles. This makes the picture clear and dis- tinct from various directions of view. The MS236WT detects up to 10 touches simultaneously and permits smooth and accurate stylus input. It ignores erroneous input, such as from the ball of the hand.
