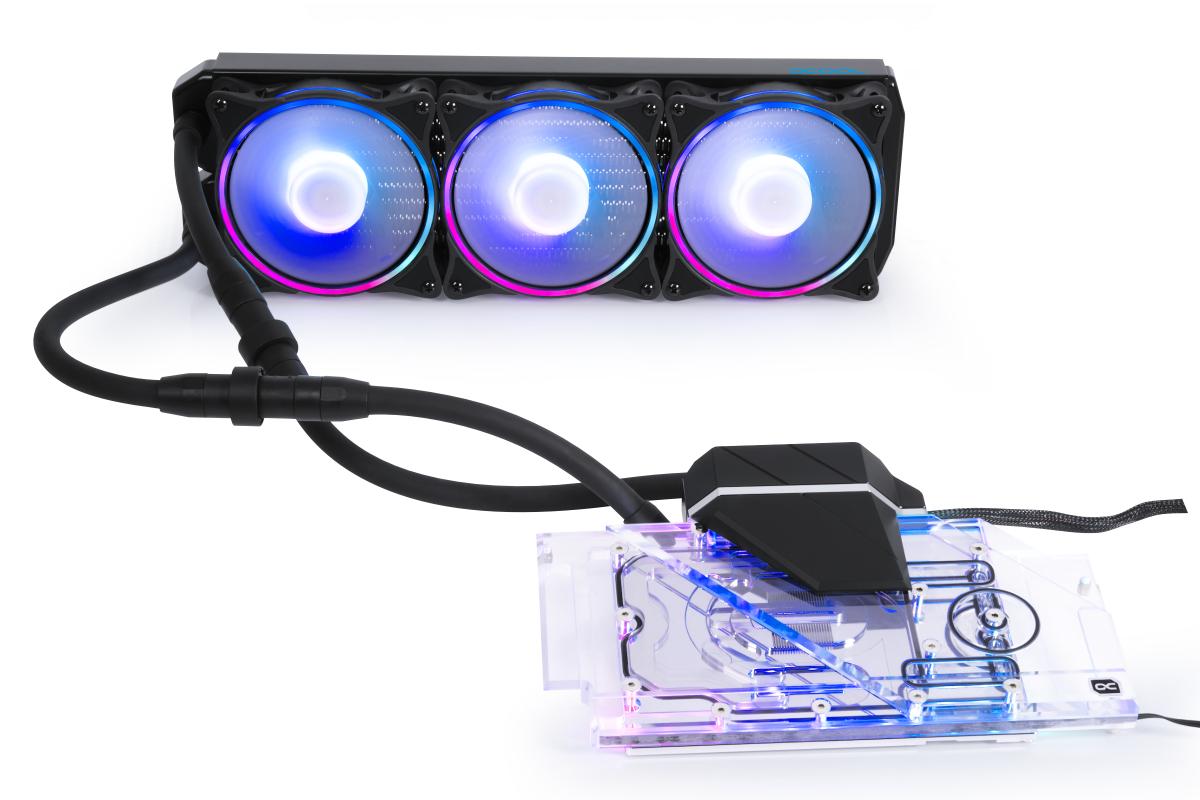

GPU AIO System Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 TUF with Backplate
Ref. number: AC-1020897
Price: 543.28 BGN
Specifications
| Manufacturer | Alphacool |
| Warranty | 24 months |
| Product code | 1020897 |
| Barcode | 4250197144193 |
| Cooling type |
Liquid
Air
Hybrid
AIO
|
| Ventilator dimension |
3x 120 x 120 x 25 mm
|
| Rotation speed |
Pump speed: 2600 rpm (+/- 10%)
Fan speed: 0 - 2500 RPM
|
| Cooler dimension (W x D x H) |
Radiator: 395 x 124 x 30mm (+/- 3%)
Cooler and Pump: 238 x 142,1 x 46 mm
|
| Video chipset |
NVIDIA GeForce RTX
|
| Compatible video cards |
RTX 3080
RTX 3080 Ti
RTX 3090
|
| Weight |
4.98 kg
|
Description
GPU AIO System Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 TUF with Backplate
Compatibility list:
- ASUS TUF Gaming GeForce RTX 3080 Ti 12GB OC
- ASUS TUF Gaming GeForce RTX 3080 OC, TUF-RTX3080-O10G-GAMING
- ASUS TUF Gaming GeForce RTX 3080, TUF-RTX3080-10G-GAMING
- ASUS TUF Gaming GeForce RTX 3090, TUF-RTX3090-24G-GAMING
- ASUS TUF Gaming GeForce RTX 3090 OC, TUF-RTX3090-O24G-GAMING
| Technical data radiator | |
| L x W x H | 395 x 124 x 30mm (+/- 3%) |
| Material cooling fins, chambers & cooling channels | Copper |
| Material threads | Brass |
| Material outer housing | stainless steel |
| G 1/4“ threads | 2 x for tubes (+ 1x Fillport G1/4“) |
| For fan size | 120 mm |
| Possible fan assembly | 3 x one-sided / 6 x both-sided |
| Technical data cooler and pump | |
| L x W x H | 238 x 142,1 x 46 mm |
| Material cooler bottom | Nickel plated copper |
| Material cooler top | PMMA |
| Threads | 2 x G1/4“ |
| Pump type | DC-LT 2 |
| Pump speed | 2600 rpm (+/- 10%) |
| Head of delivery | 0,95 m |
| Maximum flow rate | 75 L/h |
| Technical data fan | |
| Speed | 0 - 2500 RPM |
| Static pressure | 3,17 mm H2O |
| Air flow rate | 119,8 m³/h |
| Bearings | Sleeve bearing |
| Fan connector | 4-Pin PWM |
| Connection Digital aRGB | 3-Pin JST + 3-Pin 5V |
| Dimensions | 120 x 120 x 25 mm |
Note:
- Attention: The use of the NVLink is not possible with this AIO!
