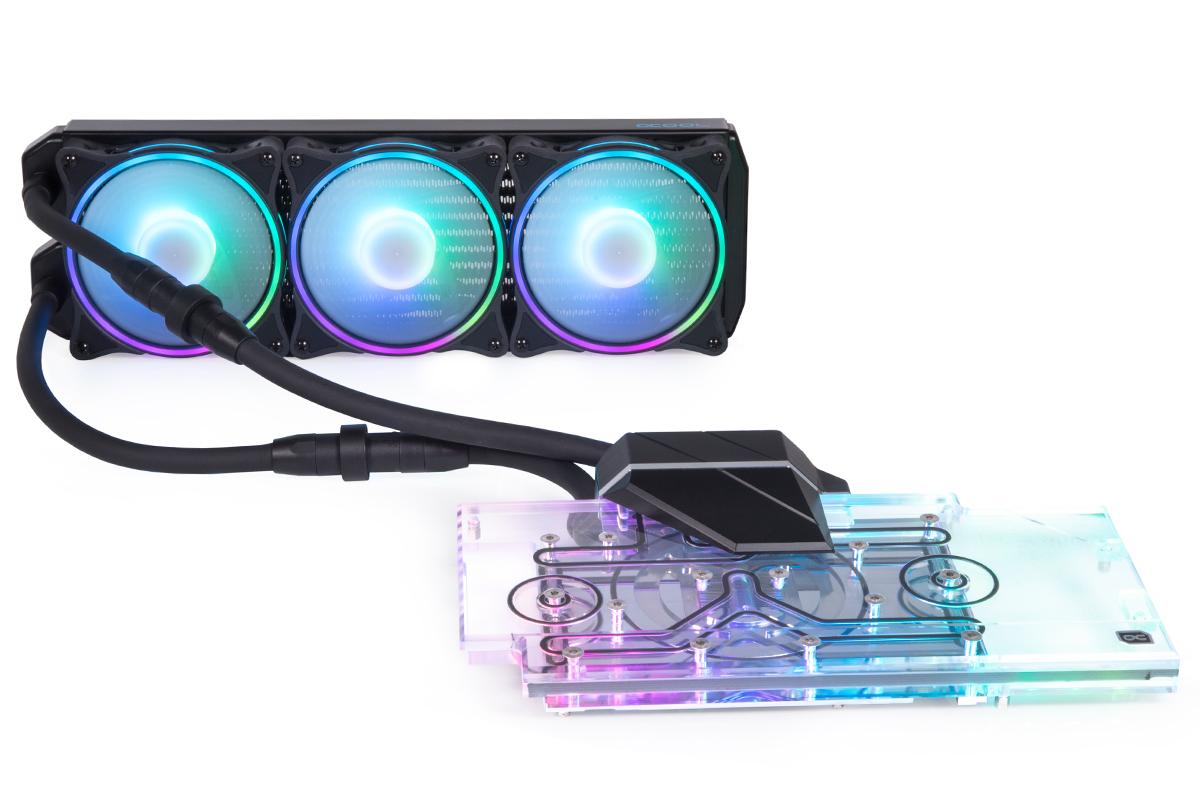

GPU AIO System Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 ROG Strix with Backplate
Specifications
| Manufacturer | Alphacool |
| Warranty | 24 months |
| Product code | 1020896 |
| Barcode | 4250197144186 |
| Cooling type |
Liquid
Air
Hybrid
AIO
|
| Ventilator dimension |
3x 120 x 120 x 25 mm
|
| Rotation speed |
Pump speed: 2600 rpm (+/- 10%)
Fan speed: 0 - 2500 RPM
|
| Cooler dimension (W x D x H) |
Radiator: 395 x 124 x 30mm (+/- 3%)
Cooler and Pump: 162,5 x 266 x 46 mm
|
| Video chipset |
NVIDIA GeForce RTX
|
| Compatible video cards |
RTX 3080
RTX 3080 Ti
RTX 3090
|
| Weight |
5.24 kg
|
Description
GPU AIO System Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 ROG Strix with Backplate
Compatibility list:
RTX 3080
- ASUS ROG Strix GeForce RTX 3080, 10GB GDDR6X, 2x HDMI, 3x DP
- ASUS ROG Strix GeForce RTX 3080 OC, 10GB GDDR6X, 2x HDMI, 3x DP
RTX 3080 Ti
- ASUS GeForce RTX 3080 Ti STRIX LC Liquid Cooled, 12GB GDDR6X, 2x HDMI, 3x DP
- ASUS ROG Strix GeForce RTX 3080 Ti Gaming, 12GB GDDR6X, 2x HDMI, 3x DP
- ASUS ROG Strix GeForce RTX 3080 Ti Gaming OC, 12GB GDDR6X, 2x HDMI, 3x DP
RTX 3090
- ASUS ROG Strix GeForce RTX 3090 OC, 24GB GDDR6X, 2x HDMI, 3x DP
- ASUS ROG Strix GeForce RTX 3090, 24GB GDDR6X, 2x HDMI, 3x DP
| Technical data cooler and pump | |
| L x W x H | 162,5 x 266 x 46 mm |
| Material cooler bottom | Nickel plated copper |
| Material cooler top | PMMA |
| Threads | 2 x G1/4“ |
| Pump type | DC-LT 2 |
| Pump speed | 2600 rpm (+/- 10%) |
| Head of delivery | 0,95 m |
| Technical radiator | |
| L x W x H | 395 x 124 x 30mm (+/- 3%) |
| Material fins, chambers & channels | copper |
| Material threads | brass |
| Material outer housing | stainless steel |
| G 1/4“ threads | 2 x for tubes (+ 1x Fillport G1/4“) |
| For fan size | 120 mm |
| Possible fan assembly | 3 x one-sided / 6 x both-sided |
| Technical data fans | |
| Speed | 0 - 2500 RPM |
| Static pressure | 3,17 mm H2O |
| Air flow rate | 119,8 m³/h |
| Fan connector | 4-Pin PWM |
| Connection Digital aRGB | 3-Pin JST + 3-Pin 5V |
| Dimensions | 120 x 120 x 25 mm |
| Max working temperature | 60 °C |
Note:
- This cooler includes a backplate
- Attention: The use of the NVLink is not possible with this AIO!
