Description

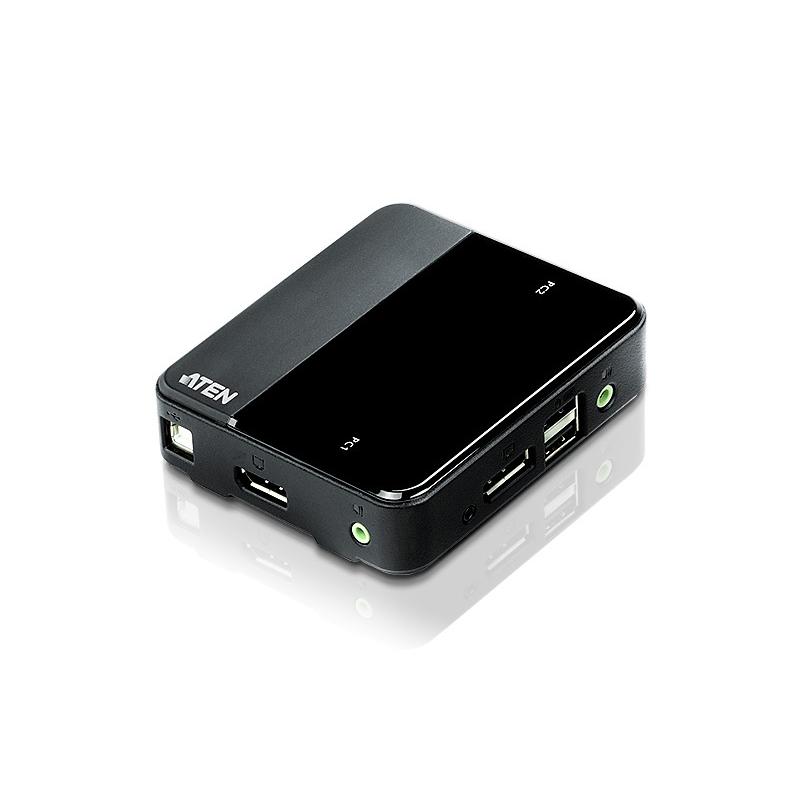

ATEN CS782DP meets the modern requirements for multimedia content, providing support for 4K video resolutions.
The device controls from one console (USB mouse / keyboard, DisplayPort monitor and audio ports) two multimedia computers,
providing convenient options for switching between them - with keyboard shortcuts, mouse, or a special remote port selector.
For extra convenience and space saving, the design of the case is as simple and compact as possible.
The switch is a perfect choice for graphic designers, gamers or video editors who need a quality solution
to control two multimedia computers from one place

One DisplayPort video console manages 2 USB computers
Full DisplayPort 1.2 compatibility
Switch via remote port selector, keyboard shortcuts and USB mouse *
Excellent video quality - 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
Multiplatform support - Windows, Mac, Sun, Linux
HDCP compatibility
Supports MST (Multi-Stream Transport) **, allowing many monitors to be used via a single DisplayPort connector
Supports DisplayPort Dual - mode (DP ++) *** for direct output of single-link HDMI and / or DVI signals via externally powered DisplayPort-to-HDMI / DVI DP ++ adapter
Compatible with widescreen LCD monitors
Power on detection - if one of the computers is turned off, the CS782DP will automatically switch to another
Supports sound - full bass response function provides a rich experience for 2.1 channel surround sound systems
Supports HD Audio **** via DisplayPort playback
Independent switching of KVM and Audio focus **** for convenient operation
Supports multimedia keyboards
Supports wireless keyboards and mice
Mouse port console emulation / bypass option, supports most mouse drivers and multifunction mice
Mac / Sun keyboard support and emulation *****
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing ******
Bus power supply
Supports firmware update

Console ports: 2 x USB Type A Female 1 x DisplayPort Female (Black) 1 x 3.5mm Audio Jack Female (Green)
KVM (Computer) ports: 2 x USB Type B Female 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green)
