Description

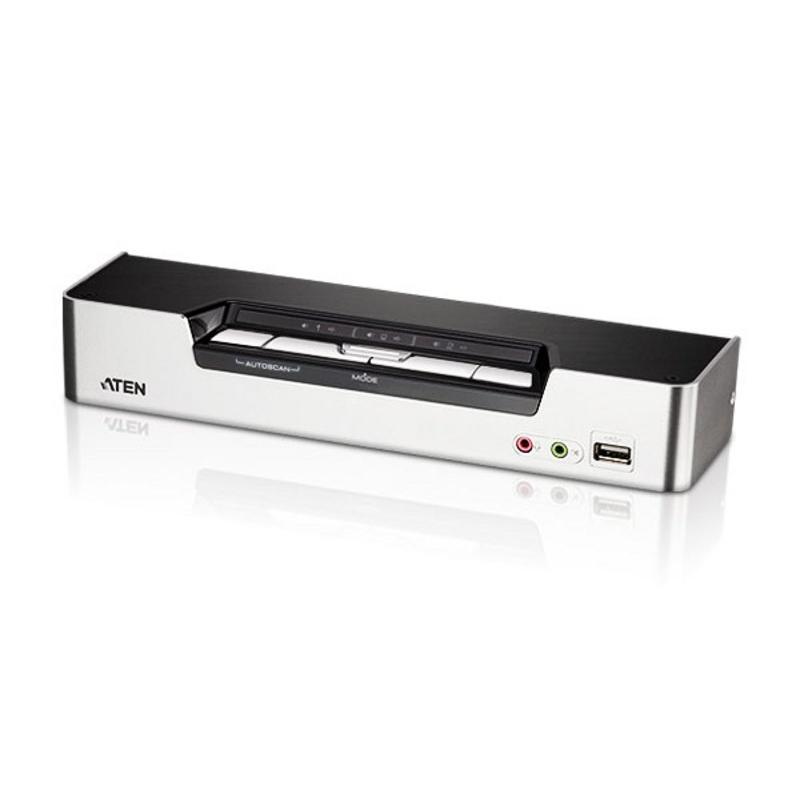

With its unique design and innovative features, the CubiQ ™ CS1794 USB 2.0 HDMI KVMP ™ switch provides style and
functionality for modern multimedia SOHO installations.
Combines a 4-port switch with a 2-port USB 2.0 hub and provides an easy way to switch between 4 computers
with HDMI video (or other HDMI-compatible devices such as game consoles) and share USB peripherals between them.
Switching is done with buttons on the front panel or keyboard shortcuts.
CS1794 supports Video DynaSync ™ technology providing optimized HDMI resolution and has integrated support
for digital sound, allowing the user to enjoy high-definition audio signal, incl. Dolby True HD and DTS HD Master Audio.
The switch is an excellent choice for simultaneous operation with multiple multimedia workstations.

4-port HDMI USB 2.0 KVMP ™ switch
1 USB console controls 4 HDMI computers and 2 additional USB devices
2-port USB 2.0 built-in hub; fully compatible with the USB 2.0 specifications
Independent switching of KVM focus, USB peripherals and audio focus via front panel buttons and keyboard shortcuts
Supports HDMI digital monitors, HDCP compatibility
Dolby True HD and DTS HD Master Audio support
Excellent video quality - supports 480i, 480p, 720p, 1080i and 1080p (HDTV) / 1920 x 1200 (DVI)
Power on detection - if one of the computers is turned off, CS1794 will automatically switch to the next available one
Supports widescreen resolutions
Multi-platform support - Windows, Linux, and Mac
Mouse port console emulation / bypass option, supports most mouse drivers and multifunction mice
Video DynaSync ™ - stores EDID (Extended Display Identification Data) information on the console monitor to optimize the resolution
Complete keyboard emulation for a smooth restart
Mac keyboard support and emulation *
Auto Scan mode for monitoring all computers and HDMI devices
Supports firmware update * 1. PC keyboard shortcuts emulate Mac keyboards
2. Mac keyboards only work with their own computers
