Description

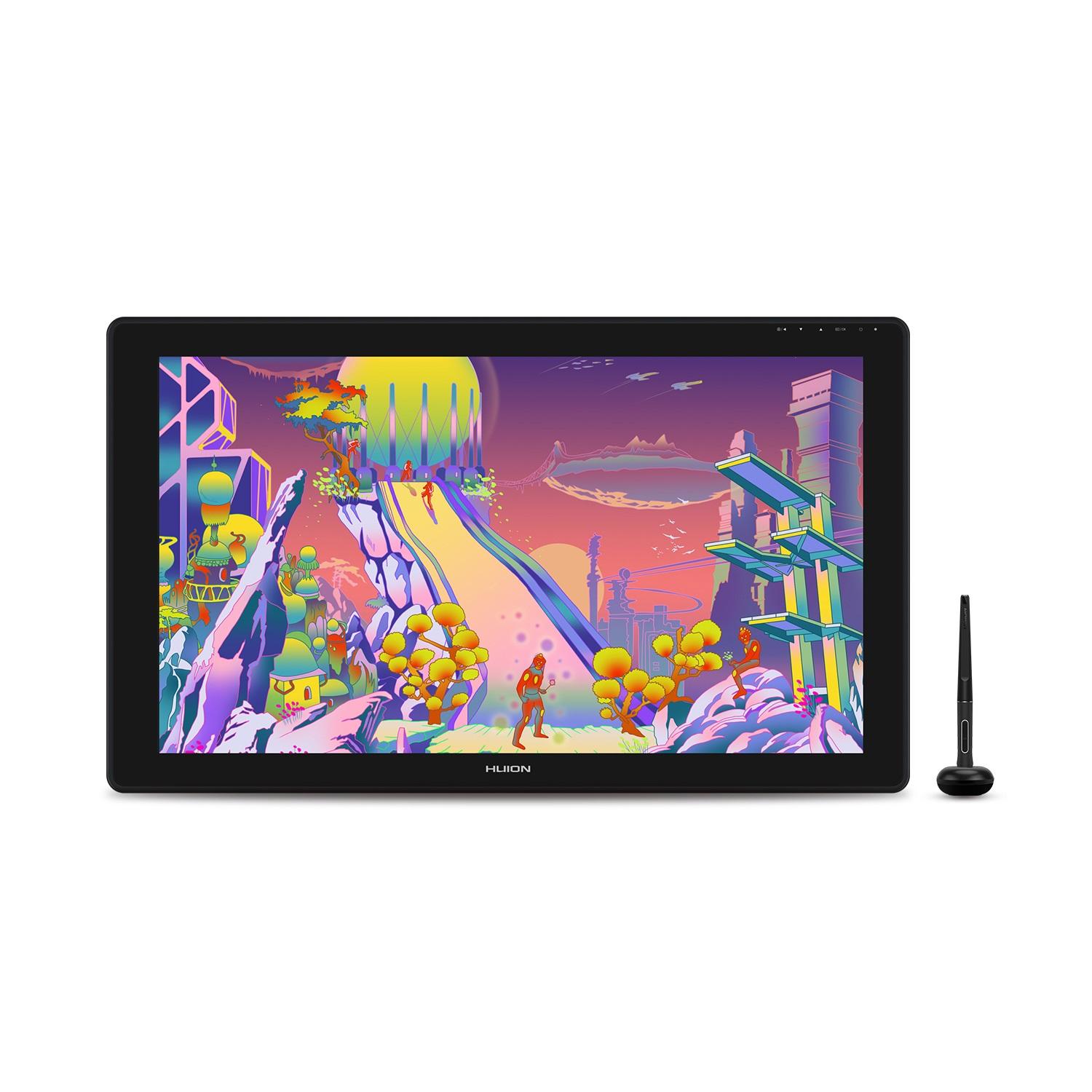

Kamvas 24 Plus
SIMPLE, BUT POWERFUL A Professional Design Studio for You.

Marvelous display to ignite your creativity
    23.8inch screen
    2.5K resolution
    Minimal parallax
    178° viewing angle
    140% sRGB color gamut
    16.7M(8bit) display colors
    1200:1 contrast ratio
    QLED technology

A new level of clarity.
With a 23.8inch wide screen, Kamvas 24 Plus not only ensures clear and crisp picture presentation but also prevents interruptedly zooming in or out of the canvas.


See the world and its real colors.
Kamvas 24 Plus that adopts the quantum dot technology boasts an improved color gamut of 140% sRGB, which further enhances the color performance. Additionally, 2.5K QHD resolution enables all colors to be presented lively.
2560 x 1440 Resolution
140% sRGB Gamut
16.7M(8bit) Display Color

Comfortable vision and clear display.
The quantum dot technology helps to increase the color rendering index of Kamvas 24 Plus, making the color display more natural and balanced. The quantum dot technology can also filter out the harmful blue light to protect user's eyes.

View your creation from different angle.
178° wide viewing angle ensures clear and vivid visual effects of your works even when looking at the screen from sideways.

Full lamination, full creation.
With a fully-laminated screen, Kamvas 24 Plus enables a better creation experience with minimized parallax and better accuracy. Additionally, the anti-glare etched glass can not only alleviate the glare but also bring a pen-on-paper drawing experience.

Your creativity can be fully presented.
To bring users more realistic drawing experience, digital pen PW517 that developed based on PenTech3.0 is introduced. With a stable and improved pen nib, the digital pen ensures flexible and natural drawing experience.

Set your imagination free.
Kamvas 24 Plus features 8192 levels of pressure sensitivity and rapid report rate, allowing users to draw lines with different widths and thickness. Your work hence can be more vibrant.

Tilt your pen and feel the flexibility.
Kamvas 24 Plus enables users to tilt the pen at about ±60° to realize various drawing techniques such as shading, sketching or edging.

Ports for more possibilities.
Kamvas 24 Plus features two USB-C ports, one for three-in-one cable and one for USB-C to USB-C cable, allowing users to explore more possibilities via the connection to computer, laptop, and Android phone/ tablet. A USB-A port is also designed for connecting keyboard, USB flash disk, etc.

Accessory to boost productivity.
Users can tilt the stand to find a more comfortable position during creation. Besides, a mini keydial KD100* is recommended to work together with the pen display for better productivity. *Mini KD100 is sold separately.

Strong compatibility.
Kamvas 24 Plus is compatible with Windows, macOS, and Android, as well as most mainstream design and drawing software.

Model GS2402
Panel Size 23.8inch
Resolution 2560 x 1440（16:9）QHD
PPI 123PPI
LCD Type IPS
Active Area 526.85 x 296.35mm
Contrast Ratio (Typical) 1200：1
Brightness 220cd/m2
Response Time 14ms
Viewing Angle 89°/89°(H)/89°/89°(V) (Typ.)(CR＞10)
Gamut 97%NTSC/140% sRGB Quantum dots
Display Color 16.7M(8bit)
Pen Technology Battery-Free Electromagnetic Resonance
Pen Resolution 5080LPI
Pressure Level 8192Levels
Accuracy ±0.5mm（Center）±3mm（Corner）
Sensing Height 10mm
Report Rate 220PPS
Tilt ±60°
Digital Pen PW517
Input Voltage 100-240VAC,50/60Hz
Output Voltage 19V 3A
Video Interface 3-1 USB-C, full featured USB-C
Dimension 604.2 x 358 x 21~28.3mm（Without Stand）
Net Weight 5.6KG
Colour Dark Gray
Adjustable Stand Adjustable Stand 20°~80°
OS Support Windows 7 or later,macOS 10.12 or later,Android(USB3.1 DP1.2 or later)
AG Glass Anti-glare etched glass
Lamination Full Lamination
Working Temp.and Humidity 0 -+40°C 、 20-80%
Storage Temp. and Humidity —20°C~60°C、 10-90%
What's in the box:
Pen Display, Digital Pen, Adjustable Stand ST100A, 3-in-1 Cable,
USB-C to USB-C cable, Power Adapter, AC Cable，Pen Holder
PH05A, Pen Nibs x 10, Pen Nib Clip, Glove, Cleaning Cloth, Quick
Start Guide
