Description

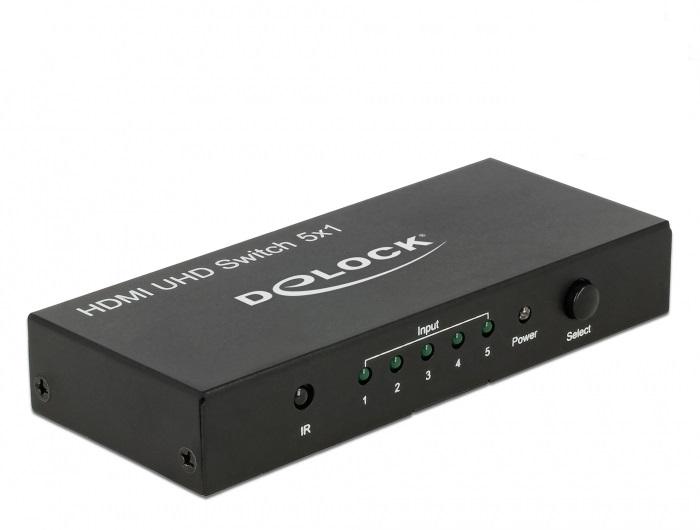

With this Delock HDMI switch up to five HDMI devices can be used with one
HDMI monitor, TV or beamer. With the button on the device or the remote
control you can switch between the HDMI devices.

Specification

• Connectors:
  Input:
    5 x HDMI-A 19 pin female
    1 x DC 5 V power connector
  Output:
    1 x HDMI-A 19 pin female
• HDMI port switching: automatic function, via button or via infrared remote control
• LED indicators for active HDMI port
• High Speed HDMI specification
• Supports 3D displays
• Supports HDCP 1.4 and 2.2
• Supports HDR
• Supports CEC
• Supports a resolution up to 3840 x 2160 @ 60 Hz
  (depending on the system and the connected hardware)
• Video bandwidth up to 600 MHz / 6 Gbps, 18 Gb/s max.
• Power consumption: max. 2.0 W
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 123 x 51 x 20 mm
